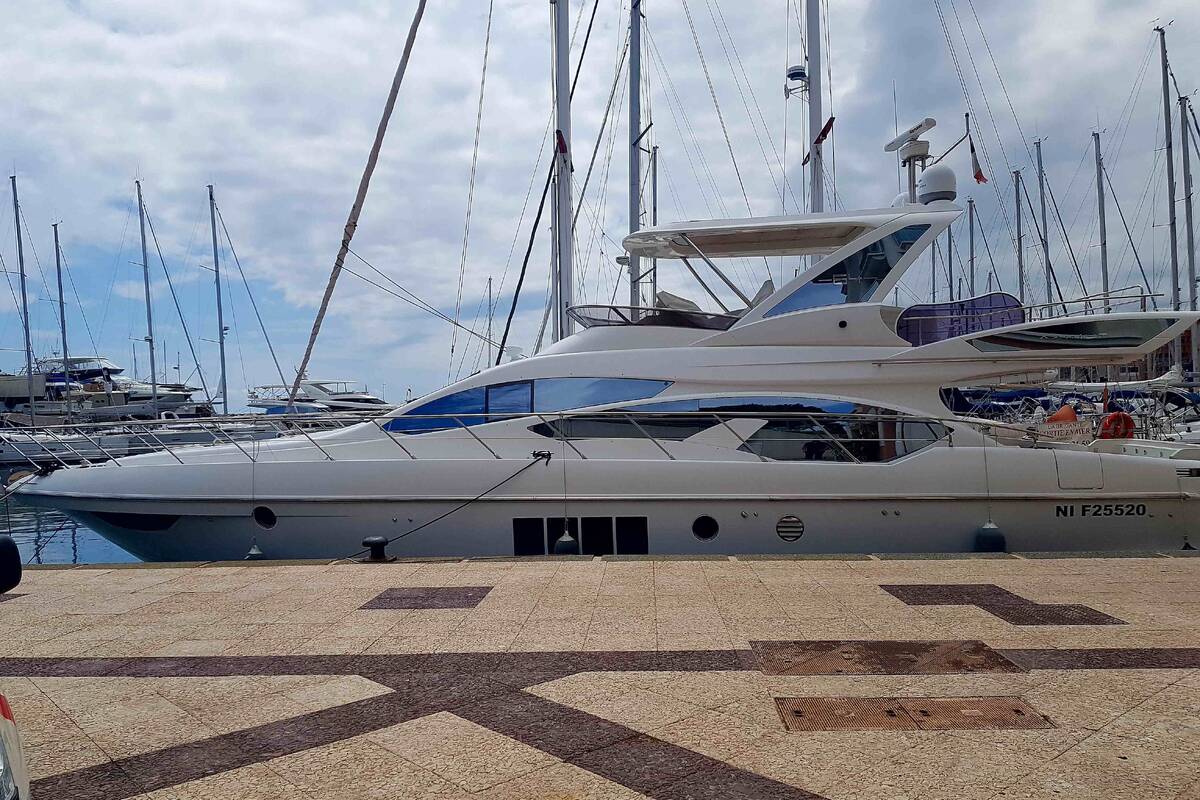

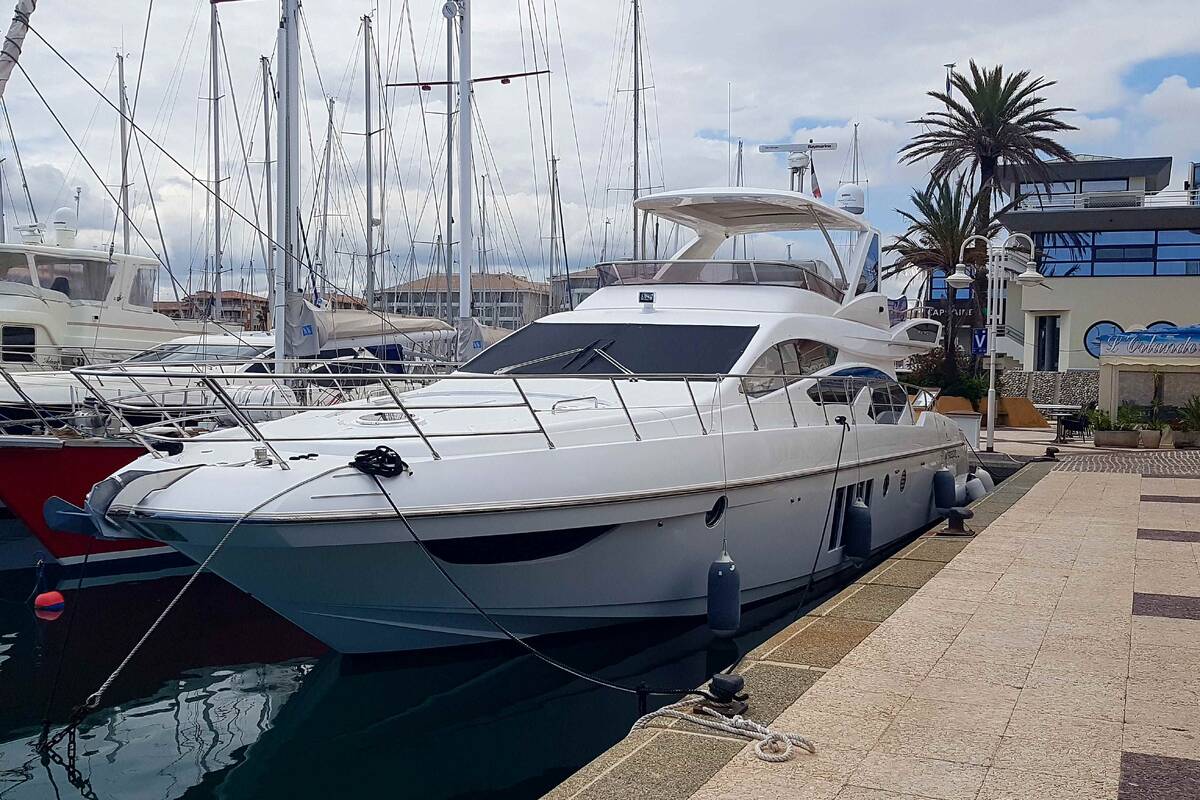

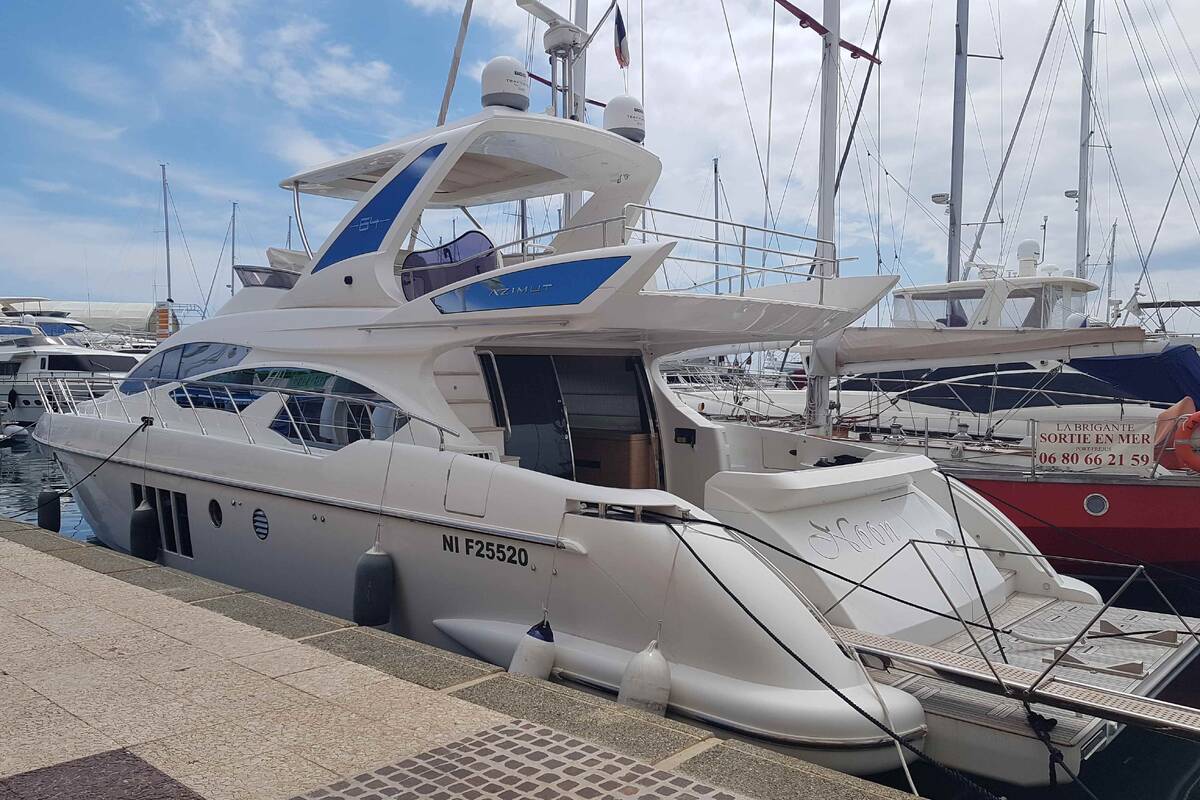

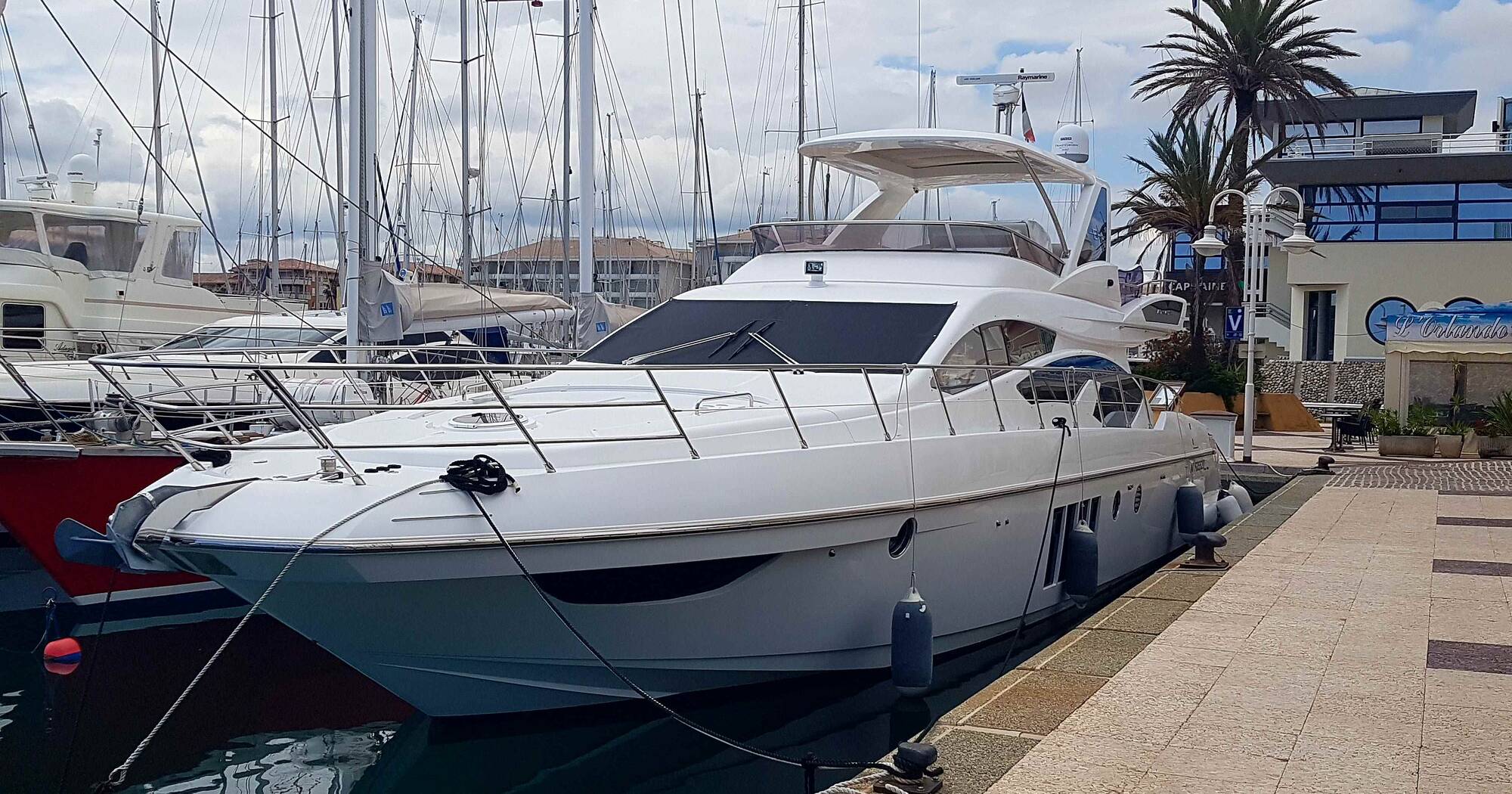

Azimut 64

• Quantity Two 6-cylinder diesel engines
• Manufacturer CATERPILLAR
• Model CAT C18 ACERT
• Max. power 847 kW (at 2300 rpm)

• Manufacturer Twin Disk
• Model MG5135SC
• Reduction ratio 1 : 2.040

• Quantity Two, designed to guarantee excellent performance and navigation comfort
• Type Five blades

• Quantity Two
• Building material AQUAMET17
• Diameter 3"
• Length 3505mm
• Angle 10.7°
• Distance between centers 1640mm

• Material Brass axle supports
• Hull casings GR1, diam. 3"

Rudders

• Material NiBrAl
• Surface designed to ensure easy steering

• Power supply 24 V
• Power 8 kW

• Can be accessed from the left side of the cockpit via a 7-rung GRP ladder (steps in teak).
• Access door: hinged opening with hatchway in aluminium and Plexiglas.
• Smokey Plexiglas windbreak with stainless steel frame
• Helm seat for 1 person, with manual depth adjustment
• Fore sundeck with cushions
• Seating for up to 8 people on starboard side, with under-seat locker
• Table for up to 8 people, with teak top
• Roll bar in GRP with mirror windows on the sides
• Pilot console: Raymarine Bronze Package
• Flybridge cabinet with barbecue, sink, fridge and ice-maker
• Navigation lights
• Adjustable manual spot

• 1500W winch
• Anchor winch controls
• Chain locker with drainage and fender housing
• Chain wash pump
• Fenders
• DELTA 40 kg galvanized steel anchor
• 75-meter high-resistance gaged chain, diameter 10mm
• Stainless steel anchor nose for Delta anchor
• 2 windscreen wipers for the fore windscreen
• 2 stainless steel bitts
• Hatchway (emergency exit)
• 2 grabrail handles in bow for sunbed cushions
• Side net window and windscreen covers
• Sunbed cushions and glass-holder
• Access via door on both port and starboard sides
• Stainless steel pulpit on side washboard
• Chocks on the washboard
• Tempered glass windows glued to the surrounding structure without any metal frame
• Sliding rectangular side windows in bow
• Steel fender holder
• Diesel and fresh water refills on side walkways
• Black water tank discharge outlet on side walkways
• 2 midway bitts per side

• Access to cockpit from platform, via GRP ladder on starboard side
• Bitts
• Saloon door with 3 stainless steel panels
• (2 sliding) in curved tempered glass
• "C"-shaped cockpit bench with cushions and locker, for 5 people
• Side lockers and compartments
• Engine room access
• Teak flooring
• Lighting: LED spotlights on ceiling
• Watertight loudspeakers
• Emergency panel - controls for service, engine and generator battery cut-out, mushroom-head button for emergency engine shutdown, activation of fire-extinguishing system in engine room

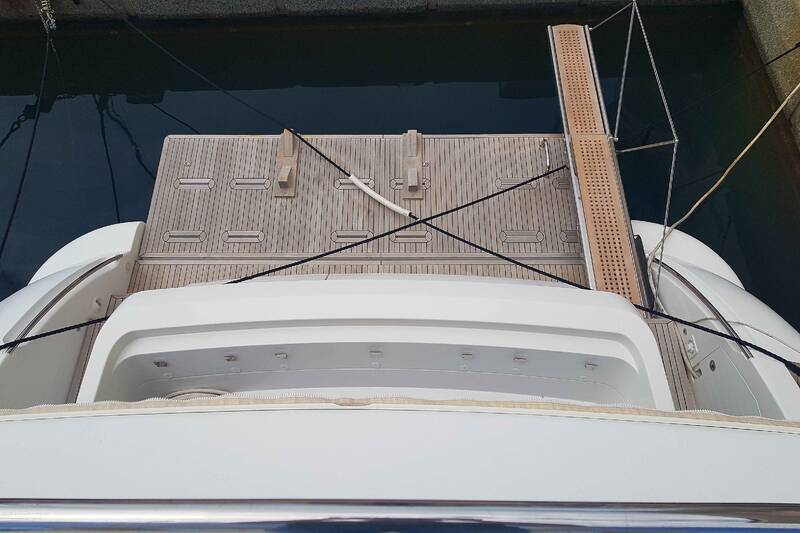

• Lift platform with teak covering and 500kg capacity
• Access to crew cabin with watertight door
• LED lighting on swimming platform
• Shower with hot and cold mixer tap
• 3-rung manual telescopic swimming ladder on port side
• INSTALLABLE TENDER:
• - WORKING DIMENSIONS OF PLATFORM: 3.55 x 1.15m
• - LIFT PAYLOAD EXCLUDING GRP, TEAK AND LADDER: 430 KG
• - DAVIT PAYLOAD: 250Kg
• - HYPOTHETICAL PLATFORM TENDER: 3.5 x 1.5m
• - HYPOTHETICAL FLYBRIDGE TENDER: 2.75 x 1.5m
• - HYPOTHETICAL WILLIAMS TENDER: 325-285

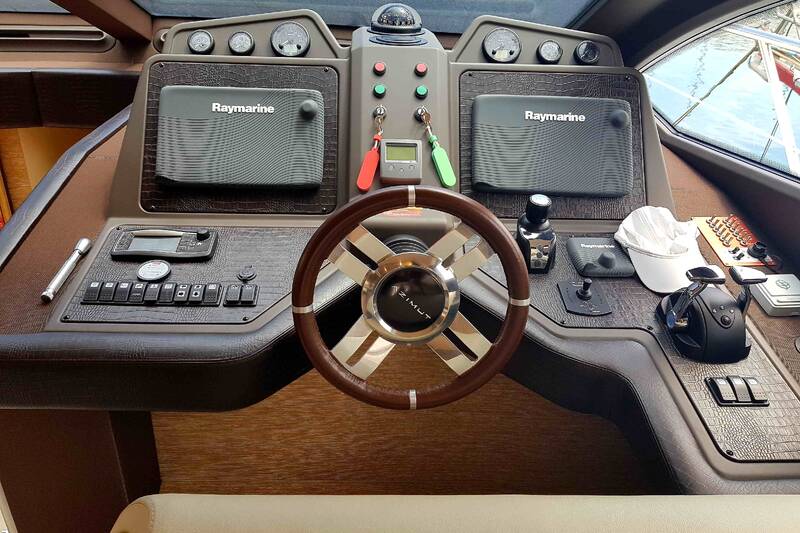

• Pilot console: Raymarine Bronze Package
• Adjustable spot
• Helm seat on starboard side, with electric depth/height adjustment
• Adjustable rudder
• Chain meter counter
• Magnetic compass
• 24V + 220V electric panel
• 12V socket
• Controls for:
• - Engine start-up
• - Bow anchor winch activation
• - Adjustable spot activation
• - Audible alarm
• - Navigation light activation
• - Windscreen washer activation
• - Activation of bilge pumps
• - Activation of fire fighting pump
• - Opening of side windows (port and starboard)
• - Emptying of black and gray water tanks
• - Engine room ventilation
• - Shore power sockets
• - Chain wash pump
• Gages for:
• - Diesel level gage
• - Fresh water level gage
• - Black water level gage
• - Gray water level gage
• Grabrails for ladder descent

• Carpeted floor

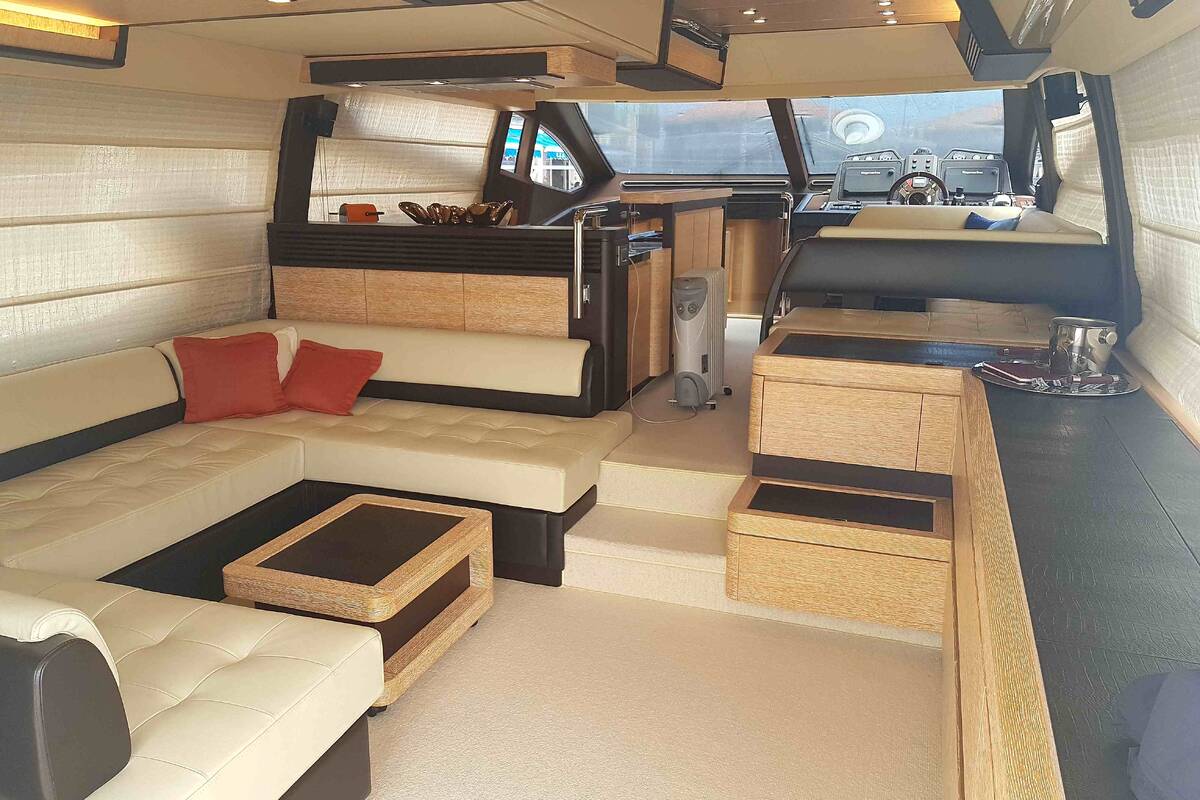

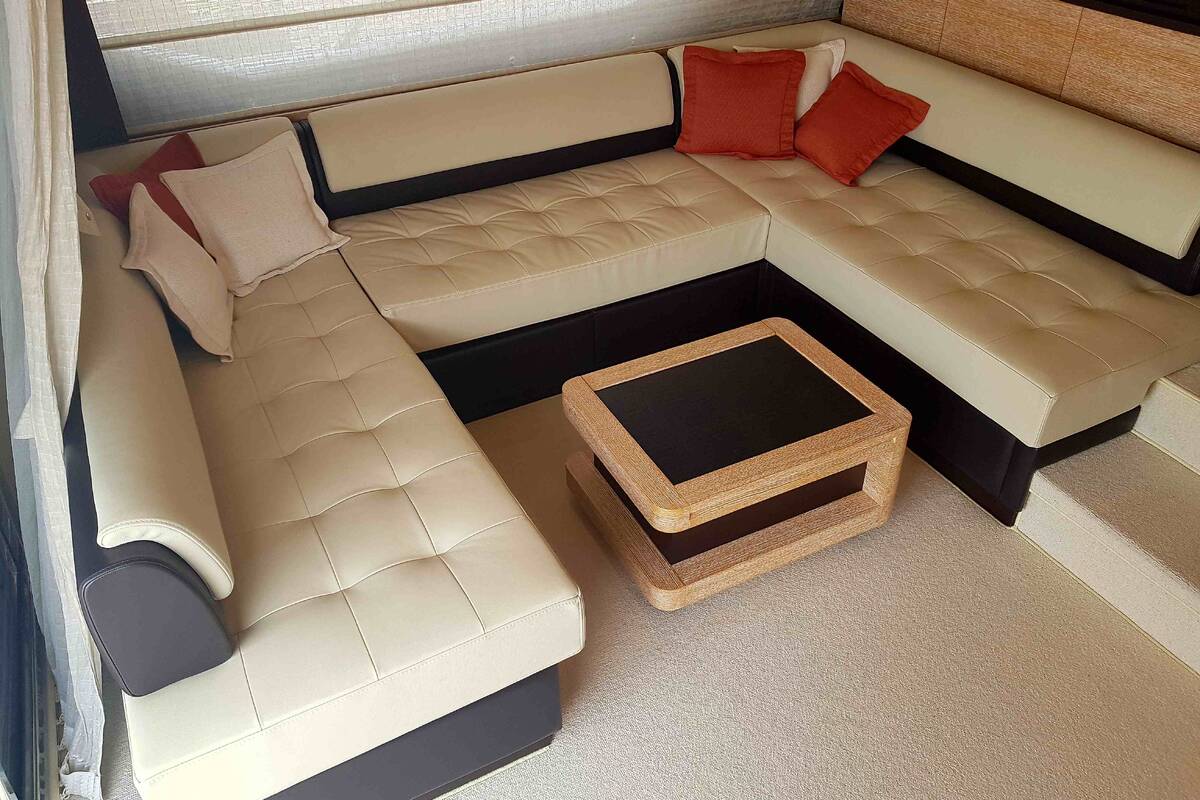

• 2 3-seater sofas on port side, with cabinet on starboard side
• Radio on left column
• Coffee table on left
• TV cabinet
• TV system setup
• Roman blinds on side windows
• Saloon door blind
• LED spotlights

• Carpeted floor

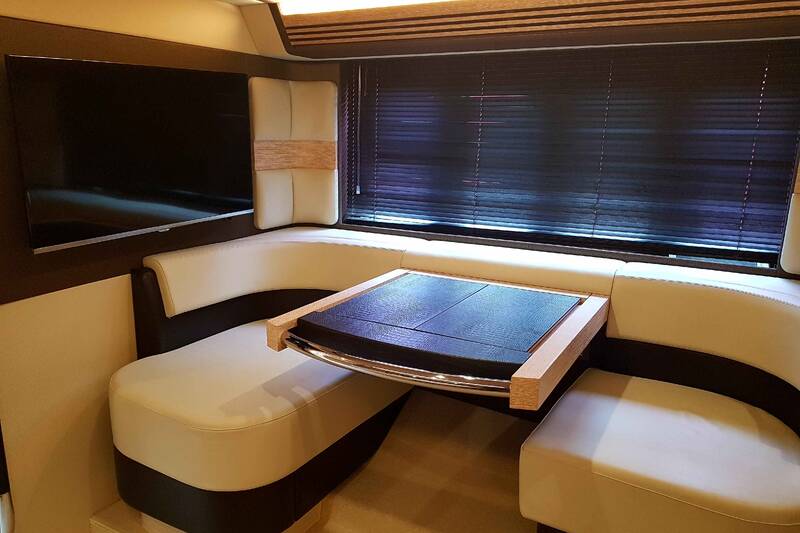

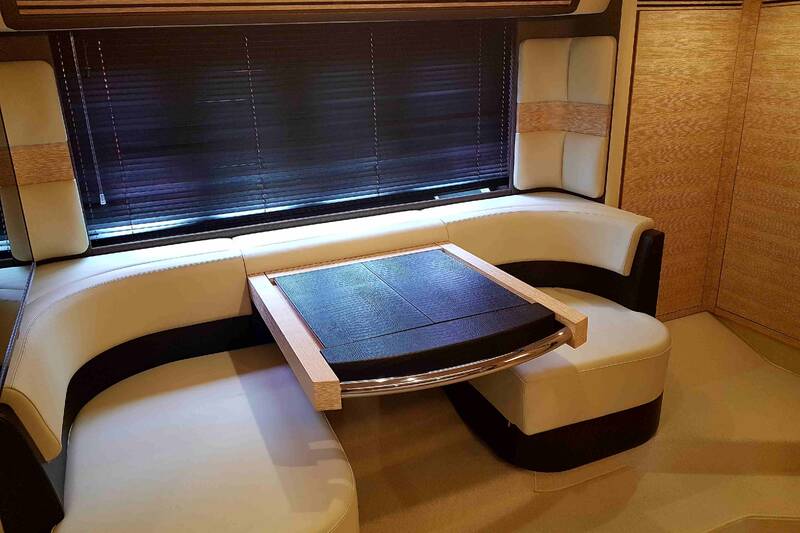

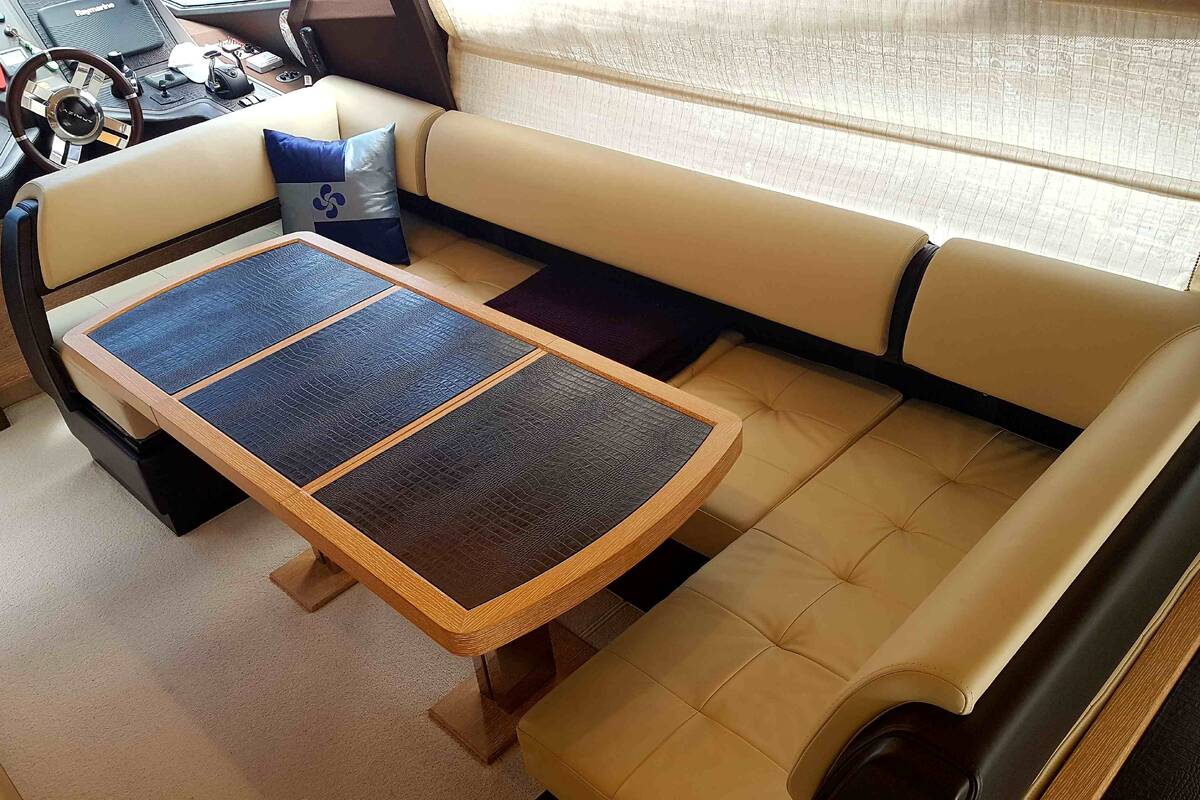

• "C"-shaped sofa for 5 people on starboard side
• Rectangular table with removable central part to facilitate people's movement
• Below deck accommodation ladder on port side, with carpeted illuminated treads
• Dinette table lit by direct LED spotlights
• Roman blinds on side windows
• TV system

• Whitened oak floor

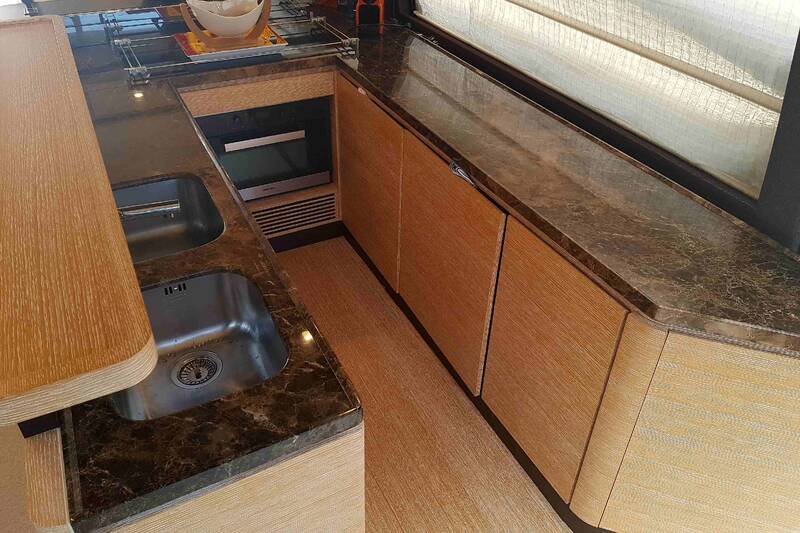

• Worktop in lightweight marble
• Saloon/dinette furniture in whitened oak
• Stainless steel sink with mixer tap
• Fixed LED spotlights on varnished ceiling panel, and fixed spotlights under the wall unit between the galley and the saloon
• Four-hob glass ceramic range with stainless steel pan holder
• Hood with active carbon filters
• Microwave oven + grill
• Fridge/freezer with drawers

• Located midship

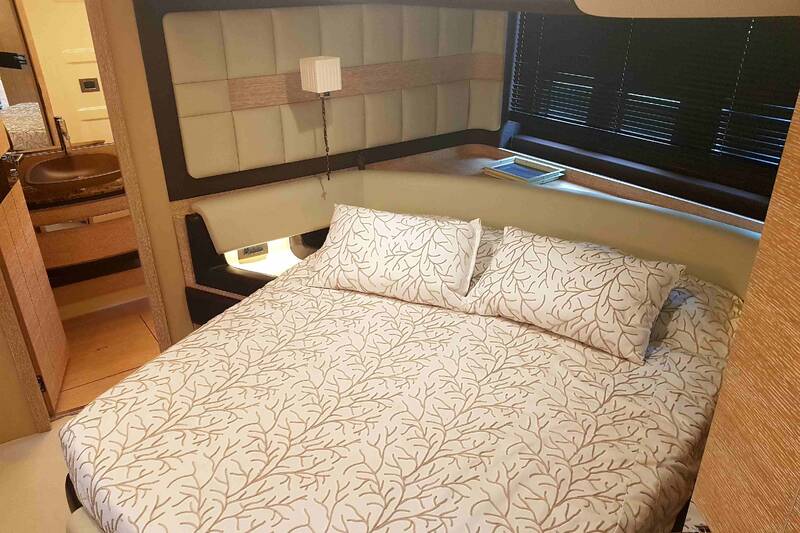

• Folding double bed with lockers, with headboard on port side
• Mattress, pillows and bedspread
• Vanity table with sofas on starboard side, cabinet under the stairs with safebox and shelves
• Open wardrobe with full-height hanger bar and shelves
• 2 LED lights on the central ceiling panel
• 2 halogen lamps on the wall
• Rectangular windows
• 2 openable portholes on each side
• TV system
• Emergency exit from ceiling, above the table on the starboard side
• Carpeted floor
• Grabrail

• TECMA toilet
• Washbasin in cognac resin glass, with mixer tap
• Cabinet with brown or cream varnished finish (for the other heads too), with large drawer in whitened oak
• Shower with thermostatic mixer tap
• Shower enclosure with glass door, seat and wooden floor
• Mirrors
• Wooden flooring
• LED spotlights
• Openable porthole with Venetian blinds
• Air extractor in the shower enclosure
• Head accessories

• 2 fixed, parallel, single beds
• Mattress, pillows and bedspread
• Central nightstand
• Wardrobe with hanger bar and shelves
• 2 openable round portholes
• 2 LED wall lights
• LED lighting with spotlights on ceiling
• Carpeted floor

• Access from guest cabin and from corridor
• TECMA toilet
• Washbasin in cognac resin glass, with mixer tap
• Cabinet under the washbasin with front in whitened oak, and towel rail
• Wall unit with 2 sliding mirror panels
• Shower with mixer tap
• Shower enclosure with 2 overlapping doors
• Wooden flooring
• LED spotlights
• Openable porthole with Venetian blind
• Air extractor in the shower enclosure
• Head accessories

• Located towards the bow of the below deck area, it is accessed via a central corridor

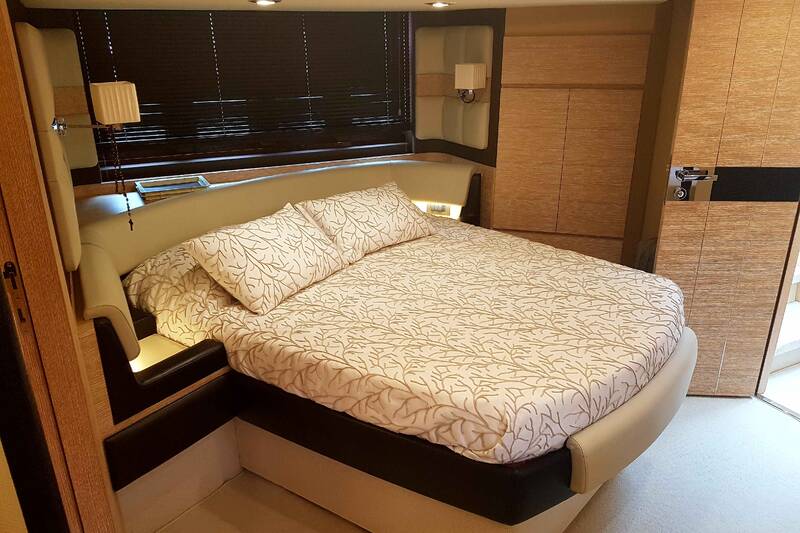

• Folding double bed with lockers
• Mattress, pillows and bedspread
• 2 wardrobes (one per side) in whitened oak, with interior in cedar-wood
• 2 wall units (two per side) with folding panel above the windows
• 2 halogen lamps on the wall
• LED lighting with spotlights on ceiling above the bed, and as main lighting
• 1 openable porthole on each side
• Panoramic windows on both sides
• Hatchway for accessing the bow sundeck
• TV system
• Carpeted floor

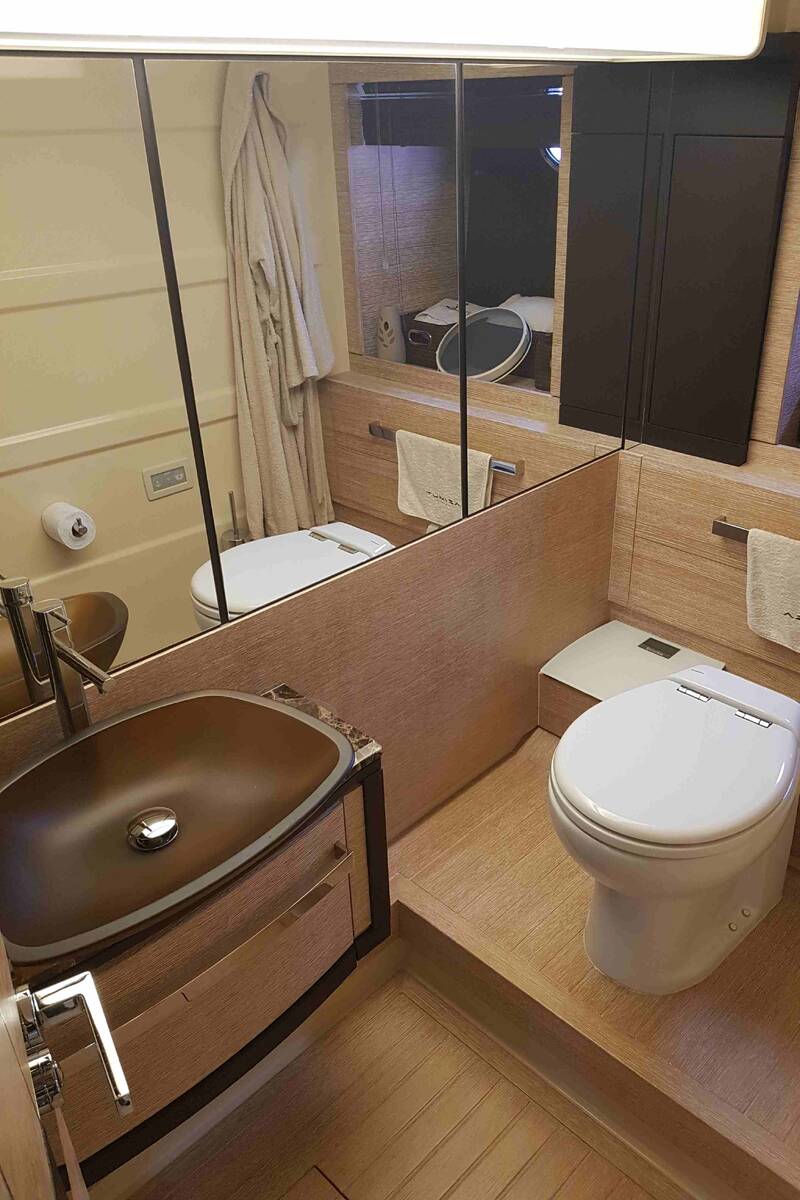

• TECMA toilet
• Washbasin in cognac resin glass, with mixer tap
• Cabinet with brown or cream varnished finish, with large drawer in whitened oak

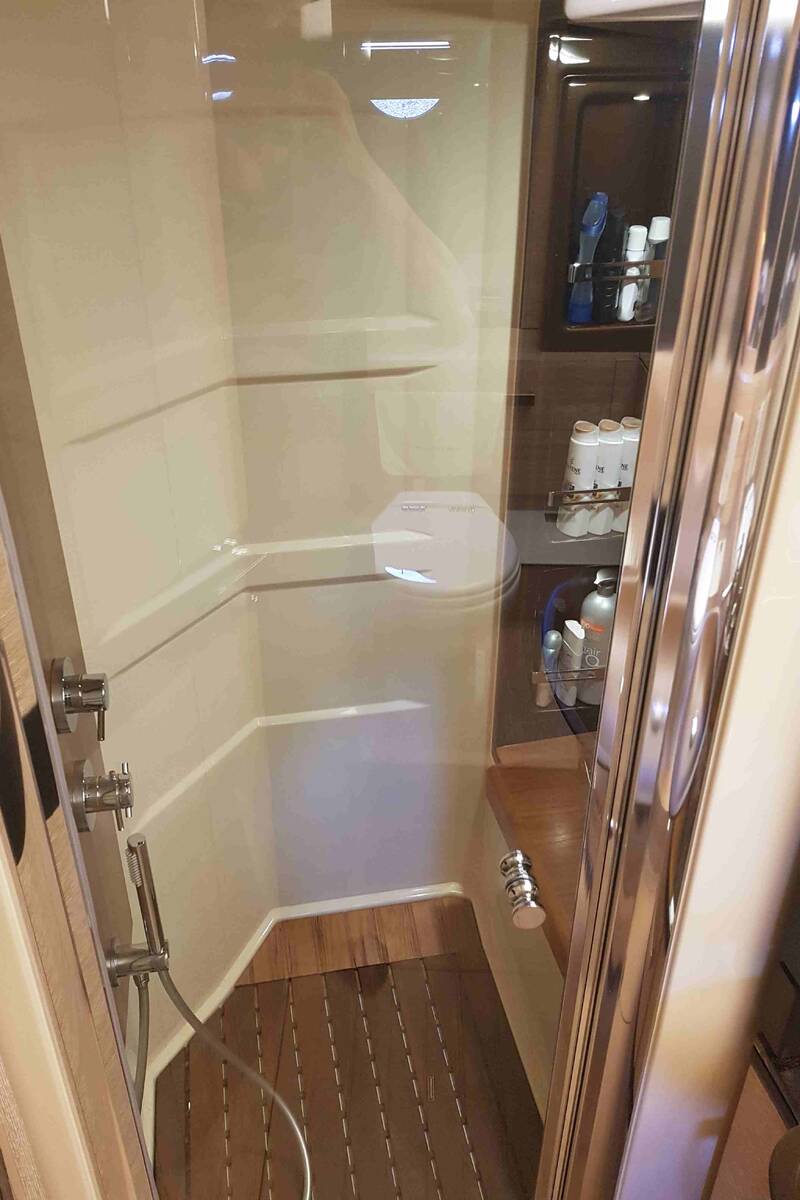

• Shower with thermostatic mixer tap
• Shower enclosure with 1 flat glass door
• Mirrors
• Wooden flooring
• LED spotlights
• Openable porthole with Venetian blinds
• Air extractor in the shower enclosure
• Head accessories

• Carpeted floor
• Lighting on the steps, LED spotlights on corridor ceiling
• Grabrail

• Access from watertight door on platform
• Single bed
• Mattress, pillows and bedspread
• Wardrobes, cupboards and under-bed lockers
• 1 oval porthole
• GRP non-slip floor
• Fabric curtain for porthole

• Access from crew cabin
• TECMA toilet
• Washbasin with chrome mixer tap with extractable shower head
• Shower with transparent Plexiglas door
• Thermostatic shower mixer tap
• Head accessories

Voltage levels on board:

• 220V AC - 50Hz
• 24V DC, 12V DC

• 1 generator 7 KW in the engine room

• 2 shore power sockets 230V 50Hz
• The AC power sources are controlled from the main electric panel in the crew cabin, with a digital multimeter for the 230V network
• The power sources are protected by a power circuit breaker, and introduced into the network by means of remote control switches

• 10 batteries 90Ah 24V, including:
• - 6 for services
• - 4 for engine start-up
• 1 battery GM 50Ah 12V for generator

• 1 battery charger 12V 10A for generators
• 1 battery charger 24V 80A for service and start-up batteries

• The main electric panels are installed in the crew cabin (main panel) and wheelhouse (auxiliary panel)
• Junction boxes are installed in all areas

• 24V lighting: LED spotlights on ceiling, emergency lighting, and ceiling lights
• 230V AC sockets: main lighting
• 12V DC sockets: cigarette lighter type

• For STD equipment, see the paragraphs on “flybridge instrument board equipment” and “internal instrument board equipment”
• For a detailed list of alternative/additional equipment available, please refer to the Optionals price list

• 3 automatic motor pumps 24V, capacity 224L/min, in the cabin area, engine room and utility room
• 1 supersub smart 650 electric bilge 24V (24 l/min - 2,040 l/h, with 1m head)
• 2 manual pumps BP9013 WHALE GUSHER URCHIN + MH0350 HENDERSON COMPAC 50 in the engine room and owner's cabin.
• 3-way valve on engine cooling (emergency intake in engine room connected to one of the two engine seawater intakes)
• 3 bilge level alarms

• 2 powder extinguisher with nozzles,
• 12kg, on the engines and marine gears

• 2 steel tanks, 1950-liter capacity
• Electronic diesel level gage on Motronica display for the port tank
• Optical level gage on starboard diesel tank
• Filling on each walkway, and venting on the bulwarks
• 2 single filters

• 980-liter stainless steel tank beneath the fore tray, towards the middle of the boat
• Level sensor with electronic gage on Motronica display
• Filling on the starboard side walkway
• 80-liter water heater 220V-1200W
• Pressure pump
• Hot and cold water in all the bathrooms, galley and platform shower head
• Cold water in engine room, cockpit and flybridge
• Fresh water toilet flushing

• 1 tank with 385-liter capacity in fore area
• Level sensor - tank drainage is controlled manually from the wheelhouse
• Vent on bulwark, with anti-odor filter
• TECMA toilet
• Drainage from pier, on port side walkway

• Water drainage into tank (200-liter capacity) in fore area
• Level sensor with automatic pump and alarm control from the wheelhouse
• Water drainage via manifolds (24V membrane pump)
• Additional tank (9-liter capacity) in polyethylene beneath the crew cabin
• Level sensor with automatic pump activation

• Submerged discharge system with minimum external by-pass
• Stainless steel drainage manifolds
• Structural mufflers in GRP

• Engine cooling with 2 dynamic 3" seawater intakes with filter and valves
• Generator cooling with 1 seawater intake (1'') with filter and valve - submerged outlet
• Conditioner cooling with 1 dynamic seawater intake (1'') with filter and valve - submerged outlet
• Chain wash pump with 1 dynamic seawater intake (1") with valve

• Head extraction system via 24V gas extractors with control in head
• 2 fans and 2 extractors with flow diverter in engine room

• 24V electro-hydraulic pump for trim tabs
• 24V electro-hydraulic pump for gangway and swimming platform
• 24V electro-hydraulic pump for davit

• CONDARIA cooling system for air conditioning (water system), World version - 92,000 BTU
• A/C COMPRESSOR:
• - 1 single compressor in engine room, on port side of generator, with electric panel facing towards the middle of the boat
• FANCOILS:
• - 6,200 + 14,800 BTU for the saloon + dinette
• - 16,000 BTU for the galley
• - 16,000 BTU for the wheelhouse area and windscreen
• - 9,200 BTU for the owner's cabin, with delivery in owner's head
• - 9,200 BTU for the VIP cabin, with delivery in VIP head
• - 6,200 BTU for the guest cabin
• - 6,200 BTU for the crew cabin for the saloon, a single panel for managing all the fancoils; for the cabins, 1 panel for each room

• 1 hook for telescope
• 5 anchor lines
• 24 fender lines
• 1 safety system for anchor
• 8 fenders
• 8 black fender covers
• 1 Owner's Manual
• 1 stainless steel cutlery service
• 1 set of china plates
• 1 set of glasses
• 1 set of stainless steel cooking pans
• 3 sets of towels (with logo)
• 1 bottle of "MONSORDO MAGNUM"
• 1 clock with glossy brass case
• 1 barometer with glossy brass case
• 4 float key-holders
• 2 bags (with logo) for storing the manuals
• 1 remote control holder (with logo)
• 1 bag for holding the shower tube
• 1 routine maintenance kit for steels
