Propulsion system summary
Engines
- Manufacturer VOLVO Penta
- Model D3
- Max. power 2x 162kW - 220hp
Performance
- Maximum speed 31 kts
- Cruising speed 24 kts
- Maximum speed consumption 95 l/h
- Cruising speed consumption 65 l/h
Characteristics
- Hull: made with the infusion method, vinylester resin on the outer layers. Architecture with structural web and semi-structural hawk made with the infusion method, with balsa wood sandwich. Deep V hull, variable geometry, 17.87° deadrise astern.
- Deck: made with the infusion method, with balsa wood sandwich.
- Painting: white ISO neopentyl glycol gelcoat.
Internal division:
- Transformable dinette
- Galley
- Head
- Owner’s cabin
Furnishings:
- Fabric bedspread
- External cushions covered in single-color vinyl fabric
- Internal cushions with removable fabric covers
- Bed surround and headboard covered in vinyl fabric
- Furniture, doors and wall upholstering in reconstituted “striped walnut” veneer and varnished finishes
- Wall paneling in reconstituted “striped walnut” veneer
- Carpeted floors in dinette and owner's cabin
- Fabric-covered ceilings
- Aluminium Venetian blinds in the galley, head and aft cabin
- Fabric curtains in the dinette
The boat description, characteristics and performance levels given in this brochure are not intended as public declarations of the specific characteristics. They are merely an indication and do not therefore constitute an element of evaluation of any type with regards the conformity of the boat, in accordance with Directive EC 99/44. The contents (words or photographs) of this brochure are not binding for the boatyard, so the customer must specifically agree the characteristics of the boat with the dealer at the time of ordering. The manufacturer reserves the right to modify the characteristics of its boats at any time, and without any forewarning. No element or topic presented in this brochure should be intended as proof of the existence of any form of association between the customer and the official dealers. Official dealers do not have the power to represent, draw up contracts, extend warranties or bind the boatyard in any way with regards third parties.

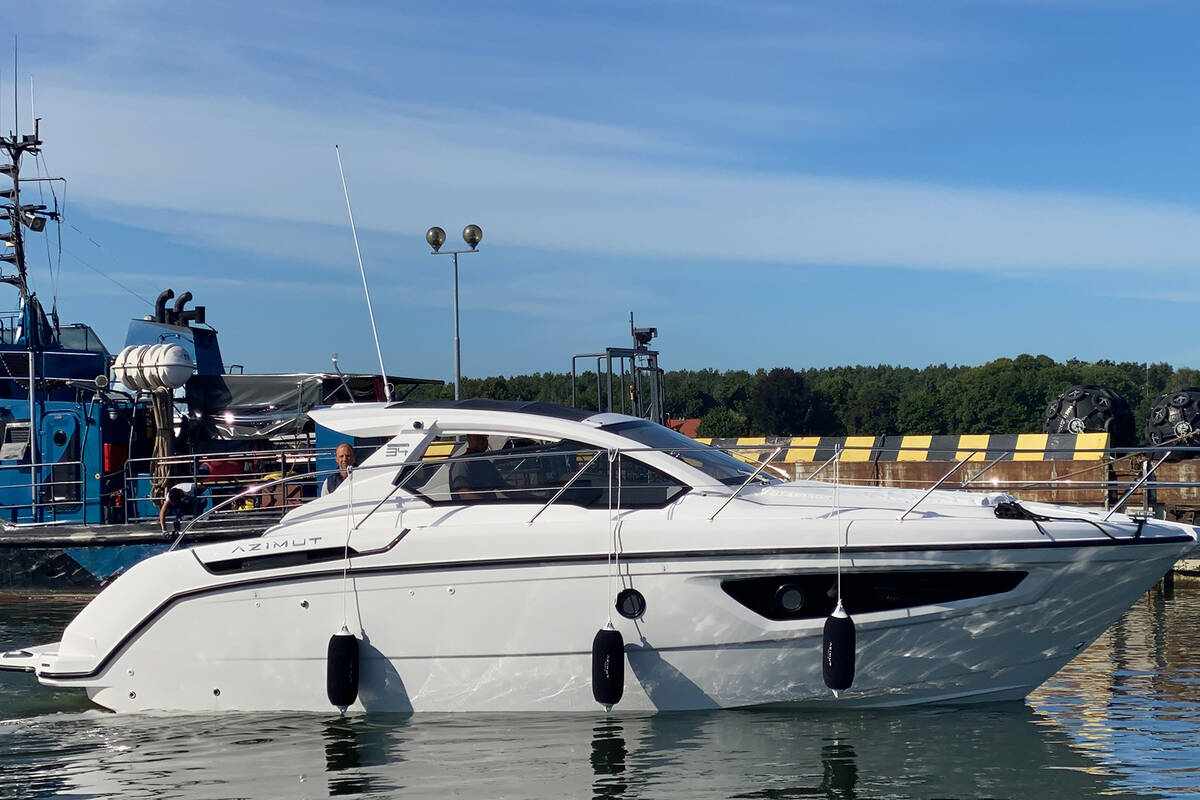

Exterior
Hull and deck
- Accessories in AISI 316 stainless steel
- Anchor 15kg and chain 30m in galvanized steel (Ø 8mm)
- Audible alarm (housed in the forepeak)
- Stern cleats in stainless steel (2)
- Bow cleats in stainless steel (2)
- Rub-rail with rubber edge
- Fixed Plexiglas windows on bulwark
- Side windows in Plexiglas
- Self-draining anchor locker
- Legally approved riding lights and navigation lights
- Stainless steel bow roller
- Stainless steel portlights

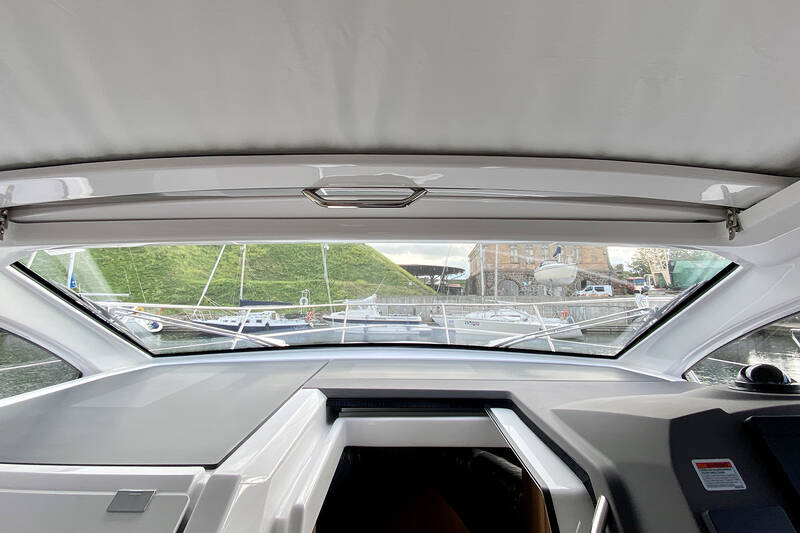

- Glass windscreen
- Fore hatch

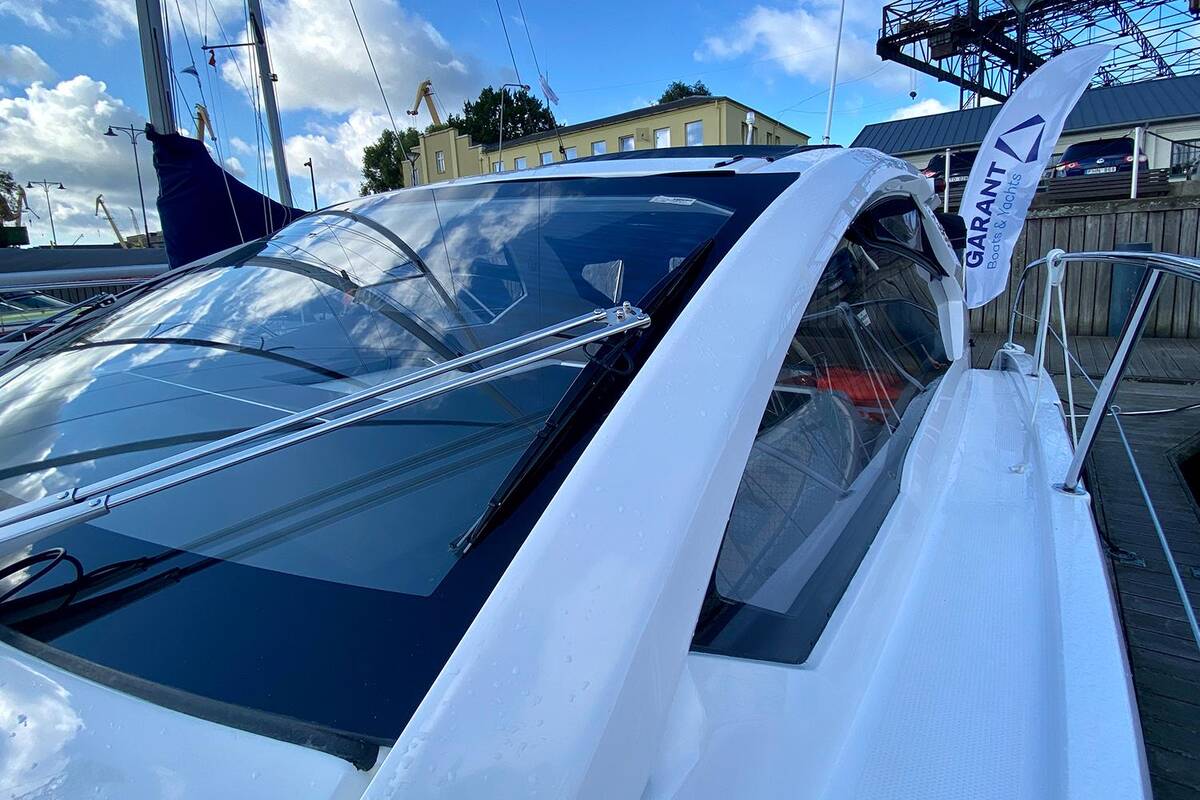

- Non-slip main deck and walk arounds
- Stainless steel pulpit with guardrail
- Refueling vent with anti-flame and antispray mesh protection

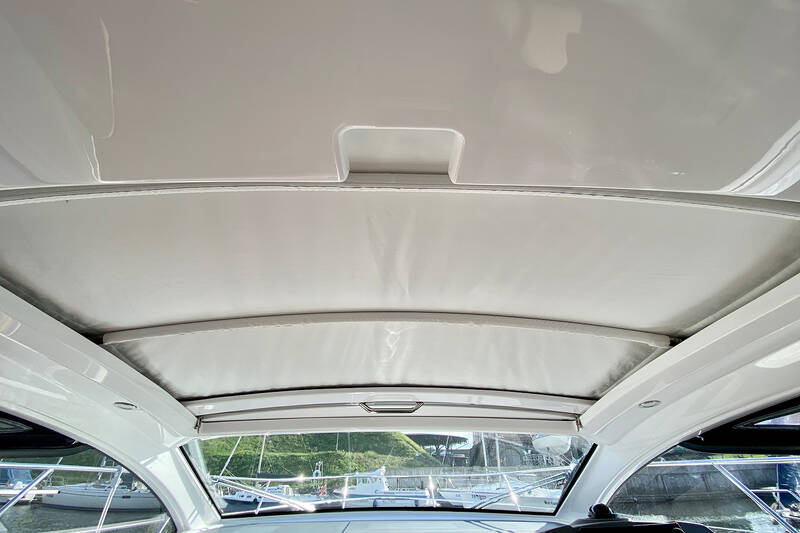

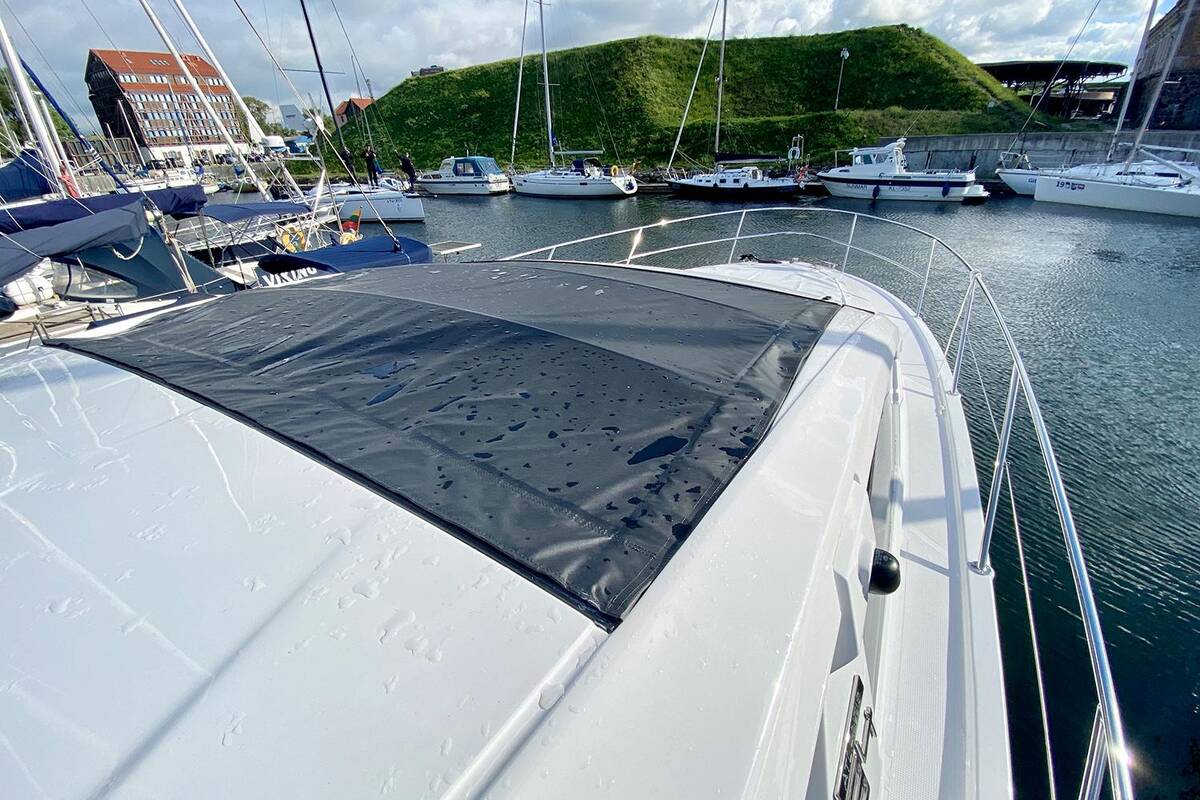

- Hard Top structure in GRP with a manually opened fabric part
- Stainless steel supports for lights and flag pole
- Refueling plugs (2)
- Water refill plug
- Windscreen wiper with washer (1)
- Stainless steel grabrails
- Bow winch 1000W

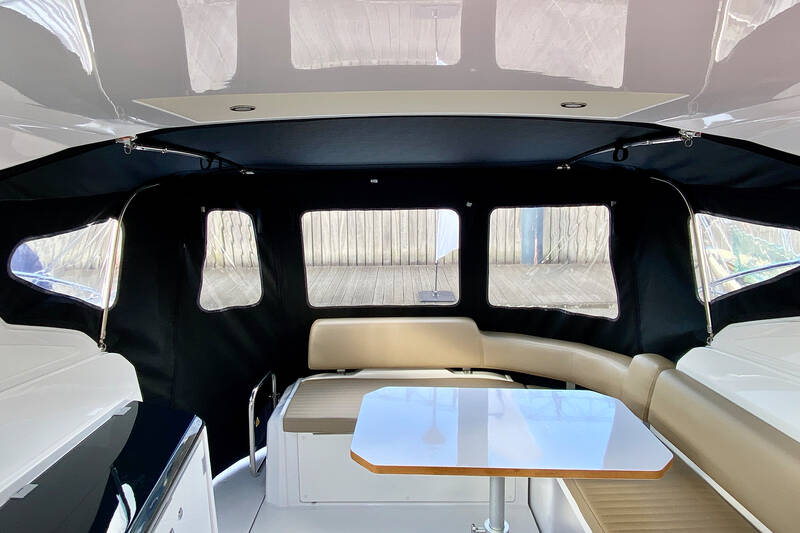

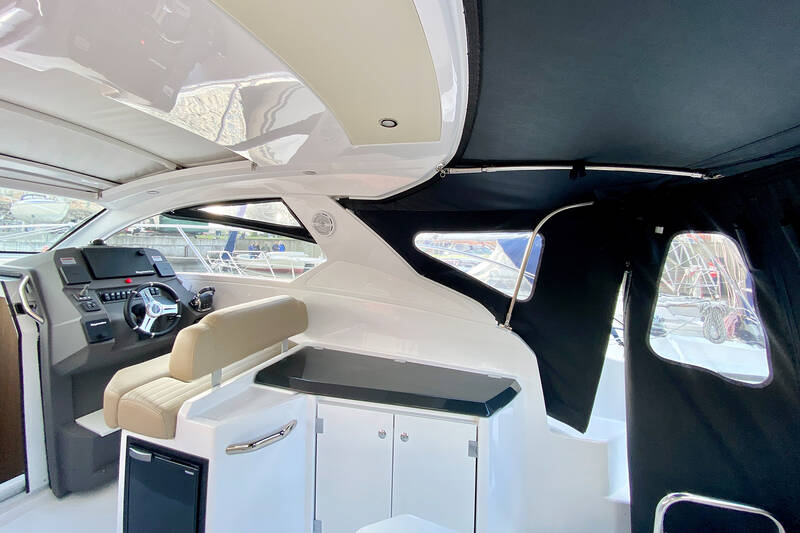

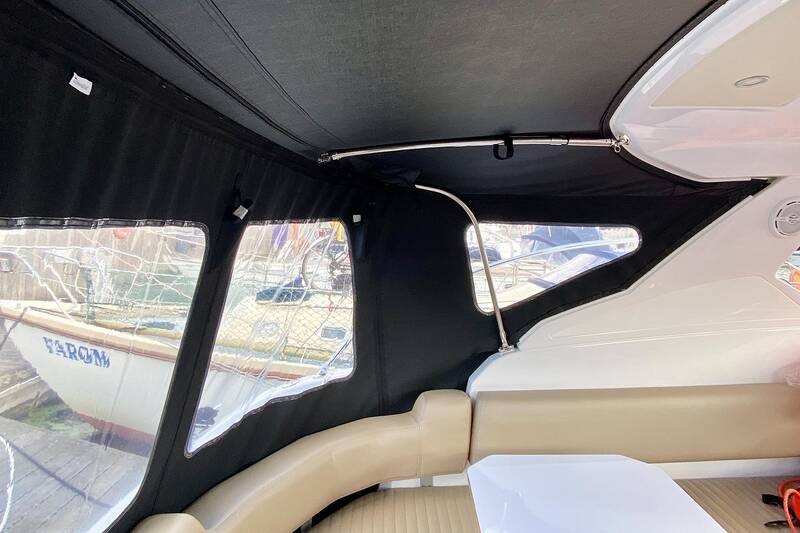

Cockpit
- Watertight loudspeakers (2)
- Aft gate in stainless steel and Plexiglas
- “C”-shaped sofa housing the liferaft and large self-draining locker
- Shower head with hot/cold mixer tap on bathing platform
- Fixed windows for lighting the dinette and galley
- Main lighting with flush-mounting adjustable LED spotlights

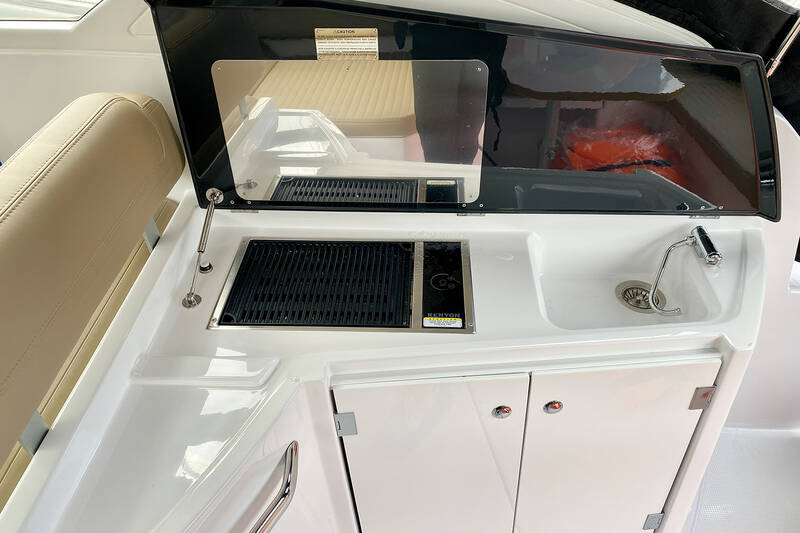

- Bar cabinet in GRP with built-in washbasin and hot/cold mixer tap
- Cockpit floor and bathing platform with non-slip finish
- Electrically operated door for accessing the engine room
- Shore power socket 220V – 50Ah (1)
- Manual foldaway swimming ladder with 3 rungs
- Sliding companionway in white Plexiglas with lock
- Glossy white table with foldaway support
- Stainless steel grabrails

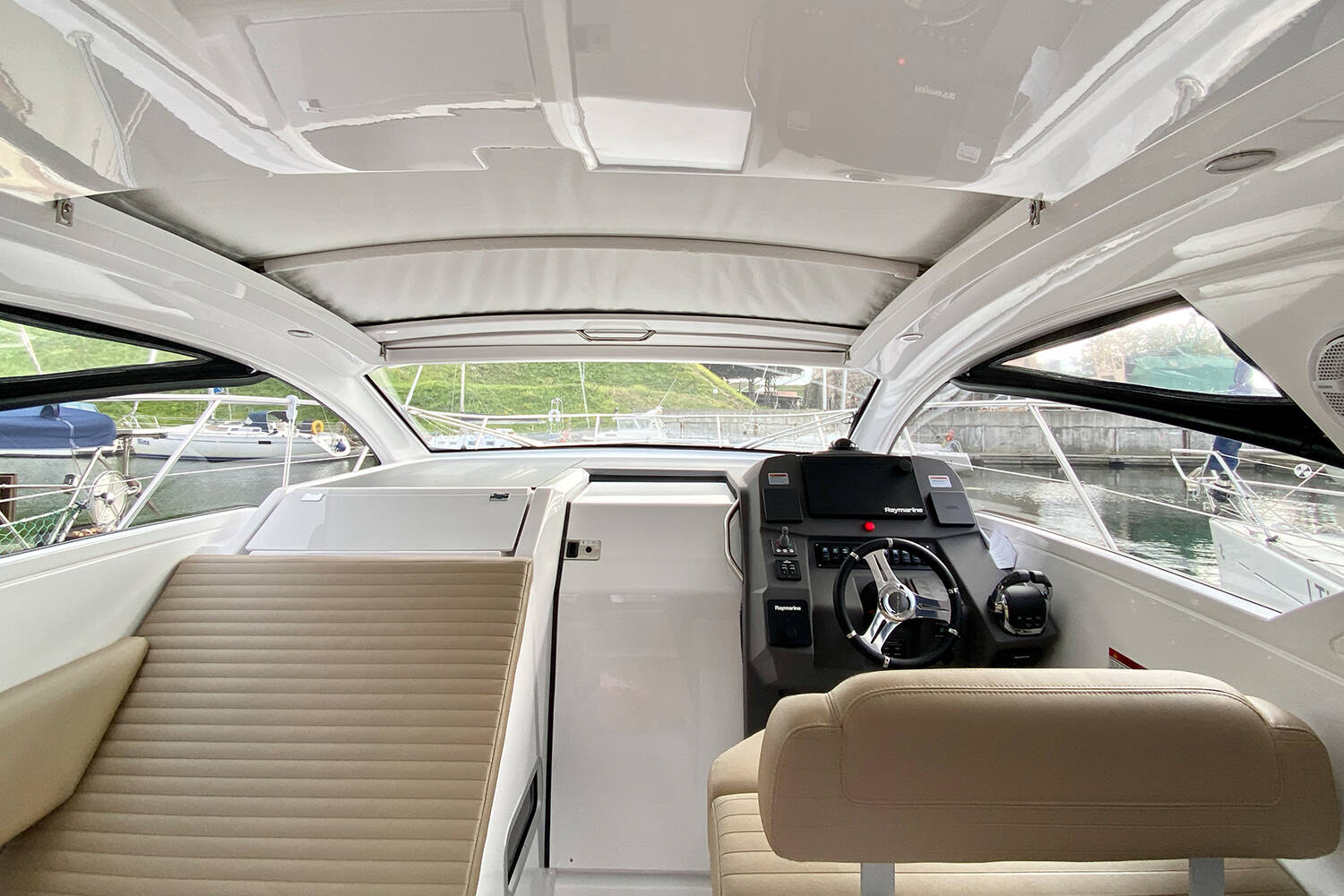

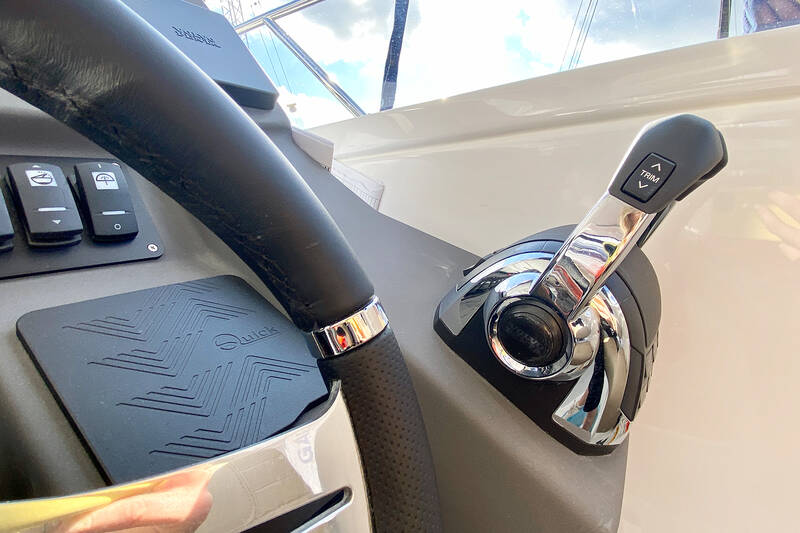

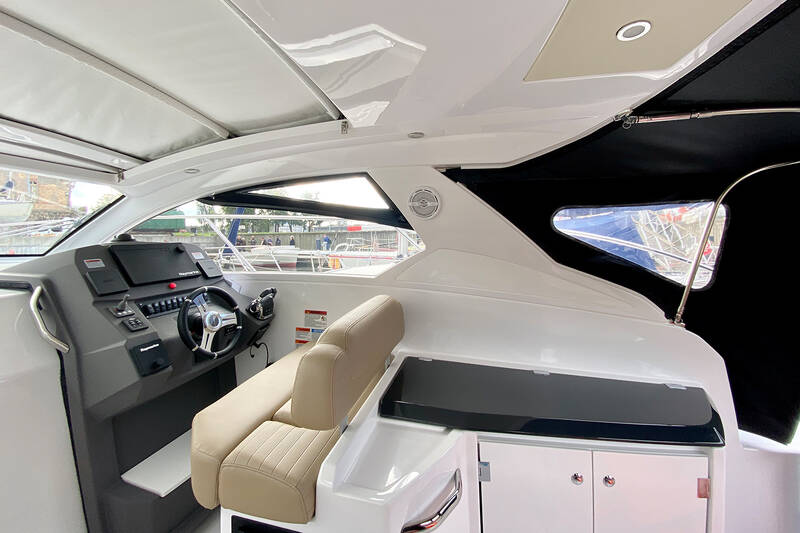

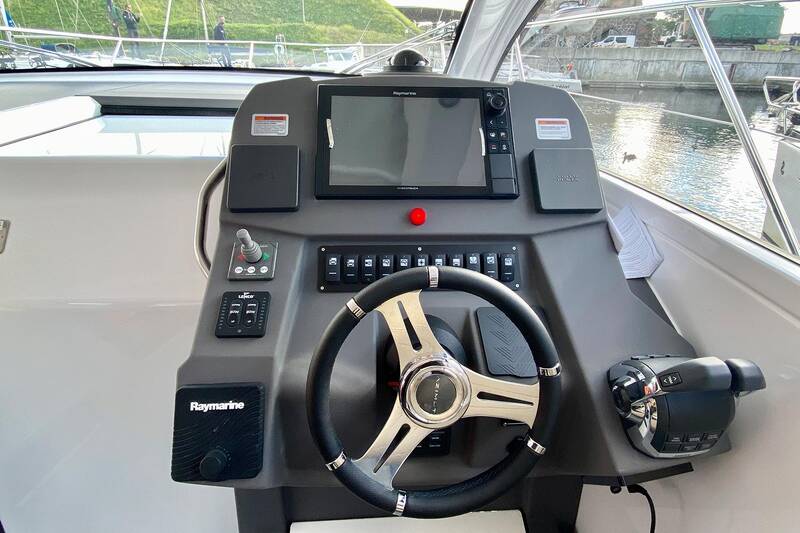

Wheelhouse
- Footrest with locker
- Dashboard and instrument panel in GRP with anti-glare finish
- Fire extinguisher 1kg
- 12V socket
- Dual-position helm seat
- Instruments: bilge alarm, magnetic compass, electronic engine controls, watertight switches, shore power socket connection indicator light, 4’’ displays (2) for viewing engine data, fuel tank level, water tank, echo sounder, speed, trim and water temperature
- Mechanical steering gear with steering wheel in leather-covered steel
Interior

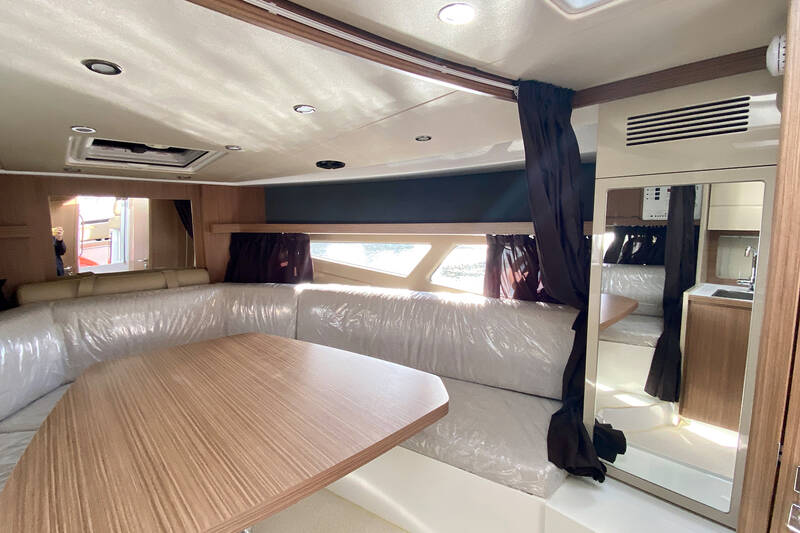

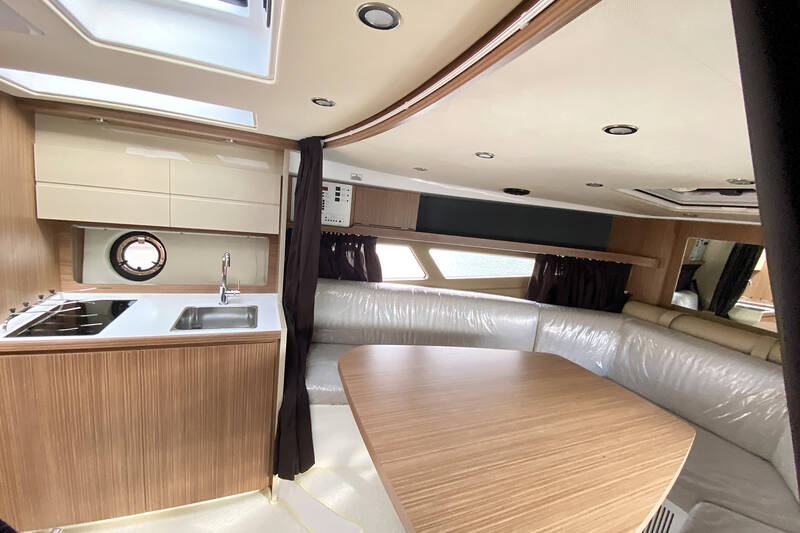

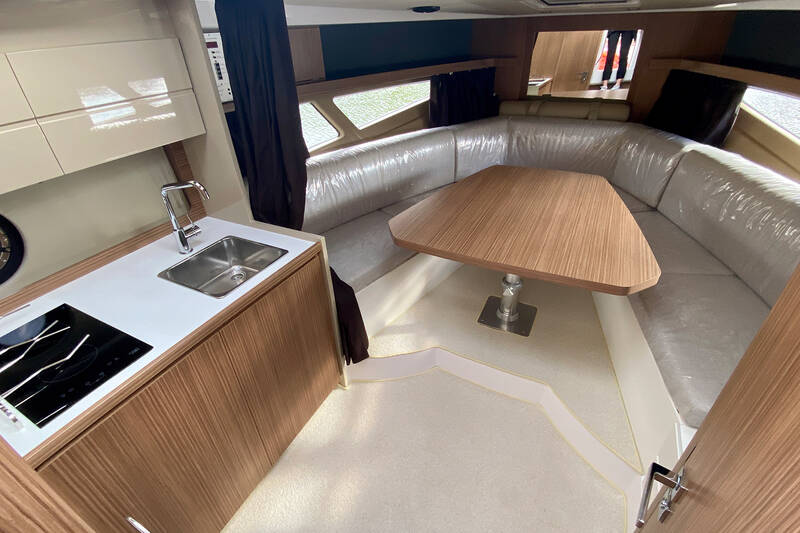

Dinette
- Wardrobe on bulwark with mirror
- Dresser against bulkhead
- Fire extinguisher 1kg
- Radio/USB with loudspeakers (2)
- Sofa base in varnished wood, with lockers

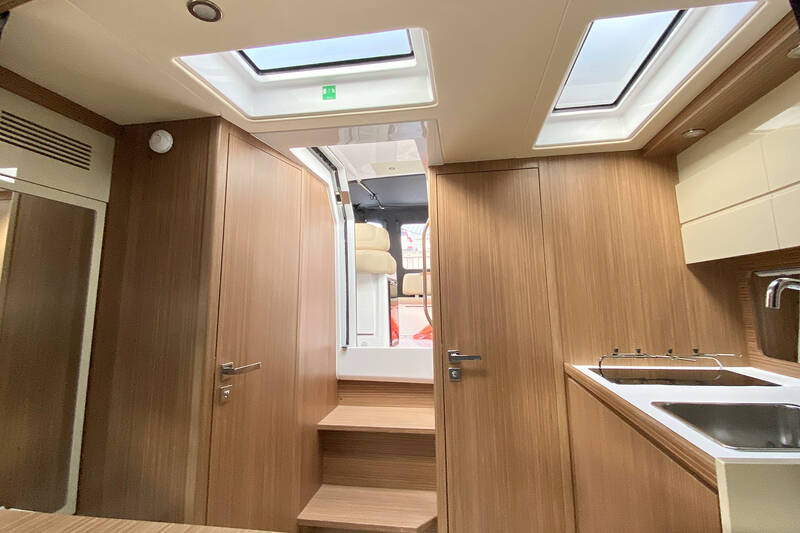

- Steps leading below deck in reconstituted “striped walnut” veneer
- Flush-mounting, adjustable LED lighting
- Light switches
- Stainless steel portlights (2)
- 220V socket
- Table with top in reconstituted “striped walnut” veneer
- Electrical control panels with power circuit breaker protection and AC/DC fuses

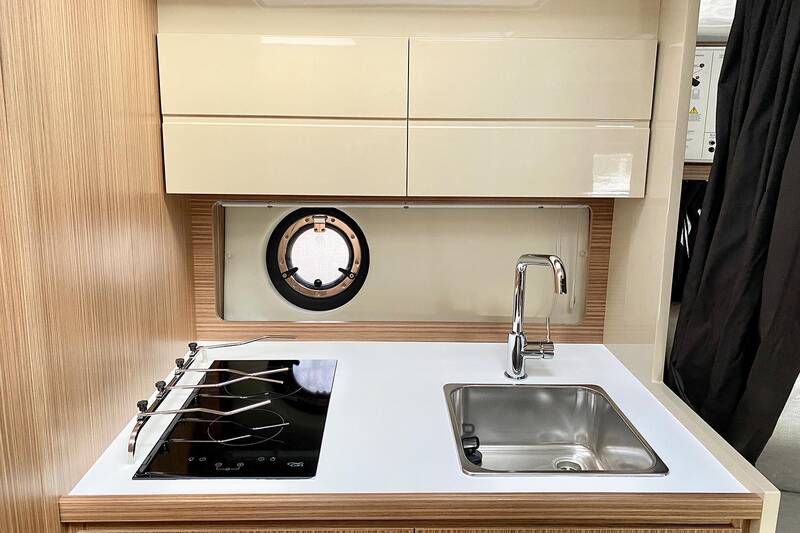

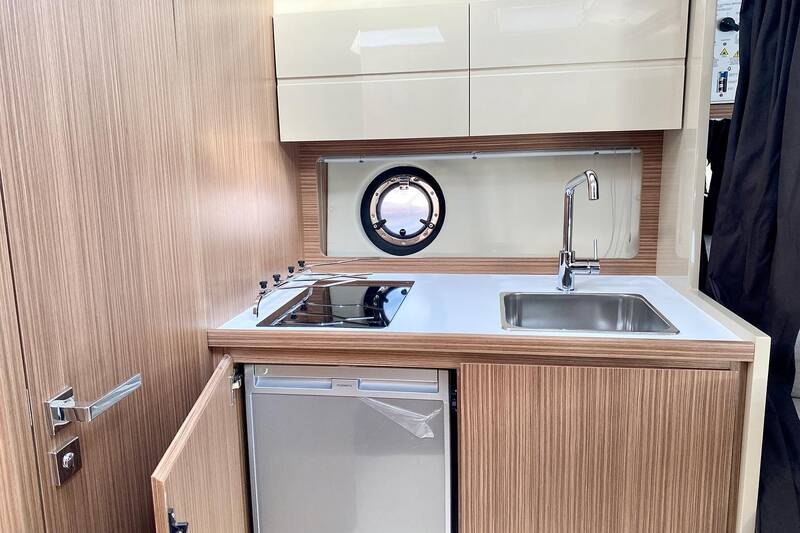

Galley
- 80-liter refrigerator – 12V
- Flush-mounting, adjustable LED lighting
- Light switches
- Stainless steel sink and mixer tap
- Stainless steel portlight (1)
- Wall units on bulwark (2)
- 2-panel cabinet under the worktop
- 2-hob range
- Laminate worktop
- 220V socket

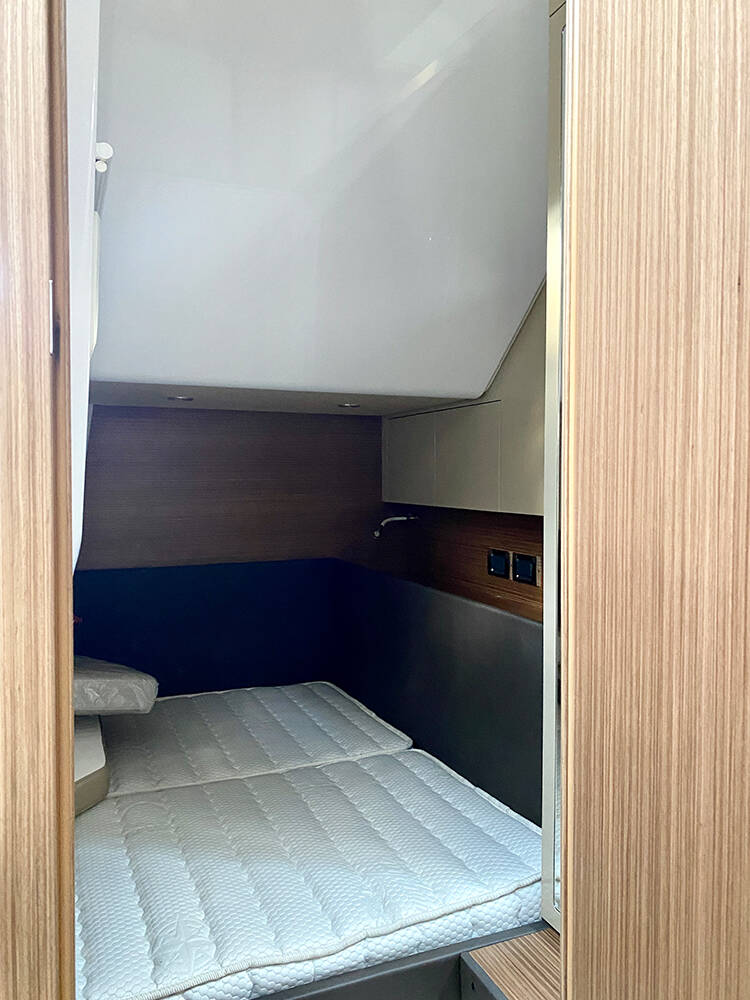

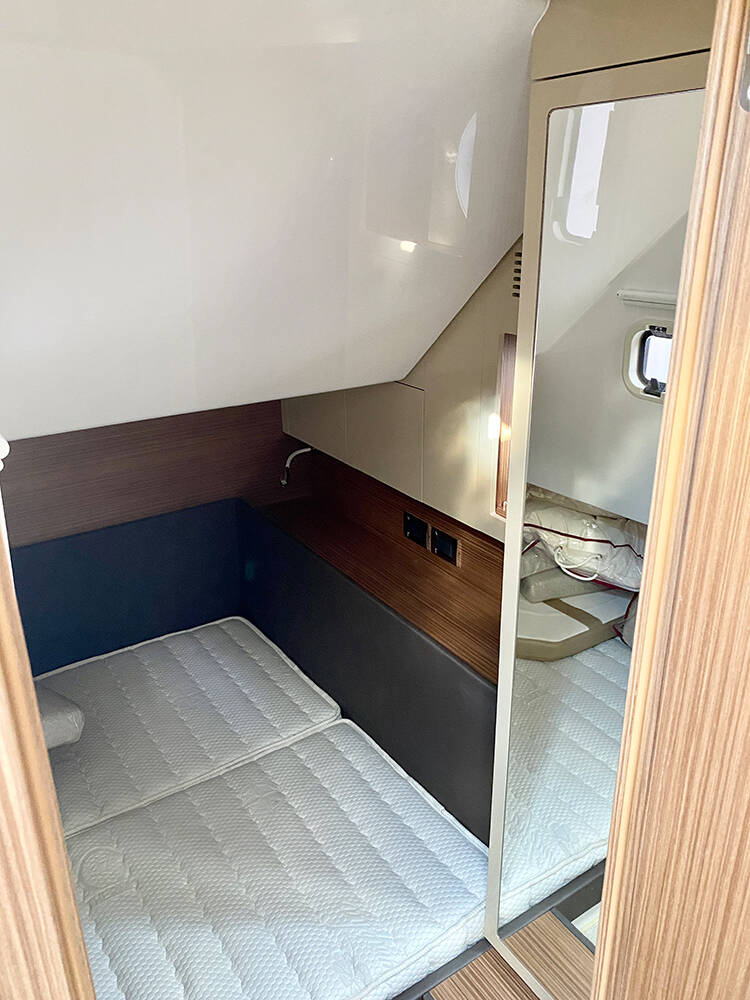

Owner’s cabin
- Wardrobe on bulwark with mirror
- Fire extinguisher 1kg
- Flush-mounting, adjustable LED lighting
- Light switches
- Double bed with mattress and pillows (2)
- Reading lights (2)
- Stainless steel portlight (1)
- Wall units on bulwark (2)
- 220V socket

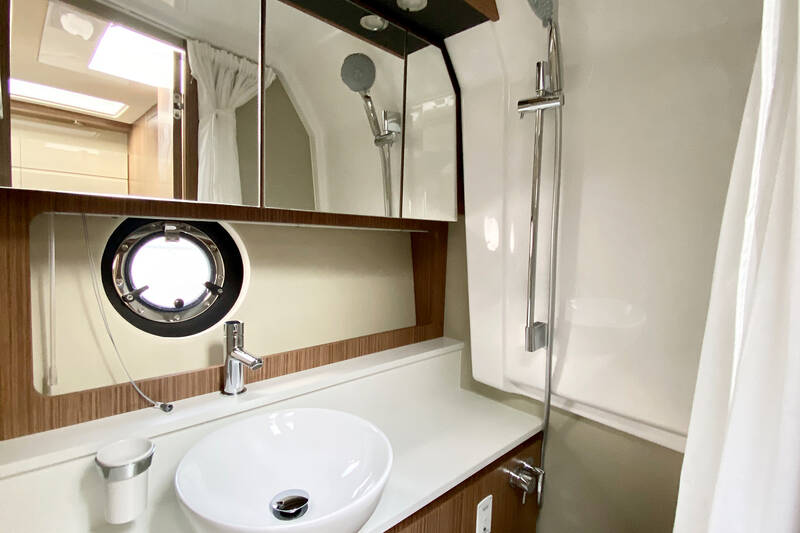

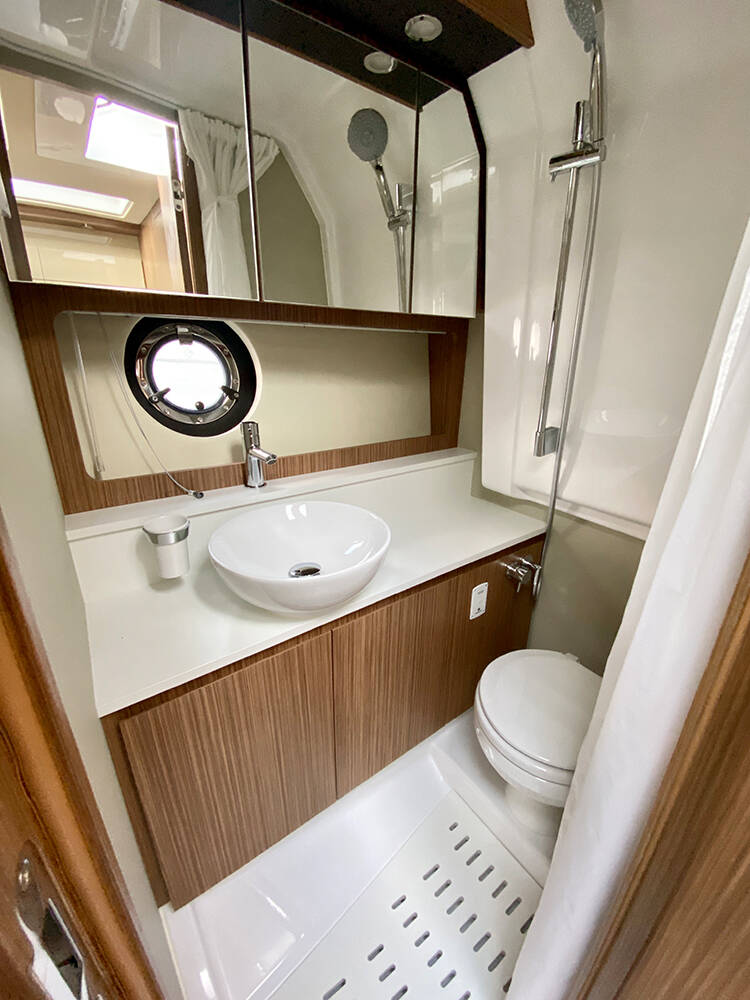

Head
- Grating in synthetic non-slip material
- Flush-mounting, adjustable LED lighting
- Light switches
- Shower mixer tap with slide bar and tube
- Cabinet with counter-top washbasin and mixer tap
- Stainless steel portlight (1)
- Wall unit with 2 mirror panels
- 220V socket
- Complete head accessories set
- Shower curtain
- Manual toilet
Systems
Electric system
- Engine battery 12V – 100Ah (1)
- Service battery 12V – 100Ah (1)
- Automatic battery charger 12V – 40Ah
- Ventilated battery compartments (2)
- Electric battery cut-out controls in the dinette
- Switches for selecting shore or generator power supply (1)
- Galvanic current insulation system
- Digital indicator of DC power supply
- Service / engine battery parallel control in wheelhouse
- Protection devices with circuit breaker on generator and shore power socket lines
Water supply and bilge system
- Bilge alarm for internal rooms and engine room, with visual and sound indicator in the wheelhouse
- 30-liter water heater
- Electronic pressure pump with filter
- Automatic electric bilge pump for internal compartments (1)
- Electric bilge pump for engine room - automatic and/or manual operation with control in wheelhouse (1)
- Manual bilge pump for internal compartments (1)
- Manual bilge pump for engine rooms (1)
- Fresh water tank (185 liters)
Fuel system
- Solenoid valves on the feeder lines, to immediately stop the fuel flow
- Diesel settling filters (2)
- Fuel tanks (2 x 325 liters) with visual indicator in the engine room and electronic indicator in the wheelhouse
Engine room
- Movable lighting
- Automatic and manual fire extinguishing system
- Thermal/acoustic insulation
- Electrically operated access door from cockpit
- Complete cathode protection for fuel tanks, seawater intakes, etc.
- Safety valves on the seawater intakes
- Natural engine room ventilation
Equipment
- 1 telescopic boat hook
- 2 anchor lines
- 12m fender lines
- 1 anchor chain stopper
- 4 fenders
- 4 black fender covers
- 1 Owner's manual
- 1 Azimut document holder
- 1 wooden model of the boat
- 1 AZIMUT warranty service booklet
- 2 floating key-rings
- 1 bag (with logo) for storing the manuals
- 1 remote control holder (with logo)
- 1 bag for holding the shower tube
