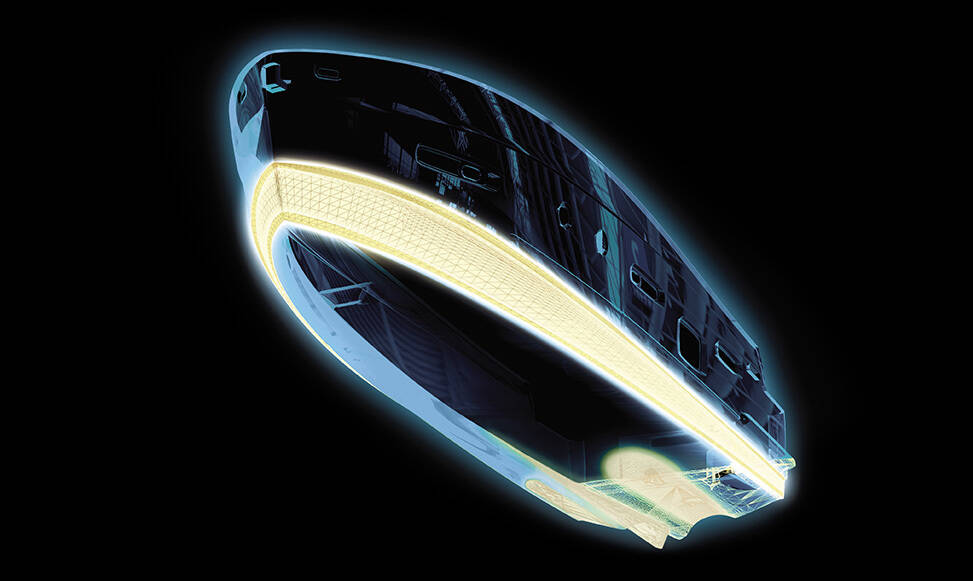

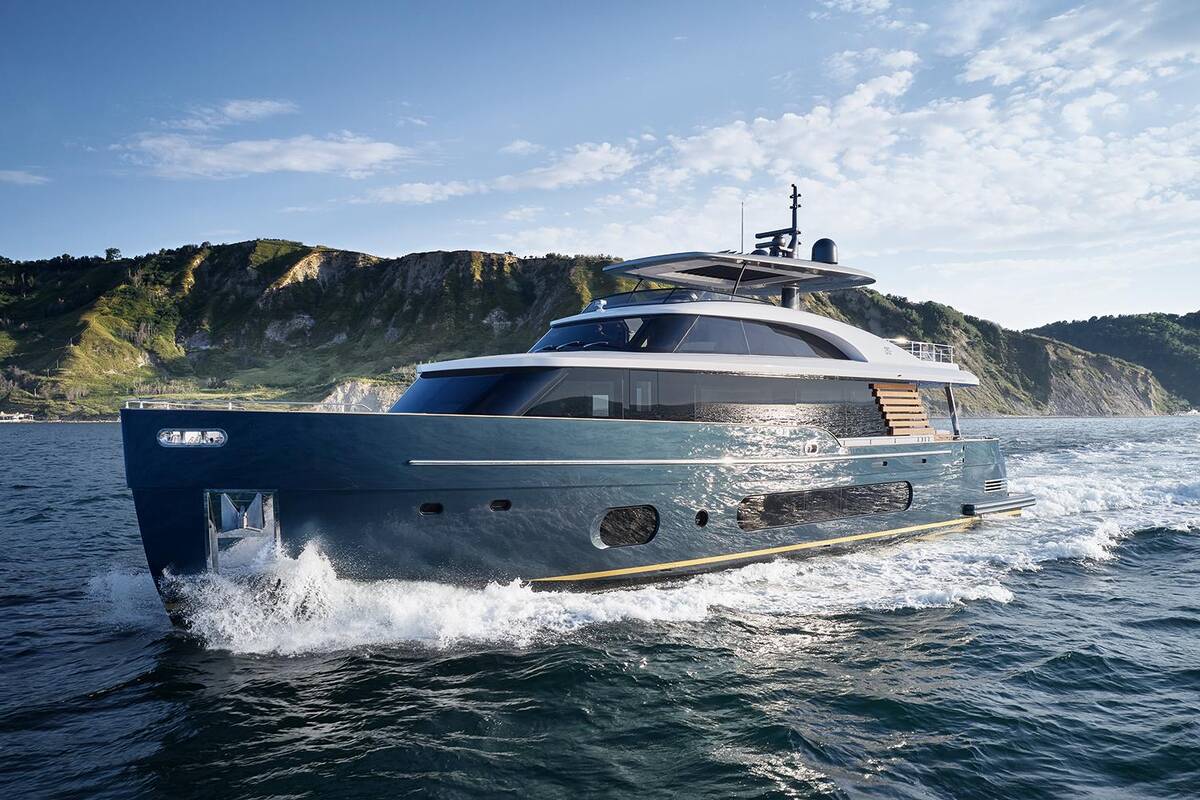

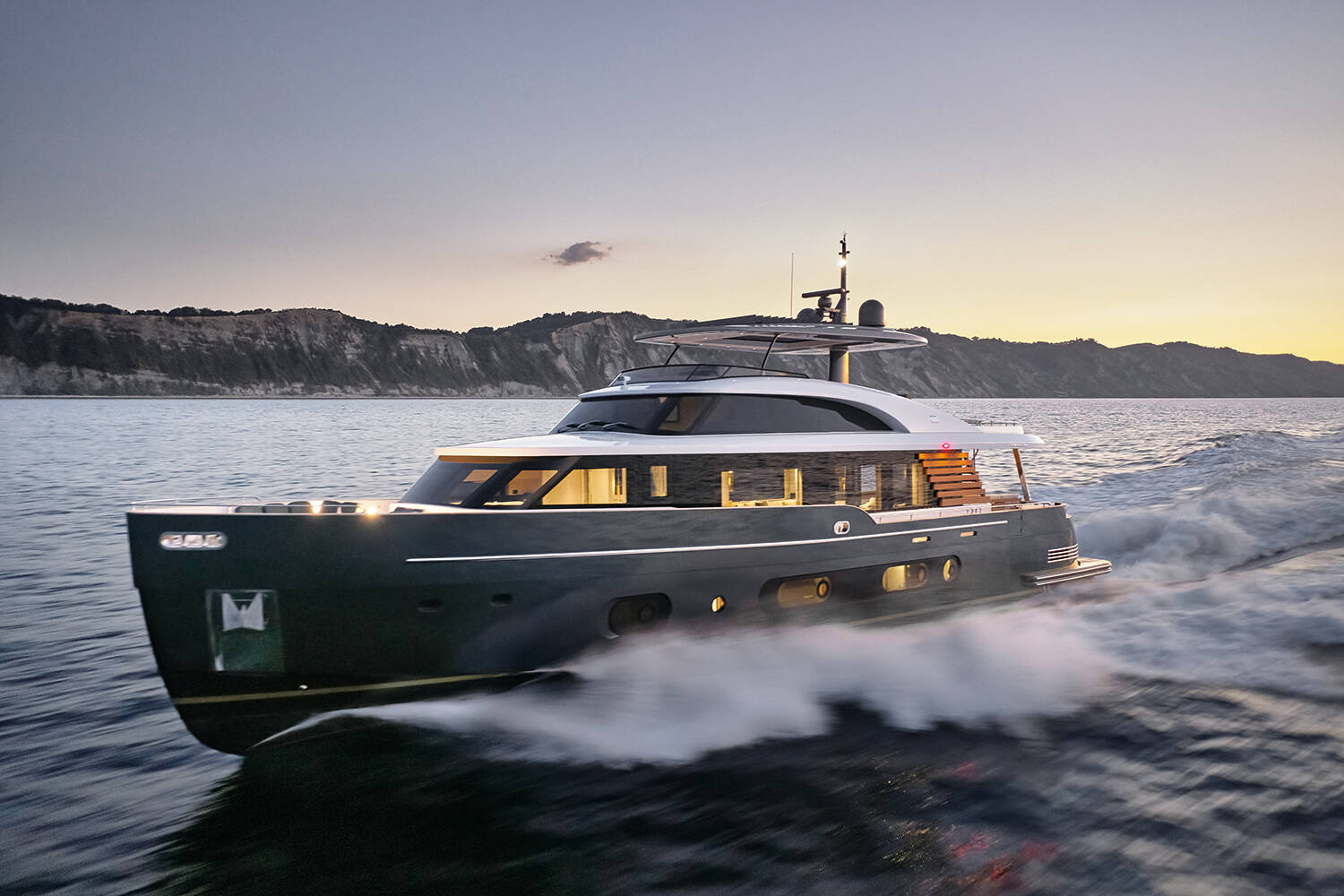

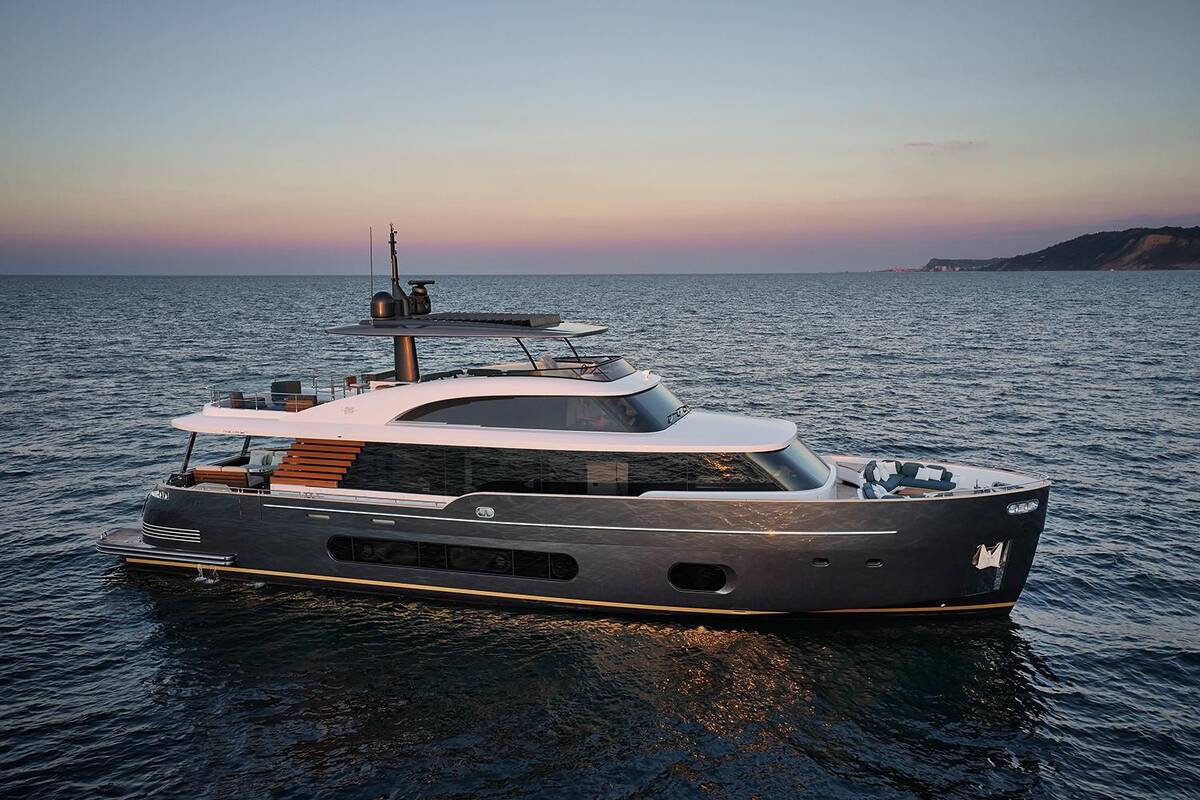

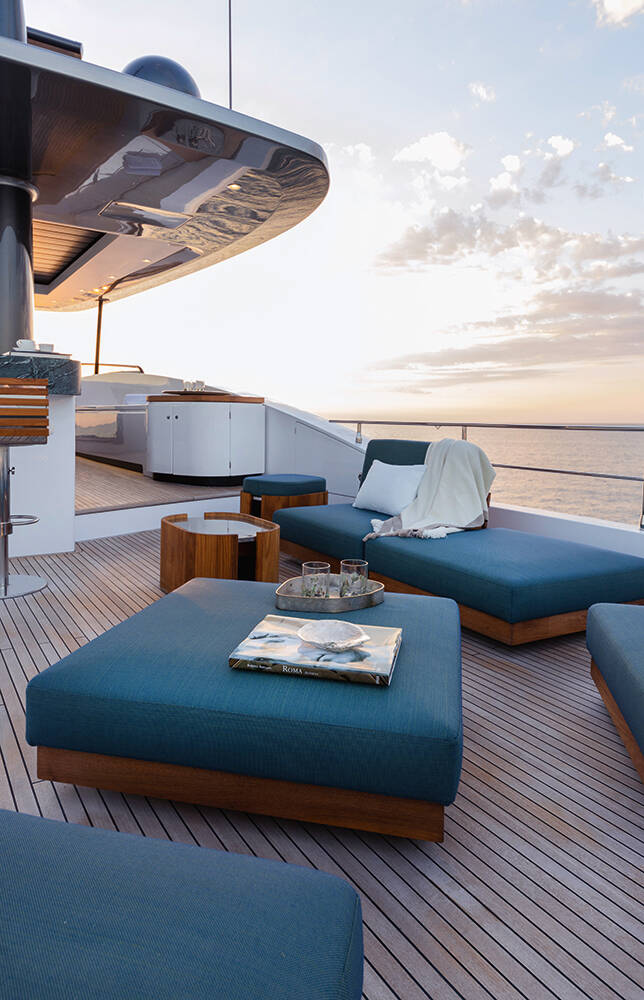

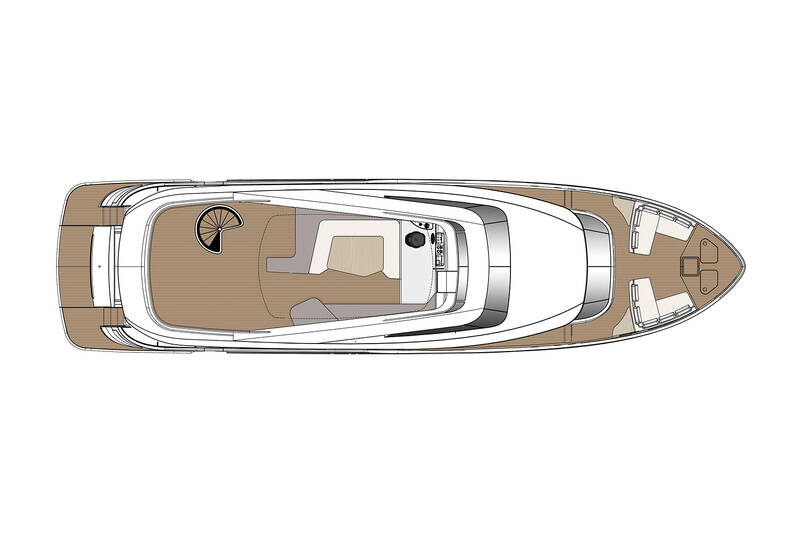

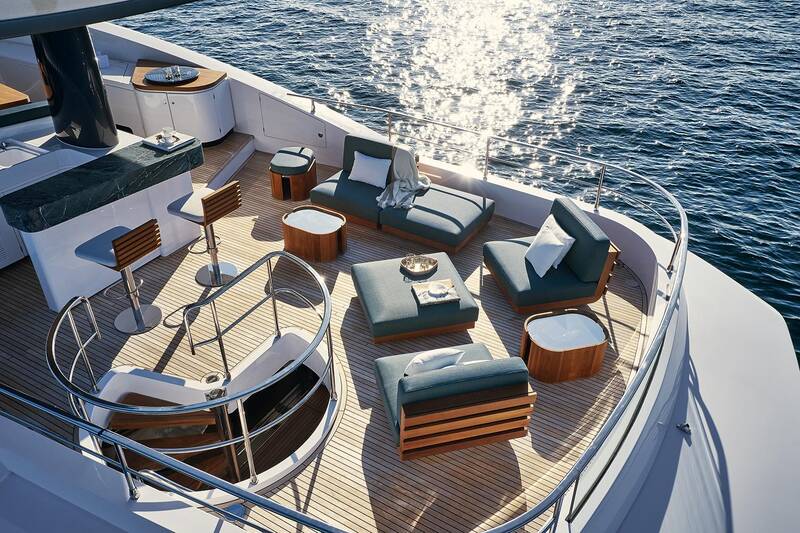

Flybridge

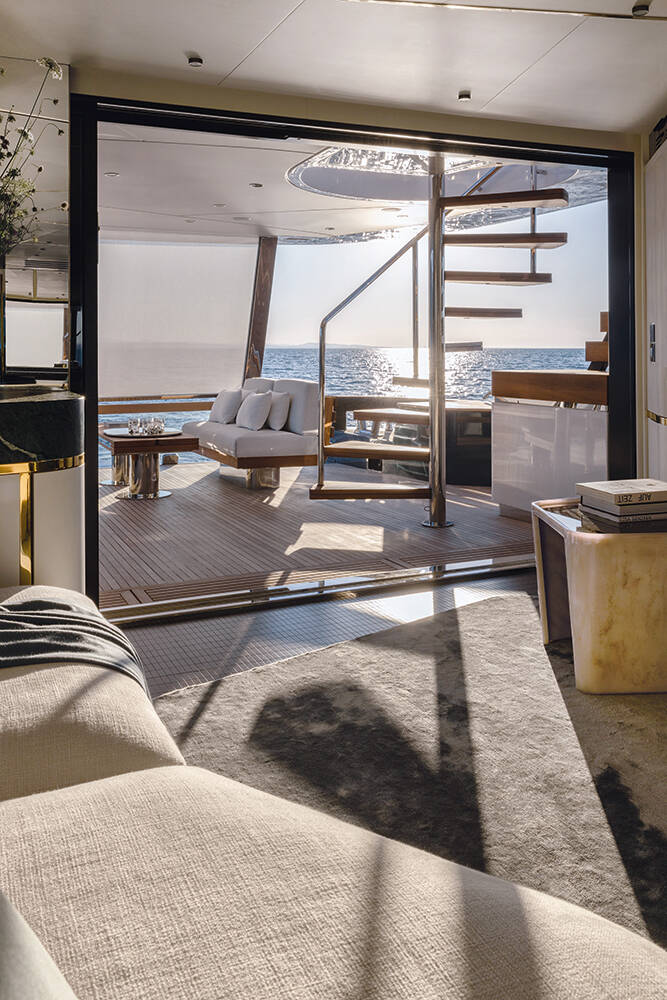

- Access to flybridge from the cockpit, through external spiral steps in steel with teak steps and one handrail, on port side, and from the internal wheelhouse through a companion located at the center of the boat, next to the external dashboard
- Flybridge GRP flooring with anti-slip
- Anti-slip also on fore plane of flybridge in front of the internal dashboard
- Plexiglas flybridge screen with stainless steel frame
- Antenna mast in composite material

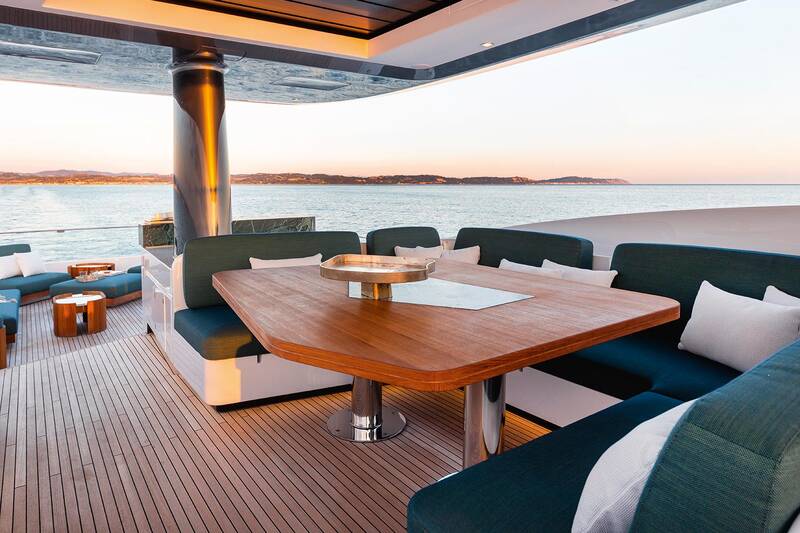

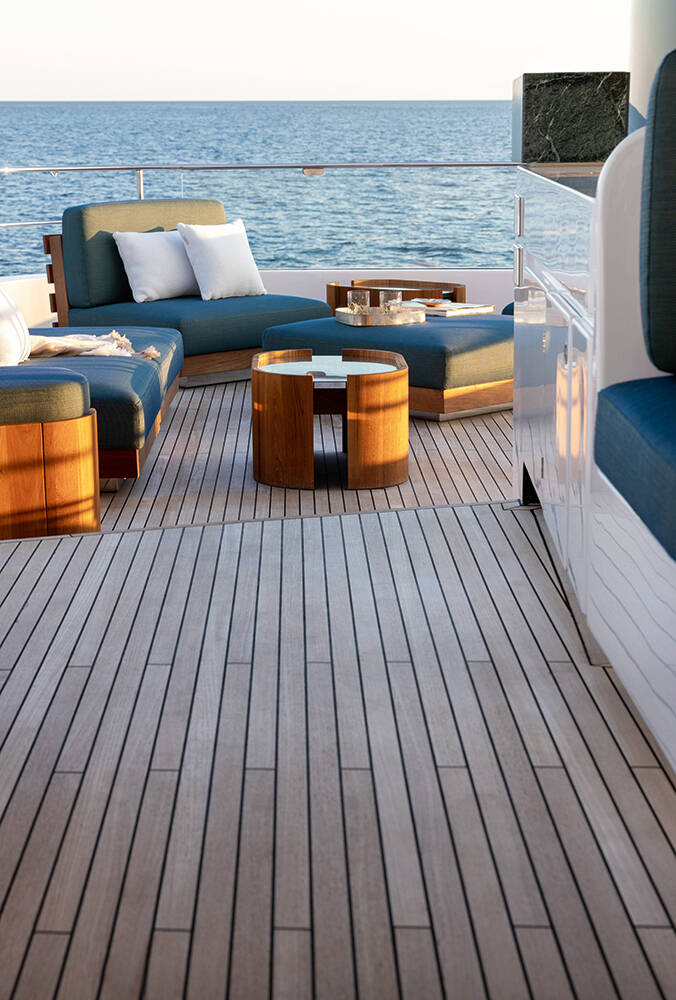

- Dining area: one "C" shaped sofa with backrest and removable cushions for outdoors (along the port bulwark)
- Fix table (dining area), with fix bases
- Storage cabinet along the starboard bulwark
- Flybridge bar cabinet ("L" shaped with mast resting on the longitudinal ele- ment) provided with:
- - Sink built into cabinet with retractable water tap
- - Fridge
- - Waste bin
- Control station: single pilot seating area on port side
- Flybridge dashboard consisting of:
- - MAN 6.5" display for engines
- - Raymarine electronic navigation instruments
- - Engine throttles
- - Steering wheel
- - Communication systems (VHF)
- - Bow thruster controls
- - audible alarm controls

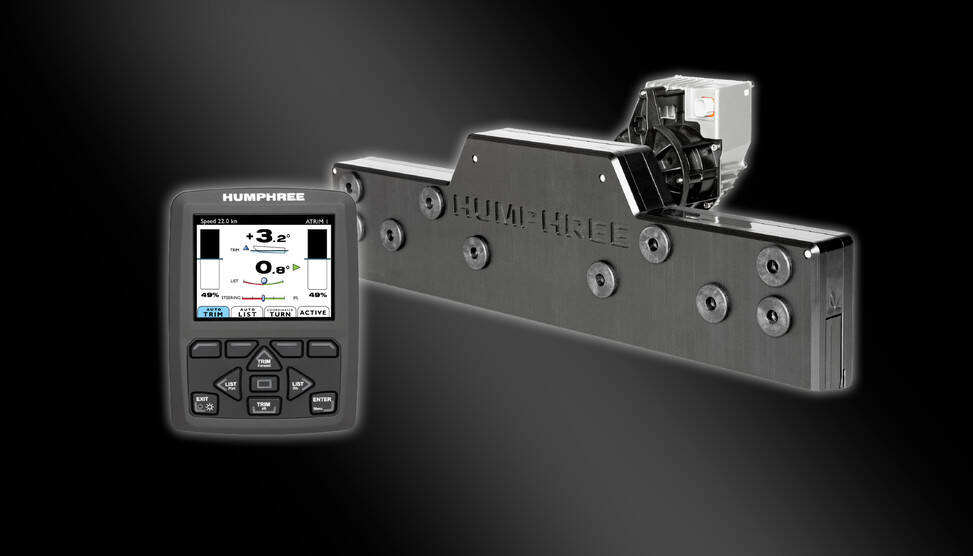

- - Trim tab (interceptors) controls
- - 12 V socket
- - Chain meter counter
- Scuppers
- Compliant navigation lights
- Manual searchlight
- Two speakers

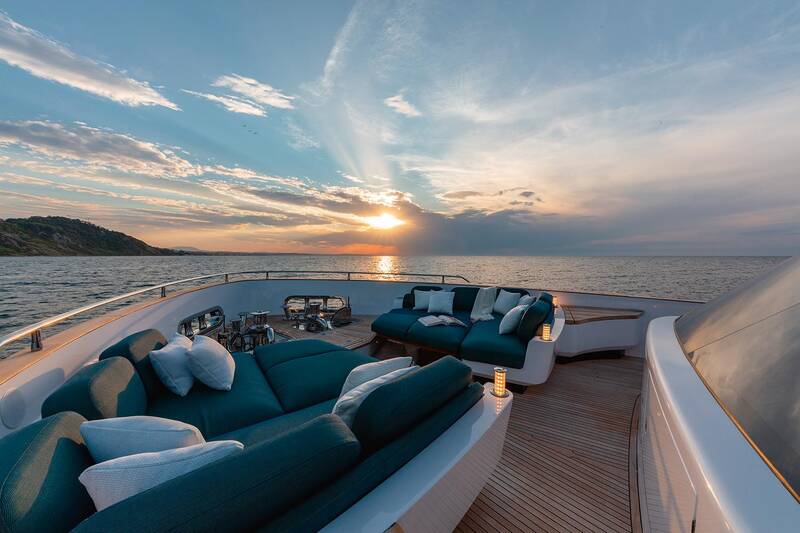

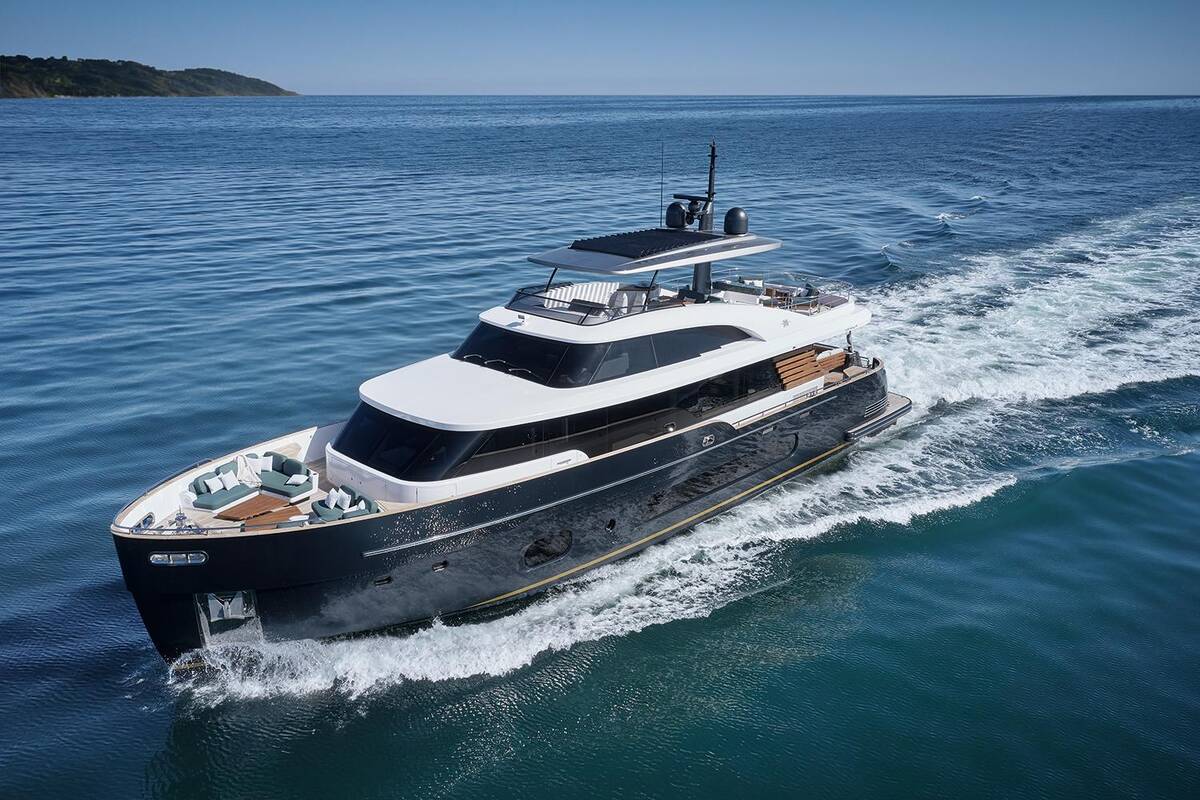

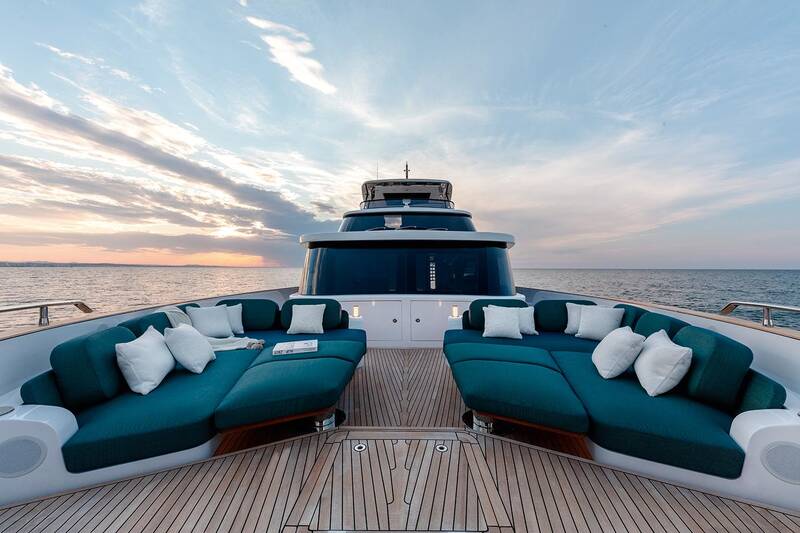

Bow
- Chain locker accessible through central hatch, with internal lighting and drainage
- Fenders storage in deck lockers (under the deckhouse windows and in the chain locker)
- Chain washing system
- Two "L" shaped fore sofas with removable leatherette cushions for outdoors
- Stainless steel handrails and stainless steel wine rack built in the fore sunbed area
- Protective cover for external cushions
- Three electric windscreen wipers
- Teak floor (excluding mooring area)
- Scuppers
- Two speakers

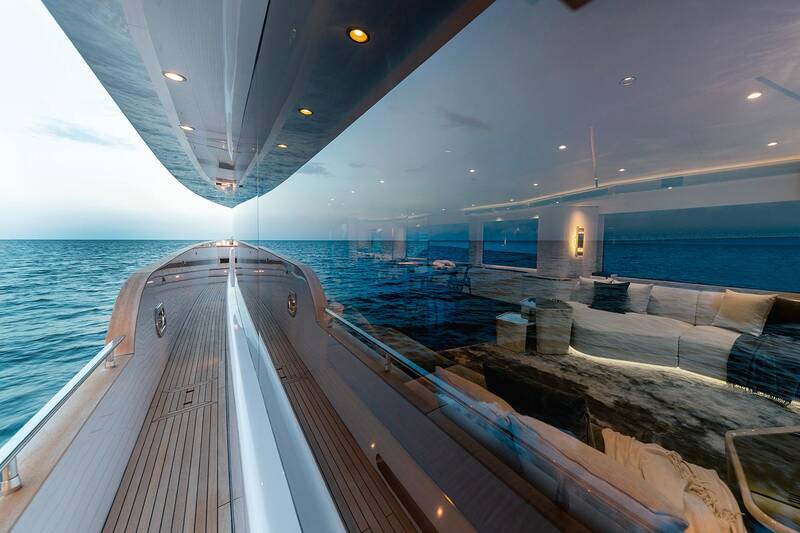

Walk arounds
- Four lockers located in the fore part of the deckhouse under the window
- One side manual pantograph door on port bulwark, to access the galley
- Refueling plugs on both walk arounds
- Fresh water filling plug on each walk around
- Black water discharge on starboard walk around
- GRP side boarding gates in cockpit area
- Teak floor
- Stainless steel handrail
- Teak gunwale
- Walkway lights

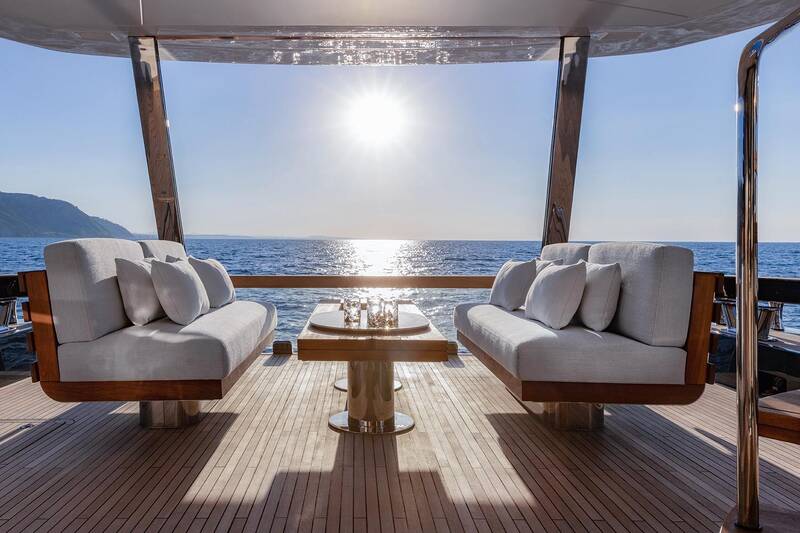

Cockpit
- Accessible through two stainless steel aft gates (one on each side)
- Two longitudinal seating areas with backrests and removable cushions
- Protective cover for external cushions
- Fix teak table (in dining area) arranged longitudinally
- Cockpit's bar cabinet, positioned on star- board side, composed of:
- - Sink built into cabinet with retractable water tap
- - Fridge
- upper storage compartment
- cover top
- Cockpit cabinet, positioned on port side, composed of:
- - compartment for firefighting hose and upper storage compartment
- Saloon access door, in steel with tempered glass, composed of four flat panels three of which sliding to the starboard side.
- Engine room watertight access door, with teak finishing
- Line holding locker on mooring island closed by a corian hatch
- Cockpit floor in teak
- LED lighting
- Two speakers on ceiling
- Scuppers
- Two stainless steel flybridge support poles, Ø 90 mm (3.54 in)
- Gangway extensible system, three positions, maximum capacity 150 kg (330.7 lb) operated through dedicated 24 V DC electro-hydraulic control unit

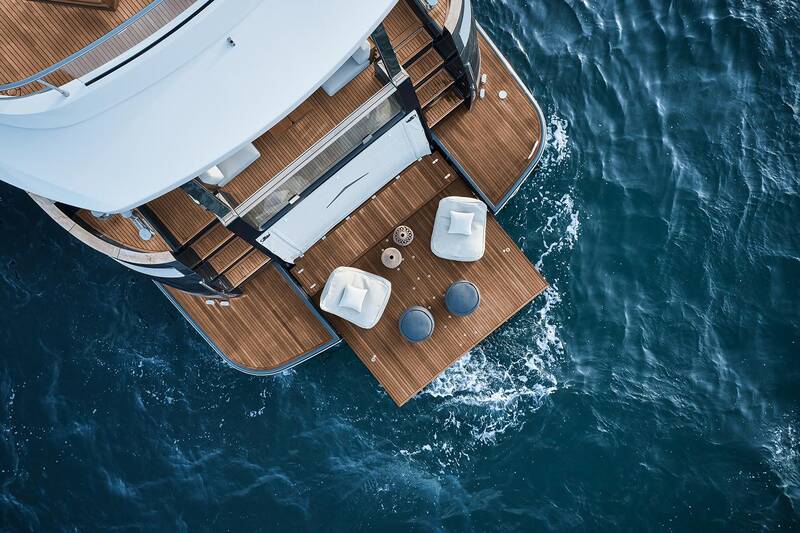

Platform/garage
- Access from cockpit via two GRP stairways with teak steps
- Two stainless steel boarding gates
- Two stainless steel handrails for climbing into the cockpit
- Pivoting door to access the garage, size:
- - closed: floor 2970 x 1190 mm (9' 8.9'' x 3' 10.8'')
- - open: floor 2970 x 2410 mm (9' 8.9'' x 7' 10.8’’)
- Platform hatch, rated capacity 1000 kg (2204.6 lb), supplied at 230 V AC
- Manual swimming ladder, telescopic, recessed in the platform, starboard side
- External shower head, on starboard side
- Stern platform floor in teak
- Service compartment on starboard side of the garage with access from foldaway ladder

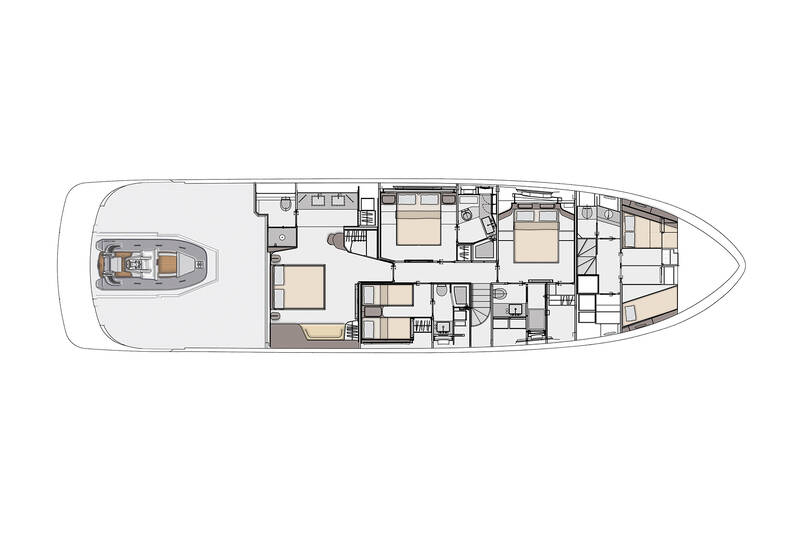

GARAGE (up to serial no. 016)
- GARAGE WORKING DIMENSIONS: [depth x width x height] 4.40 m x 2.70 m x 1.15 m (14' 5'' x 8' 10.2'' x 3' 9.2'')
- HYPOTHETICAL TENDER (OPT):
- - Azimut-Pirelli 390 dimensions 3.90 m x 2.00 m (12' 10'' x 6' 6.7’')
GARAGE (serial no. 018 onwards)
- GARAGE WORKING DIMENSIONS: [depth x width x height] 4.50 m x 2.70 m x1.15m(14’9”x8’10.2”x3’9.2)
- HYPOTHETICAL TENDER (OPT):
- - Williams 435 Sport Jet Low Profile with deflated tubes, size 4.13 m x 1.76 m x 0.85 m (13’ 6.5” x 5’ 9.2” x 2’ 9.4”)
Steering system
- Located in elevate position from the saloon, on starboard side, it is accessible through:
- Ladder located forward of the saloon
- Ladder from the flybridge located on starboard side of the flybridge wheelhouse
The wheelhouse includes:
- Helm seat
- Steering wheel
- Internal dashboard consisting of:
- - Raymarine electronic navigation instruments
- - MAN engines control panels built in the Raymarine display
- - Engine throttles
- - Bow thruster controls
- - Trim tab controls (intruder)
- - audible alarm controls
- - magnetic compass
- Communication systems (VHF)
- 12 V socket
- Carpeted floor
- Ceilings, mullions, and window carters
- LED technology lighting
- Air conditioning outlets
- Emergency panel

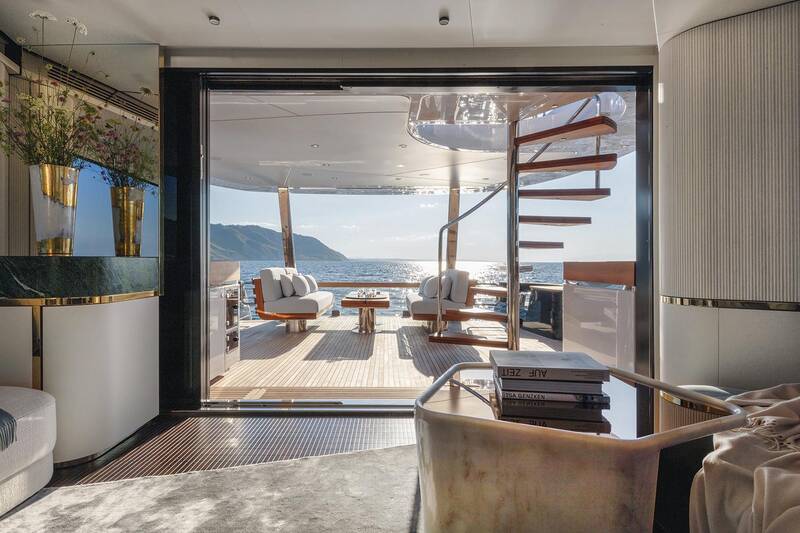

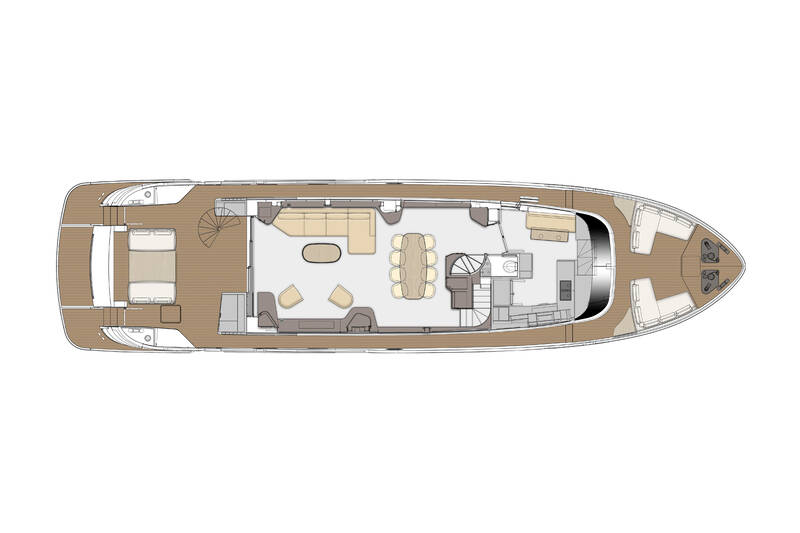

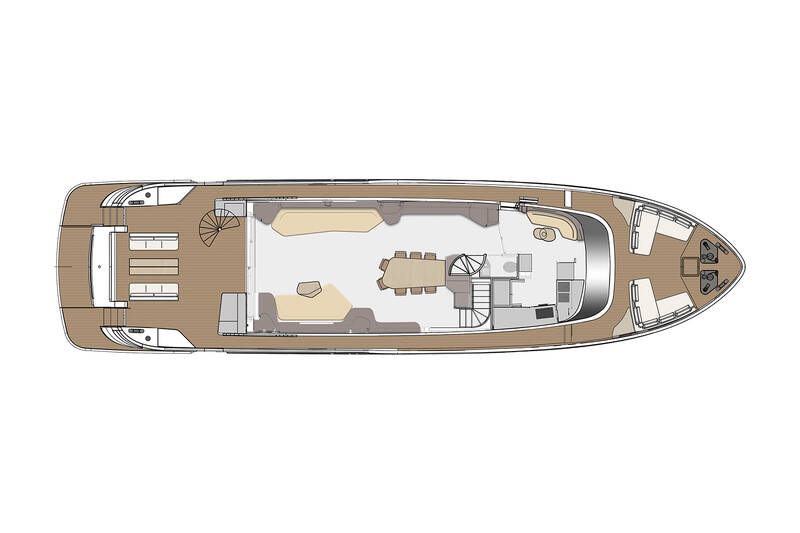

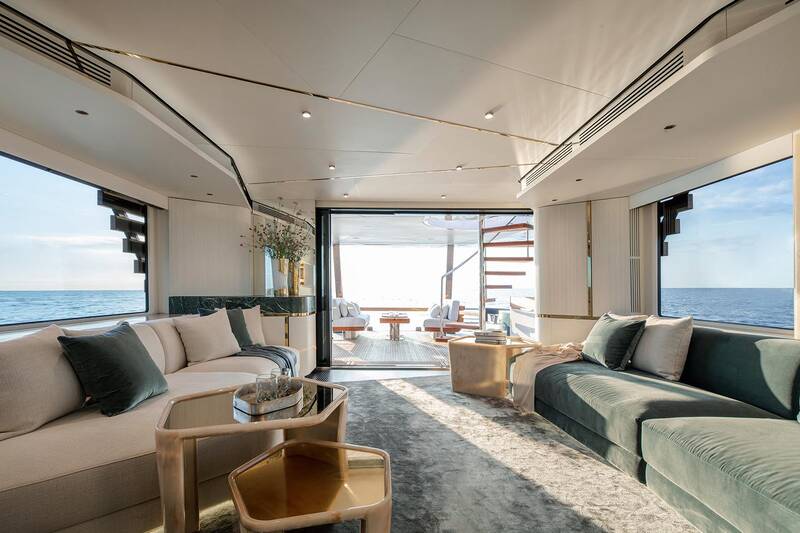

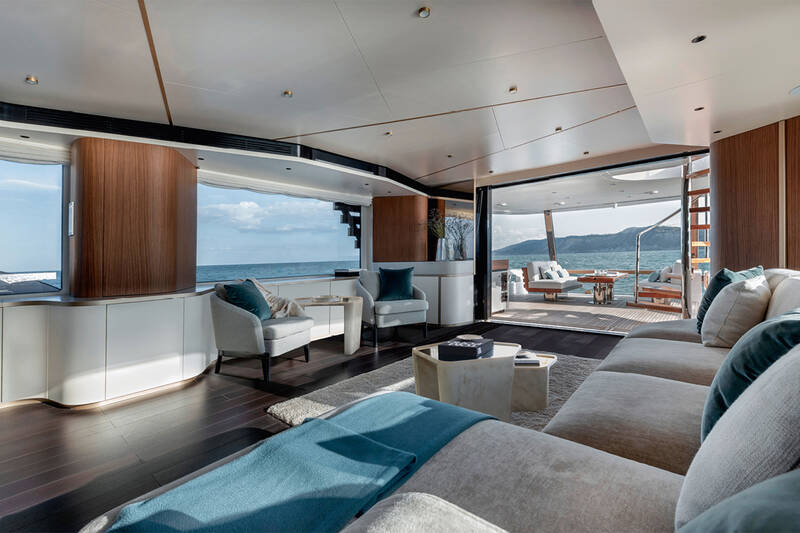

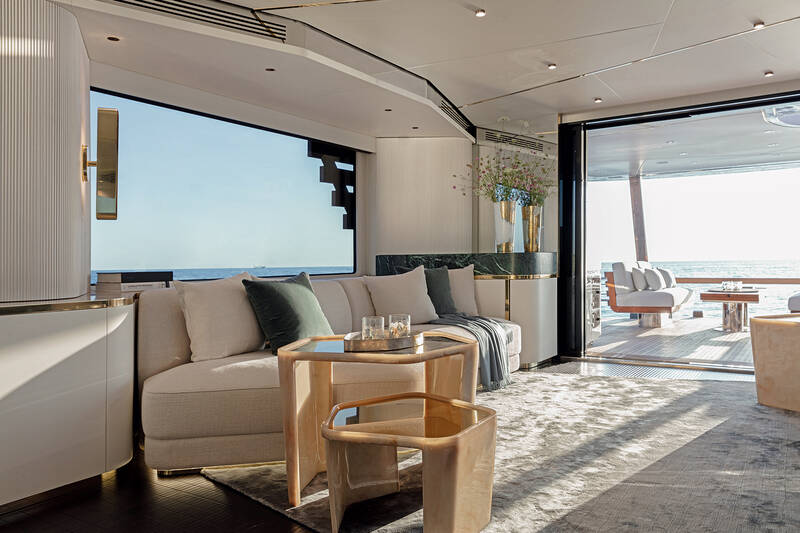

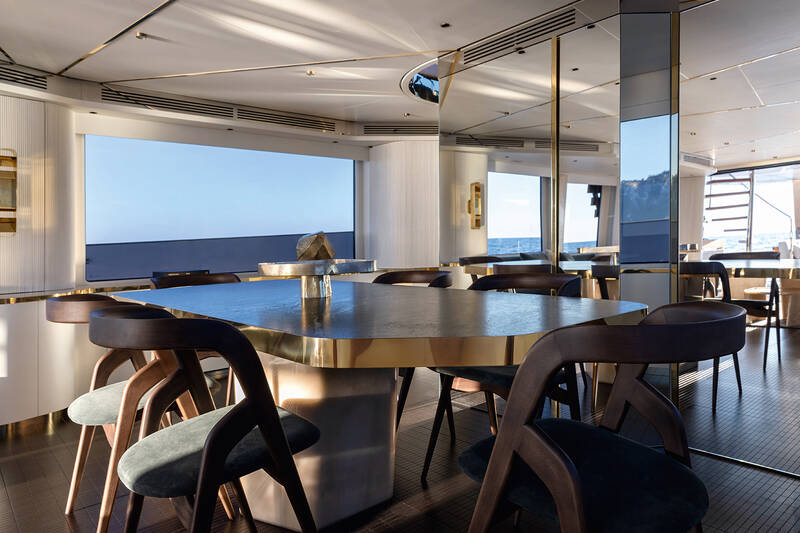

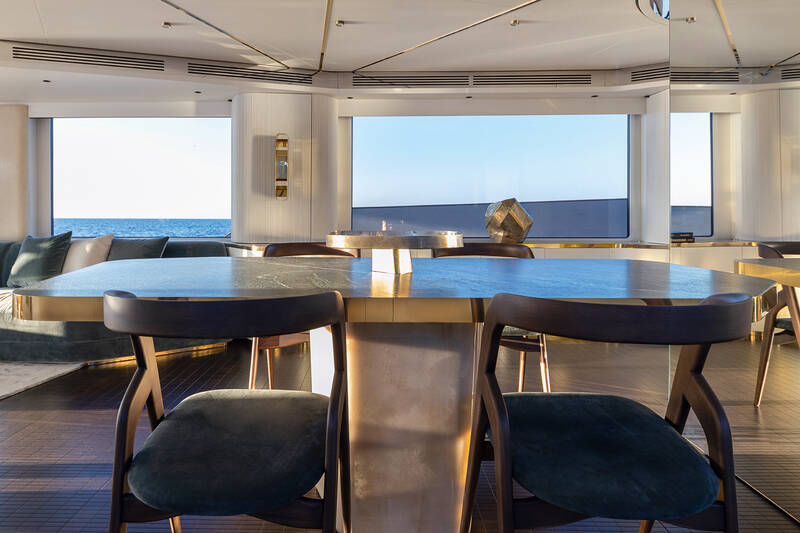

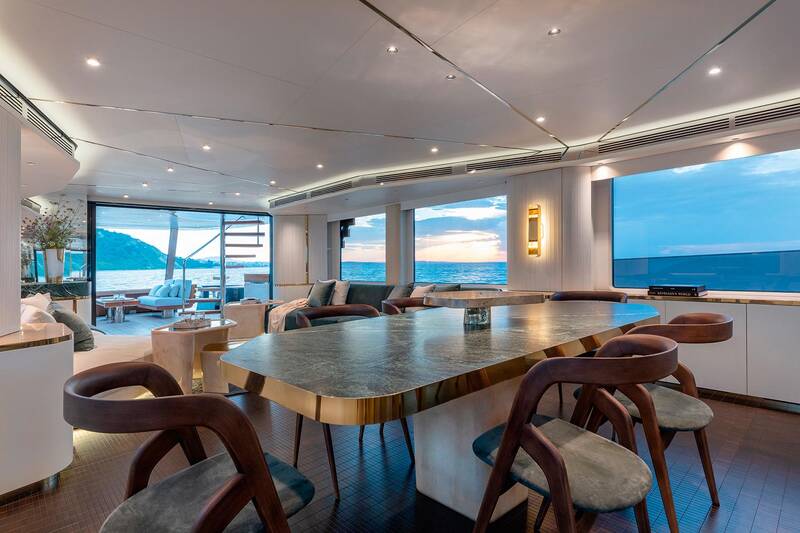

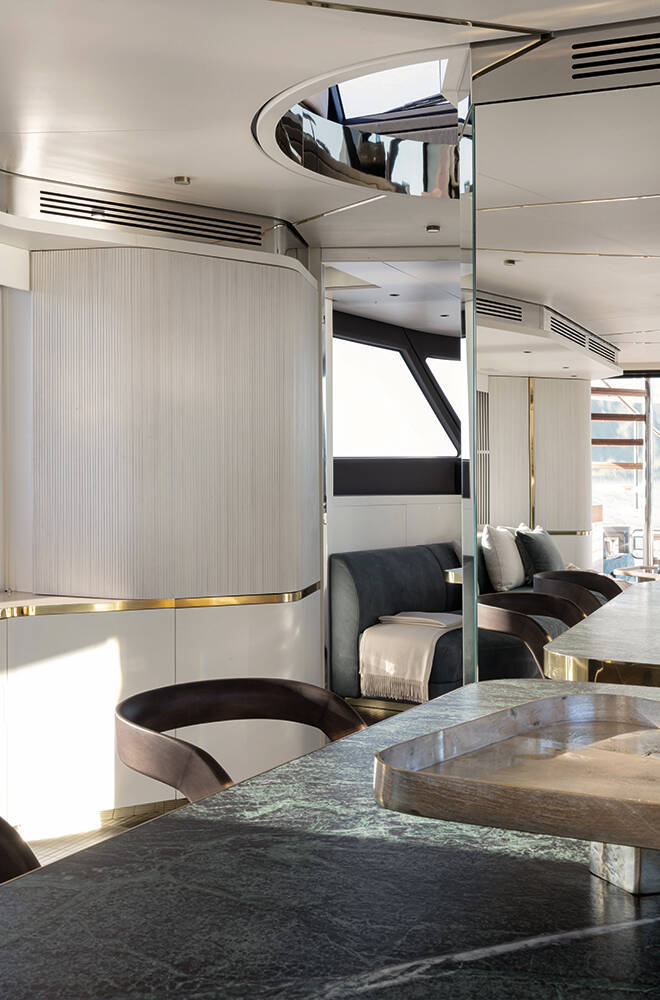

Saloon / Dining room
- Located amidships it is accessible from the cockpit through a glass door with four panels, three of which sliding to the starboard side
- It is composed of:
- One four-seater "L" shaped sofa, placed longitudinally on port side
- Two armchairs on starboard side, in front of the sofa
- One table
- TV Lift with TV set
- Carpeted floor
- Lacquered ceiling
- Ceiling-mounted recessed LED spotlights
- Dining table
- Eight chairs
- Sockets
- Air conditioning control panel
- Air conditioning outlet grids built in the internal furnishing
- Roman blinds
- Saloon door curtain in fabric
- Wheelhouse access ladder located at the center of the fore part
- Lower deck access ladder located at the bow on starboard side
- Day toilet access door
- Two hinged doors located forward on port side, for access to the galley
Galley
- Full-beam, located forward of the saloon, with two accesses:
- On port side of the saloon fore part, through a door with two hinged panels
- From port walk around through a manual pantograph door
- It is composed of:
- Wooden effect laminated floor
- Laminate worktop
- Stainless steel double sink with faucets
- 419 l (14.8 cu.ft) fridge + 247 l (8.7 cu.ft) freezer
- Fridge (130 l (4.6 cu.ft)) under the top
- Four-burner induction range
- Extractor hood
- Oven
- Garbage can
- Storage wall cabinets on starboard bulwark
- Storage column at the center of the boat
- Crew relax area with sofa and table by the port bulwark
- Main electric panel
- Sockets
- LED technology spotlights
- Air conditioning system control panel
- Air conditioning outlet grid built in the internal furnishing
- Crew zone access ladder, fore
Day toilet
- Located at the center of the fore area of the saloon, accessible through a sliding door.
- It is composed of:
- Washbasin with marble top
- Mixer tap
- Mirror
- Toilet
- LED lighting
- Walnut floor, in planks
- Air extractor
- Socket

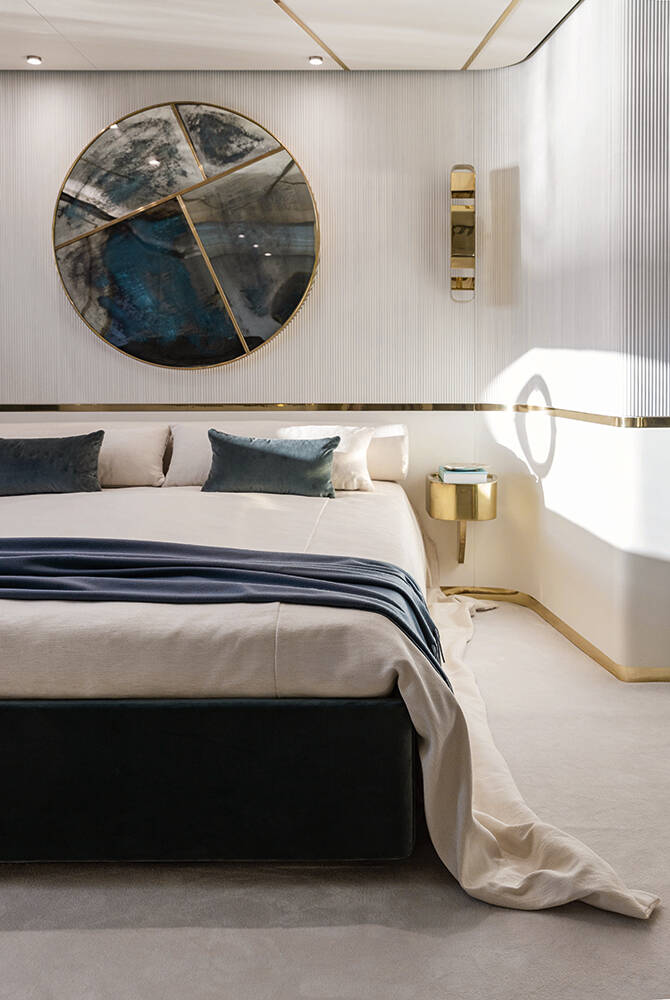

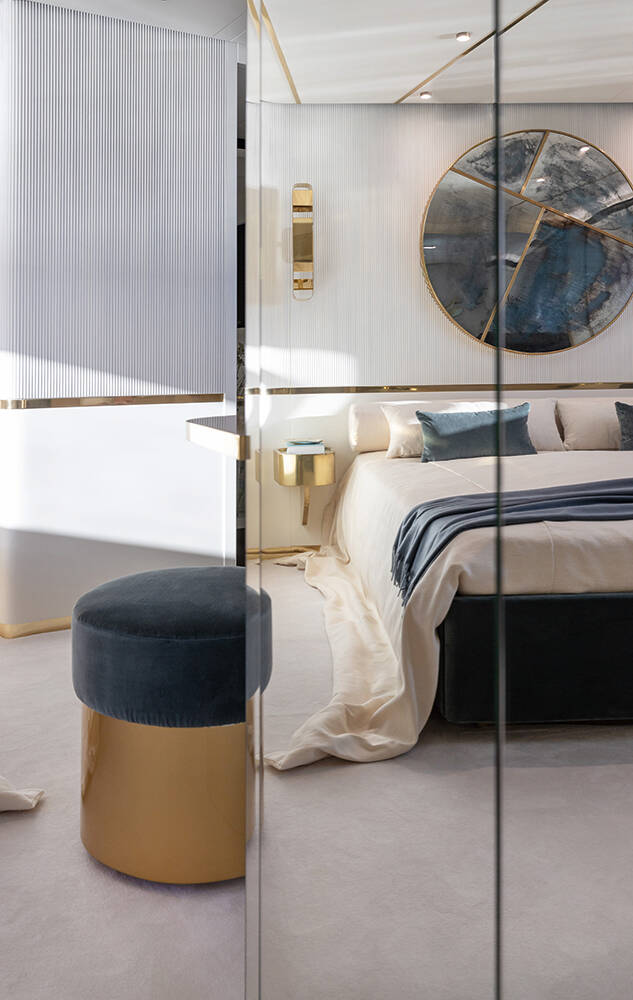

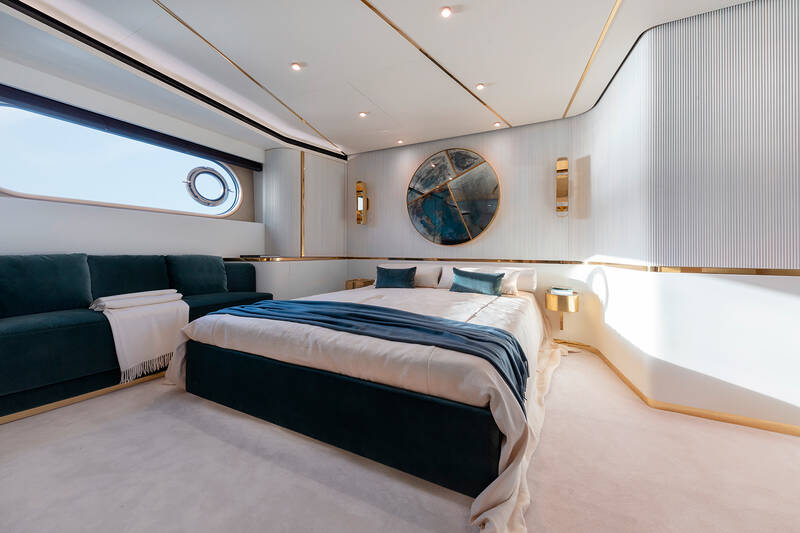

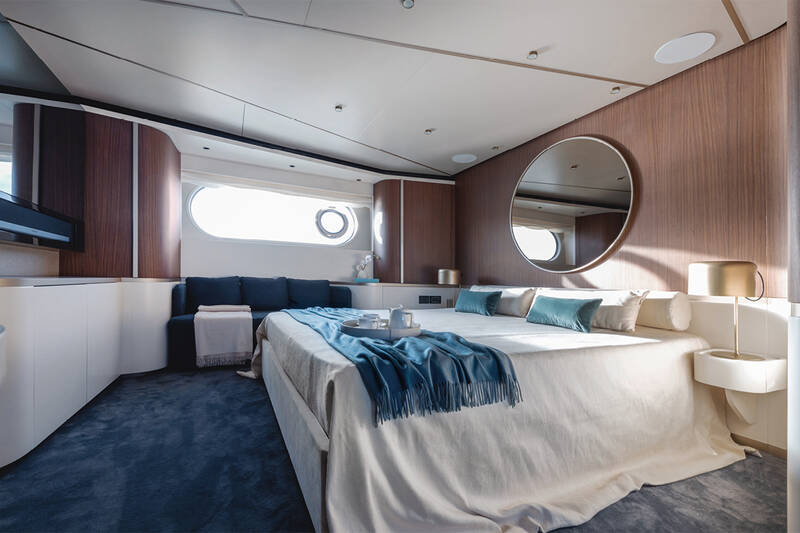

Owner’s cabin
- Full beam owner's cabin, midship. It is composed of:
- Central entrance with hinged door
- Walk-in wardrobe with hanger bar, chest of drawers, internal lighting, and full-height mirror
- Vanity with pouf, located on walk-in wardrobe wall
- Double bed located by the aft bulkhead, starboard side, with foldaway bed plane and container locker
- Mattress, pillows and bedspread
- Two bedside tables
- Reading lights: two wall lights
- Two seater sofa by the starboard bulwark
- Wardrobe on starboard side
- Direct access to the head on port side
- Wardrobe on port side forward of the head area
- Fix side windows on each side of the cabin with built-in portlights
- Venetian blinds
- LED technology main lighting
- LED technology courtesy lighting
- Lacquered ceiling
- Lacquered and wood upholstered bulwarks
- Carpeted floor
- Sockets
- TV
- Two speakers on ceiling
- Air conditioning system control panel
- Air conditioning outlet grids built in the internal furnishing

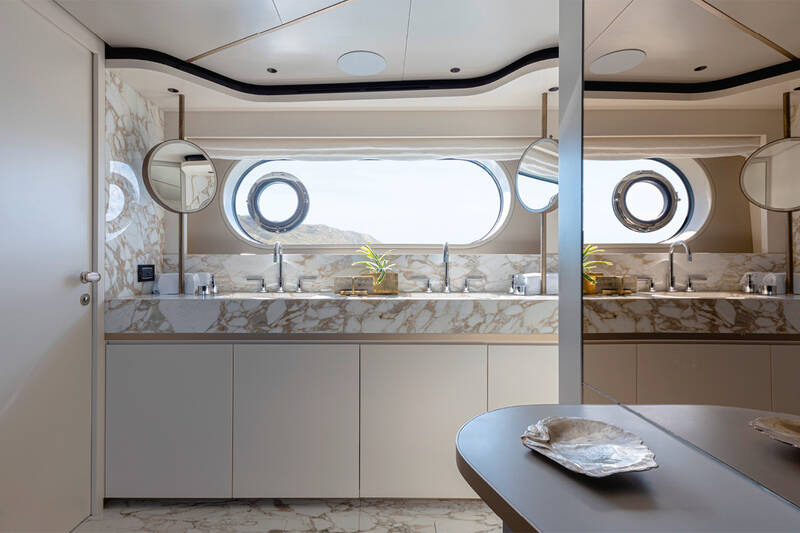

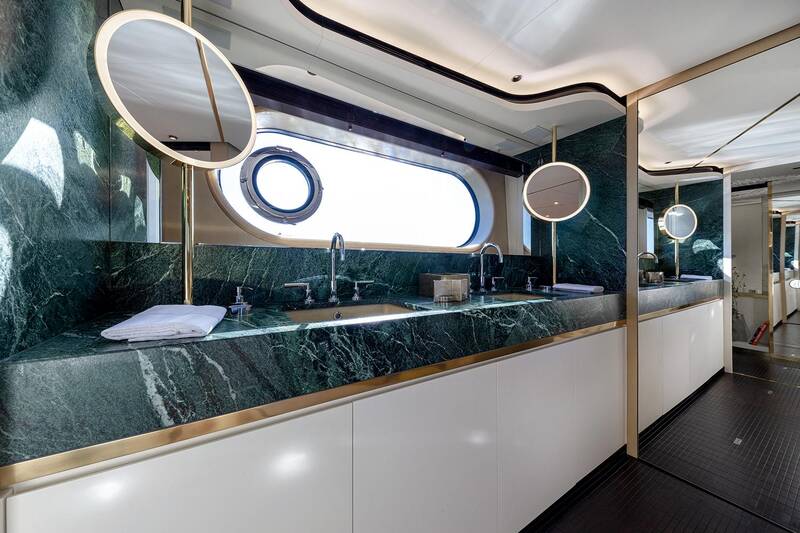

Owner's head
- Located on port side of the owner's cabin. It is composed of:
- Double washbasin with open marfil creme marble top on port bulwark
- Washbasin cabinet with three drawers
- Steel mixers
- Mirrors
- Lighting with LED spotlights above washbasins
- Direct lighting with cockpit ceiling-mounted recessed spotlights with LED technology
- Venetian blind
- Wooden flooring
- Sockets
- Toilet and shower enclosure separate by lacquered hinged door:
- - Toilet
- - openable portlight
- - Venetian blind
- - suction grating
- - shower enclosure with glass access door
- - shower enclosure laminate walls
- - removable wooden grating
- - thermostatic mixer
- - hand-held and ceiling-mounted shower head
- - soap holders
- - watertight spotlights
- A/C outlet grid
- Air extractor
- Head accessories

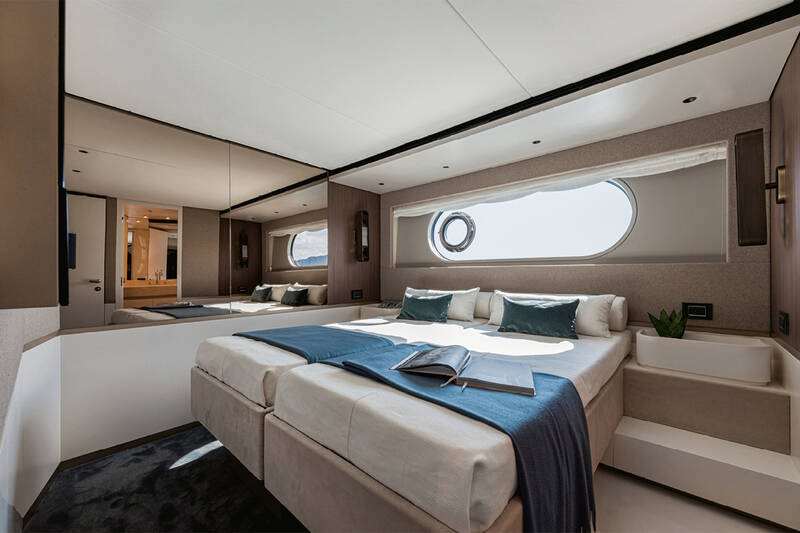

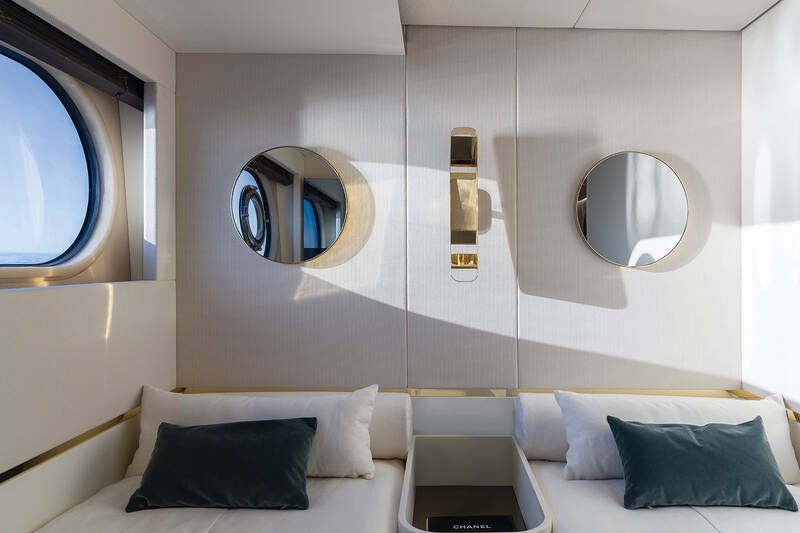

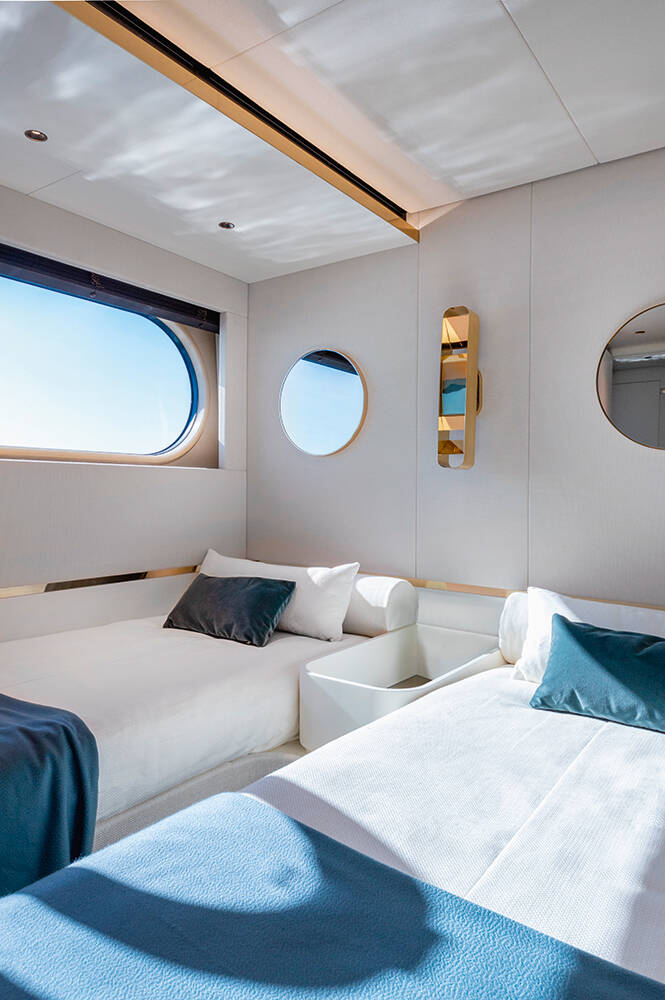

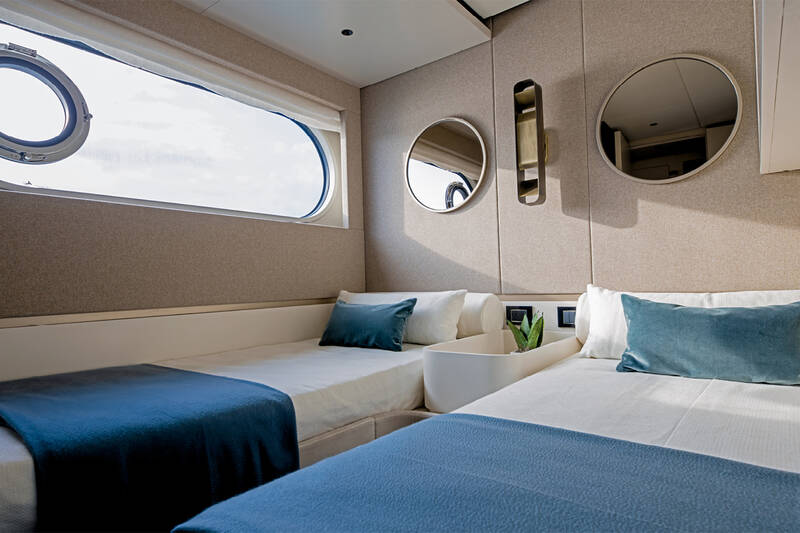

Starboard side guest cabin
- Located along the central corridor, starboard side
- It is composed of:
- Two single beds positioned longitudinally with foldaway bed plane and storage locker
- Two mattresses, two pillows, and two bedspreads
- One wall lighting
- One plane with anti-roll between the beds
- One wardrobe with hanger bars and two drawers
- Panoramic fixed window with built-in portlight
- Venetian blind
- LED technology lighting
- Fabric-upholstered ceiling
- Wooden and fabric upholstery
- Carpeted floor
- Sockets
- Two speakers on ceiling
- Air conditioning system control panel
- Air conditioning outlet grid built in the internal furnishing
- Direct access to the head through internal hinged door
Starboard guest head
- Located fore of the starboard guest cabin It is composed of:
- Independent access from starboard guest cabin
- Washbasin with marfil cream marble top
- Faucets
- Washbasin cabinet with storage panels and one drawer
- Bulwark side storage with sliding mirror
- Storage on fore bulkhead
- Toilet
- Shower enclosure with:
- - glass access door
- - wooden grating
- - shower enclosure walls covered with laminate
- - hand-held and ceiling-mounted shower head
- - thermostatic mixer
- - soap holder
- - two watertight spotlights
- - suction grating
- Openable round portlight
- Venetian blind
- LED lighting
- Wooden flooring
- Socket
- Head accessories
- A/C outlet grid
- Air extractor

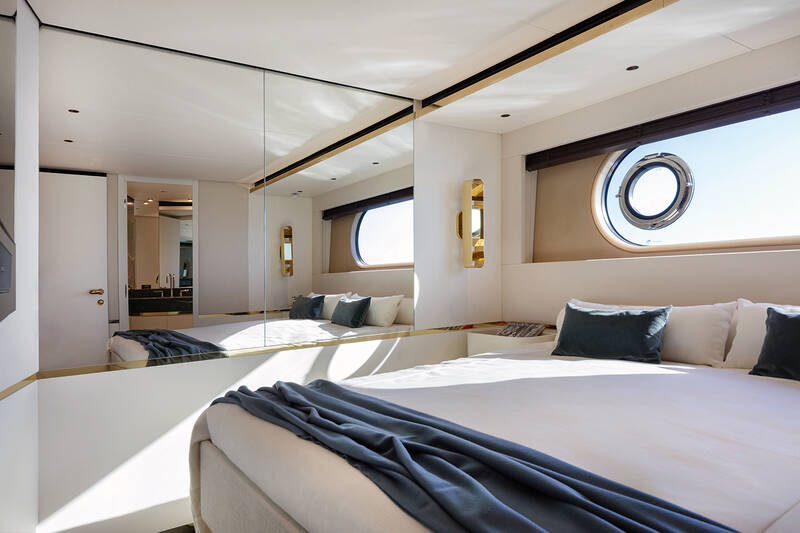

Port side guest cabin
- Located along the central corridor, port side It is composed of:
- Double bed arranged crosswise
- Mattress, pillows and bedspread
- Reading lights: two wall lights
- Two planes with anti-roll at the sides of the bed
- One wardrobe with hanger bars and two drawers on the fore side of the cabin
- Aft bulkhead with mirror panel above the boiserie
- Fore upholstered bulkhead
- Panoramic fixed window with built-in portlight
- Venetian blind
- LED technology lighting
- Upholstered ceiling
- Wooden upholstery
- Carpeted floor
- Sockets
- Two speakers on ceiling
- Air conditioning system control panel
- Air conditioning outlet grid built in the internal furnishing
- Direct access to the head through internal hinged door
Port guest head
- Located fore of the port guest cabin It is composed of:
- Independent access from port guest cabin
- Washbasin with marfil cream marble top
- Faucets
- Washbasin cabinet with storage panels and one drawer
- Mirror
- Storage cabinet on bulwark side
- Toilet
- Shower enclosure with:
- - glass access door
- - wooden grating
- - shower enclosure walls covered with laminate
- - hand-held and ceiling-mounted shower head
- - thermostatic mixer
- - two watertight spotlights
- suction grating
- Openable round portlight
- Venetian blind
- LED lighting
- Wooden flooring
- Socket
- Head accessories
- A/C outlet grid
- Air extractor

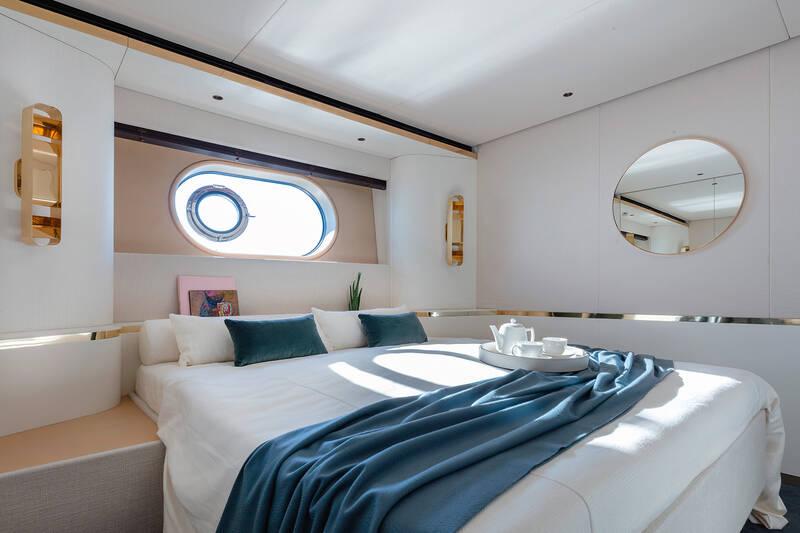

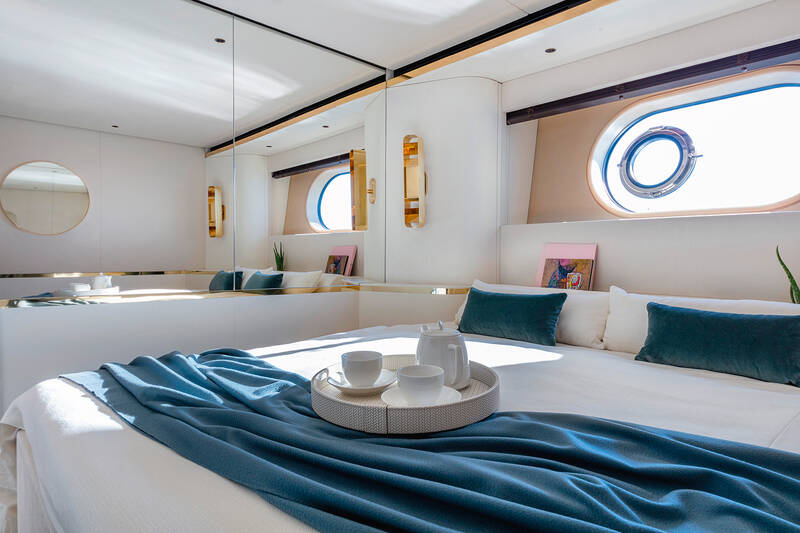

VIP cabin
- Located forward, full-beam, accessible through the door on starboard side of the lower deck access ladder
- It is composed of:
- Transversal double bed on port side with foldaway bed plane and locker under- neath
- Mattress, pillows and bedspread
- Two reading lights
- Two LED wall lights on headboard
- Two storage compartments with power sockets at the head of the bed
- Dressing on starboard side with hinged door, hanger bar, internal lighting, and chest of drawers
- One fixed panoramic window
- One round openable portlight, built in the panoramic window
- Venetian blind
- Lighting with recessed LED spotlights
- Upholstered ceiling
- Wood-upholstered bulwarks
- Aft bulkhead with upper mirror panel
- Fore upholstered bulkhead
- Carpeted floor
- Sockets
- Two speakers on ceiling
- Air conditioning system control panel
- Air conditioning outlet grid built in the internal furnishing
- Direct access to the head through inter- nal hinged door
VIP head
- Located on starboard side of the VIP cabin It is composed of:
- Independent access from VIP cabin
- Washbasin cabinet with marfil creme marble top and riser
- Faucets
- Cupboards above washbasin with mirror doors
- Toilet
- Shower enclosure with:
- - glass access door
- - removable wooden grating
- - shower enclosure walls covered with laminate
- - hand-held and ceiling-mounted shower head
- - thermostatic mixer
- - soap holders
- - two watertight spotlights
- - suction grating
- Openable round portlight
- Venetian blind
- LED lighting
- Wooden flooring
- Socket
- Head accessories
- A/C outlet grid
- Air extractor

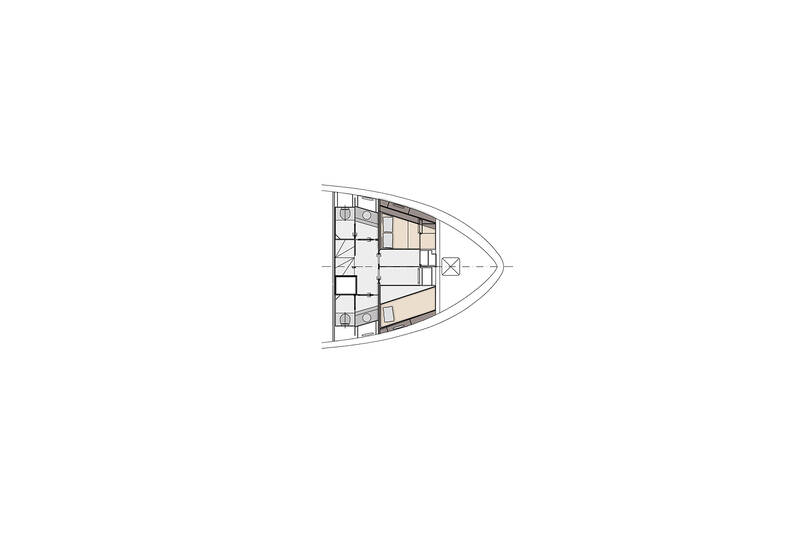

Crew room
Crew area
- The crew area is accessible through an internal staircase located forward of the galley
- It is composed of:
- Shared head on port side
- Captain's cabin on port side, equipped with full size single bed
- Crew cabin, starboard side, with two bunk beds
- Shared storage area on starboard side
- Column with washing-drying machine and upper storage
- Storage under the staircase
- Both cabins have:
- Carpeted floor
- Wardrobe
- Chest of drawers
- Air conditioning system control panel
- Socket
- LED lighting
- Reading light
- Two speakers on ceiling
- Mattress, pillows and bedspread
Crew head
- The crew area is provided with shared head dressing, shower enclosure and separate toilet.
- The head is composed of:
- One washbasin
- One faucet
- LED lighting
- Socket
- Head accessories
- Toilet and shower enclosure separate by hinged door:
- - Toilet
- - cabinet above the toilet
- - wooden grating
- - shower enclosure curtain sliding on guide
- - shower head with flexible pipe
- - thermostatic mixer
- - shower enclosure walls covered with laminate
- - soap holder
- LED lighting
- suction grating
Electric system
Main characteristics
- Shore-powered power supply
- DC electric panel: Installed on fore bulkhead of the engine room
- AC electric panel: Installed on fore bulkhead of the engine room
- Auxiliary electric panel: installed in the galley
- Emergency control panel: Installed in the wheelhouse
- Battery cut-out / fire extinguishing control panel: located in the cockpit ● Onboard voltages:
- - 230V-50HzAC
- - 24 V DC from battery set
- - 12 V DC from battery set and AC/DC voltage reducer
Galvanic current insulation
- Zinc anodes
Generator
- Two KOHLER single phase generators
- -18 kW/ 230V AC - 50Hz for EU system
- -21kW 110V AC - 60Hz for USA system
- Soundproofing box
- Remote start up
Shore power sockets
- Two 3P 63 A sockets for EU version (100 A for USA version)
- The AC power sources terminate on the main electric panel in the engine room, provided with a voltmeter and ammeter for the 230 V power supply. The AC power sources are protected by suitably sized fuses, and introduced into the network by means of remote control switches.
Batteries
- Services: twelve 95 Ah - 12 V DC batteries
- Engines: six 95 Ah -12 V DC batteries
- Generator: two 95 Ah - 12 V DC batteries
- Service battery charger / service backup:
- two Mastervolt 80 Ah - 24 V
- Engine start-up battery charger: one
- Mastervolt 24-30 Ah - 24 V
- Genset start up battery charger: one
- Mastervolt 12-15 Ah - 12 V
Lights and sockets
- 230 V AC sockets for main utility power supply, EU type
- USB sockets
- Internal lighting: 24 V LED-type (no dimmer)
- External lighting: 24 V LED-type (no dimmer)
Electronic navigation instruments
- Raymarine BRONZE version
- Automatic pilot
- For a detailed list of alternative/additional equipment available, please refer to the Optionals price list
Bilge system
- Main bilge system composed of eight automatic and independent pumps located in each watertight compartment:
- - one in the service compartment
- - three in engine room
- - one in port guest cabin, next to the aft bulkhead
- - one in starboard guest cabin zone next to the stabilizing fin compartment
- - one (central) fore between the gray / black water tanks and the fresh water tank
- - one (central) forward of the fresh water tank
- Each automatic pump has also a manual pump near it.
Fire extinguishing and chain washing system
- System manual activation control in the cockpit
- System indicators/reset on internal and flybridge dashboards and also in the crew room
- One 52-liter (1.83 cu.ft) gas extinguisher in the engine room with nozzles located above the engines
- Two hoses located one in the cockpit port side cabinet and one in the fore chain locker, supplied through a shore connection and/or seawater intake; this circuit supplies the chain washing nozzles and, when supplied through the shore system, the tank washing system and the deck washing outlets
- Closing the valves on fuel delivery lines to engines and generators
Fuel system
- 8100 l (2139.8 US.liq.gal.) GRP structural fuel tank placed centrally and longitudinally forward of the engine room bulkhead; hydraulic connections are carried out all in the engine room
- Two fuel level electronic sensors monitored by means of indicators on internal and flybridge wheelhouse
- One battery-powered electronic fuel level sensor in the engine room
- Two engine double RACOR settling filters
- Two MAN diesel dual filters for engines
- Two RACOR filters for generators
- Four tank vents (two on each bulwark, one at the bow, and one at the stern)
- Remote engine diesel shut-off via 24 V solenoid valve
- Remote generator diesel shut-off via 12 V solenoid valve
- Two refueling plugs located on walk arounds (one plug on each side)
Fresh water system
- 1500 l (396 US.liq.gal.) structural GRP tank under fore VIP tray
- Two water filling plugs located on the fore part of walk arounds (one plug on each side)
- Water pressure pump unit located in the engine room with dual power supply (230V AC - 50 / 60Hz and 24V DC) with electronic control
- Two water heaters, 80 l (21.13 US. liq.gal.) each, symmetrically positioned under the crew cabin
- Fresh water toilet flushing
- One level sensor with electronic indicator in the wheelhouse
- System that can be isolated by ACORN manifolds
- Provision for desalination system
- Two tank vents at the bow
- Three windscreen washing nozzles
- Recirculation pump
Black water system
- Structural GRP tank, 750 l (198.1 US.liq.gal.) located at the center of the yacht forward of the diesel tank and on port side next to the gray water tank
- One level sensor with level indication in wheelhouse
- Tank emptying through electric pump manually controlled from the internal wheelhouse
- One 50 l/min (13.2 US.liq.gal./min) macerator pump
- Suction point on starboard walk around for emptying the tank from shore
- Tank collection of all toilet discharges ● TECMA toilet
- Two anti-odor filters
- Two tank breathers on bulwarks
Gray water system
- Structural GRP tank, 750 l (198.1 US.liq.gal.) located at the center of the yacht forward of the diesel tank and on starboard side next to the black water tank
- One level sensor with automatic / manual pump control and alarm in the wheelhouse
- One 50 l/min (13.2 US.liq.gal./min) macerator pump
- Six gray water collection trays for automatic transfer from utilities to main tank
- Two tank breathers on bulwarks
- Suction point on starboard walk around for emptying the tank from shore (up to serial no. 016)
- Two transfer pump in owner's cabin (serial no. 018 onwards)
Seawater system
- Engine cooling system: includes one seawater intake for each engine with filter and 3" ball valve for cooling the following equipment:
- - engine
- - marine gear
- Through-hull fitting
- Raiser
- Generator cooling system: includes one seawater intake for each generator, with filter and 1"1⁄2 ball valve
- Air conditioning condenser cooling system: one seawater intake with filter and 1"1⁄2 ball valve
- Chain washing / fire extinguishing
Ventilation/extraction
- Forced head ventilation: through 24 V DC centralized extractor and motorized shutters for the below deck area
- Day toilet: single dedicated extractor
- Engine room:
- - natural ventilation through two air ducts located on deckhouse side (inner side of walk arounds) and provided with water separator
- - natural ventilation of the service compartment
- - natural ventilation of the garage
- - four extractors located abaft the engine room, with extraction duct that conveys the air outside through an opening on hull bulwark
Other systems
- Interceptors system composed of:
- - two interceptors, 900 mm (2' 11.4")
- - two servo units
- - one electronic control unit
- - two control panels (one on each wheelhouse)
- Electro-hydraulic steering system composed of:
- - two rudder tillers with casings
- - two hydraulic cylinders
- - two electro-hydraulic control units
- Gangway system: extending, 3 positions, maximum capacity 150 Kg (330.7 lb), operated through 24 V DC electro- hydraulic control unit
- Aft pivoting hatch, max capacity 1000 kg (2204.6 lb)
Air conditioning system
- Air conditioning type: The system is of the thermally treated water circulation type, with fancoils
- Compressor unit in engine room, 144000 total BTU with inverter technology
- One seawater pump
- Distribution:
- - Wheelhouse: twp AP8 Slim fancoils (2 x 12,500 BTU/h)
- - Galley: two AP8 fancoils (2 x 12,500 BTU/h)
- - Saloon / Dining: five AP8 fancoils (5 x 12,500 BTU/h)
- - Owner’s cabin: two AP5 fancoils (2 x 9,200 BTU/h)
- - VIP cabin: one AP5 fancoil (1 x 9,200 BTU/h)
- - Port guest cabin: one AP5 fancoil (1 x 9,200 BTU/h)
- - Starboard guest cabin: one AP5 fancoil (1 x 9,200 BTU/h)
- - Commander's cabin: one AP3 fancoil (1 x 6,200 BTU/h)
- - Crew cabin: one AP3 fancoil (1 x 6,200 BTU/h)
- Each area has its own control panel making it independent
Audio-video system
Flybridge
- FUSION MS-RA770
- DAB + FUSION MS-DAB100A module
- FUSION MS-AM806 six-channel amplifier
- Two FUSION flush mount FM6.5" loudspeakers
- Subwoofer FUSION flush mount FM10" 400 W
Cockpit
- FUSION SRX400 WW
- Two FUSION flush mount FM6.5" loudspeakers
Bow
- FUSION SRX400 WW
- Two FUSION flush mount FM6.5" loudspeakers
Saloon
- TV
- FUSION SRX400 WW
- Two 6" FUSION MS-CL602 loudspeakers
Owner’s cabin
- TV
- FUSION MS-RA670
- FUSION MS-AM806 six-channel amplifier
- Two 6" FUSION MS-CL602 loudspeakers
- Subwoofer FUSION MS-AB206 450 W
VIP cabin
- FUSION Black Box MS-BB100 with remote control
- Two 6" FUSION MS-CL602 loudspeakers
Starboard side guest cabin
- FUSION Black Box MS-BB100 with remote control
- Two 6" FUSION MS-CL602 loudspeakers
Port side guest cabin
- FUSION Black Box MS-BB100 with remote control
- Two 6" FUSION MS-CL602 loudspeakers
Commander's cabin
- FUSION Black Box MS-BB100 with remote control
- Two 6" FUSION MS-CL602 loudspeakers
Crew cabin
- FUSION Black Box MS-BB100 with remote control
- Two 6" FUSION MS-CL602 loudspeakers
Equipment
- Two telescopic boat hooks \
- Six mooring lines
- Fender lines: 24 m (78' 9'')
- Two anchor chain stoppers
- Eight fenders
- Eight fender covers
- One Owner's manual
- One wooden boat model
- One set of stainless steel cutlery
- One set of porcelain plates
- One set of glasses
- Four floating keyrings
- Two bags with logo for storing the manuals
- One remote control holder with logo
- One stainless steel scheduled maintenance kit
- One cover for flybridge cushions, flybridge instruments, and cockpit
