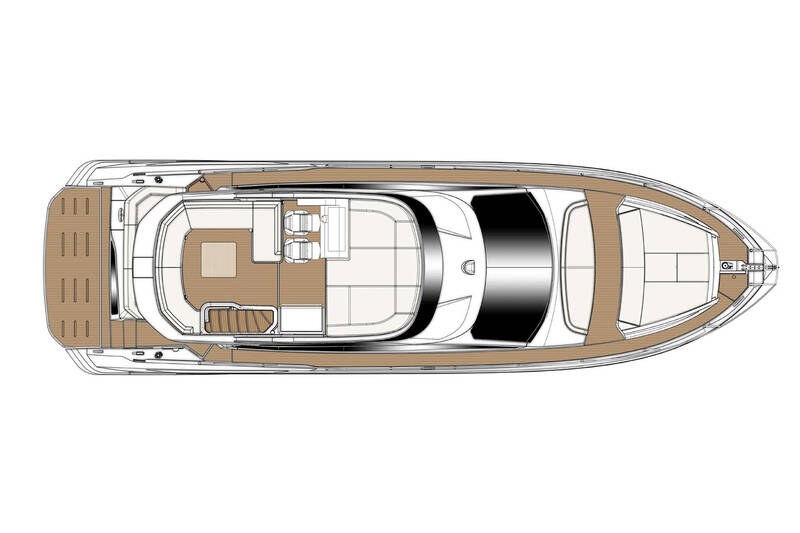

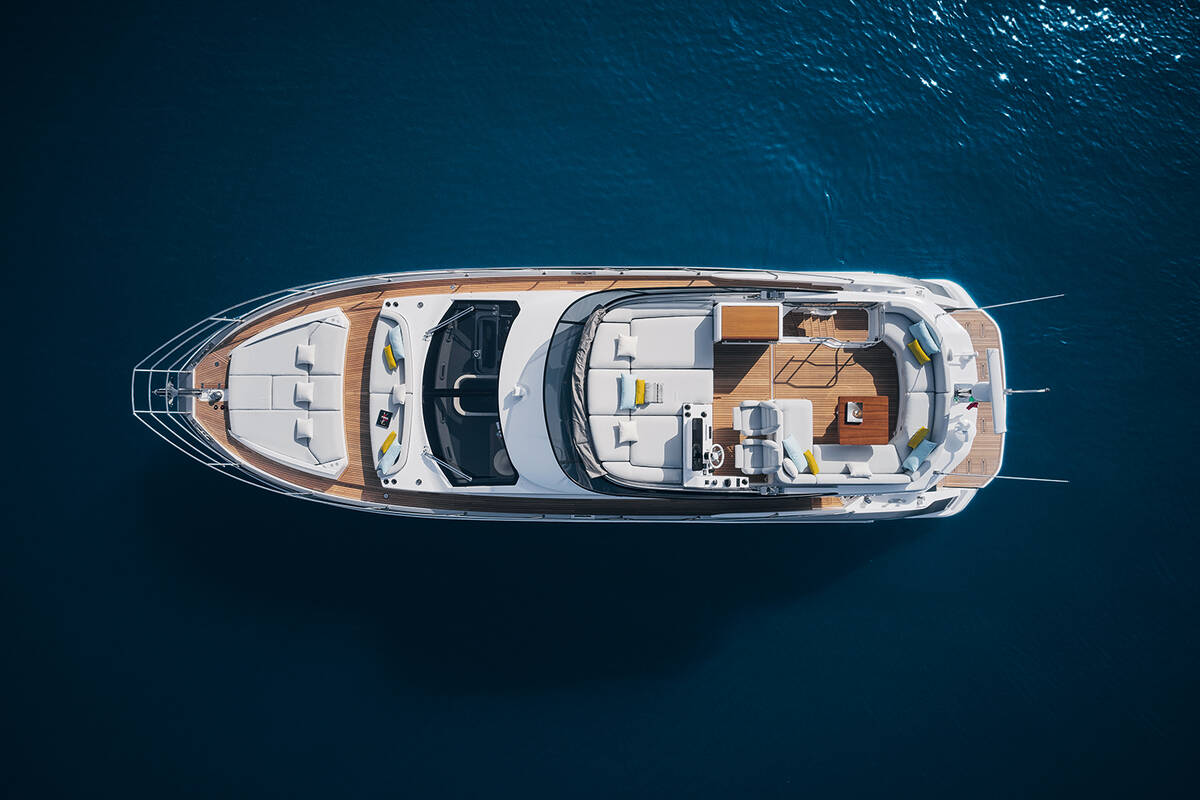

Flybridge
- Access to flybridge via stairway, located on starboard side
- GRP external stairway with teak steps
- Non-slip floor
- Access door
- Plexiglas flybridge screen
- Boat logo on side GRP
- Stainless steel handrails

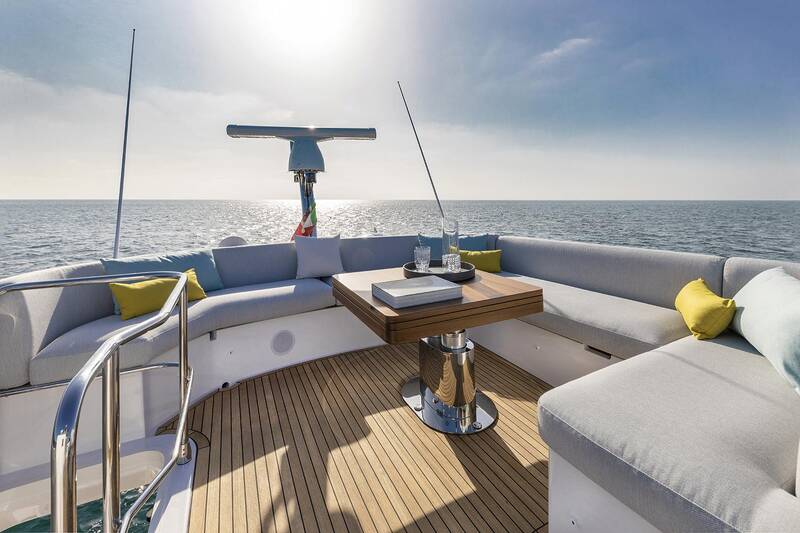

- Dining area with C-shaped sofa with backrest and removable cushions for outdoors
- Table with central stainless steel fixed leg
- Fore sunbed area
- Life raft seat under sofa (flybridge, port side)
- Flybridge bar cabinet (optional), with:
- - Sink built into cabinet with retractable water tap
- - fridge/icemaker
- - Barbecue with stainless steel protective cover for cabinet door and safety off switch
- - Waste bin

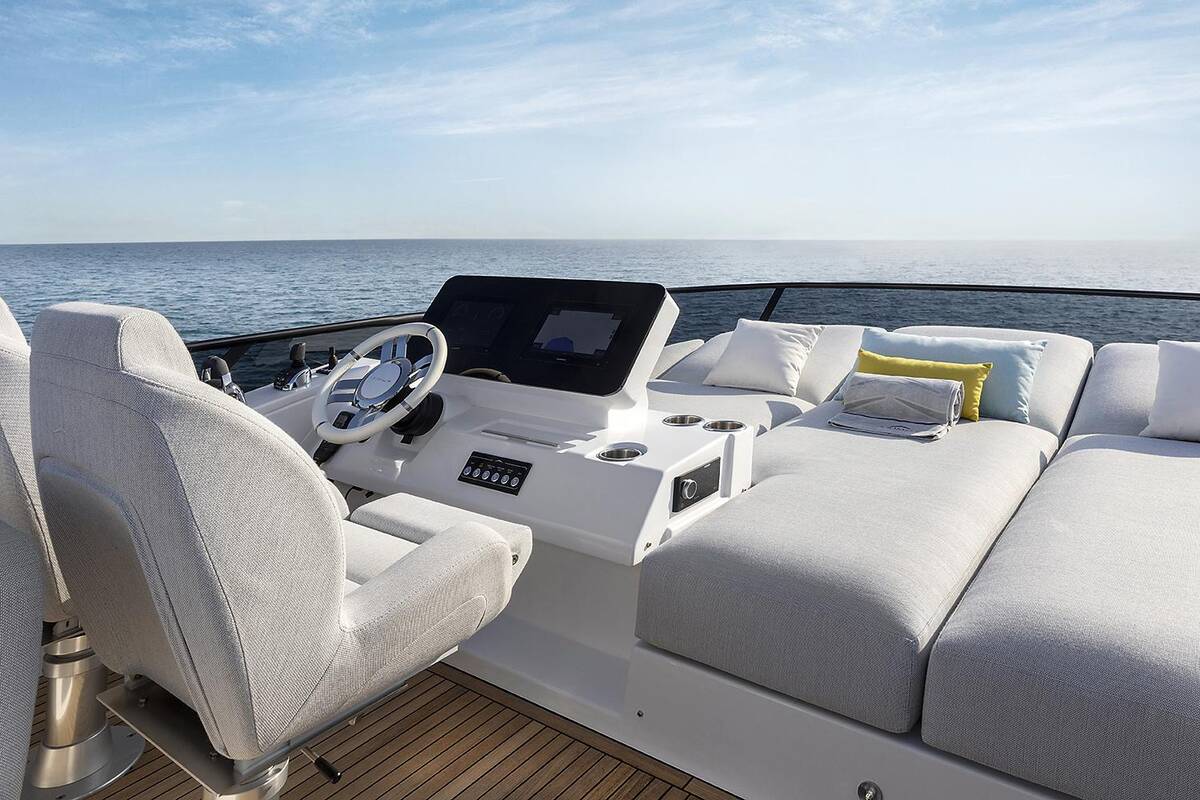

- Helm seat for one person on port side (seat or bench, TBD)
- Adjustable steering wheel (four-spoke steering wheel white painted)
- Flybridge dashboard consisting of:
- - Volvo Penta engine display
- - electronic navigation instruments, BRONZE version
- - Engine throttles
- - Volvo Penta maneuvering joystick
- - anchor winch control and chain meter counter built in the electronic instrumentation
- - audible alarm controls
- - Communication systems (VHF)
- - Trim tab controls
- Scuppers
- Light mast
- Compliant navigation lights
- Manual searchlight

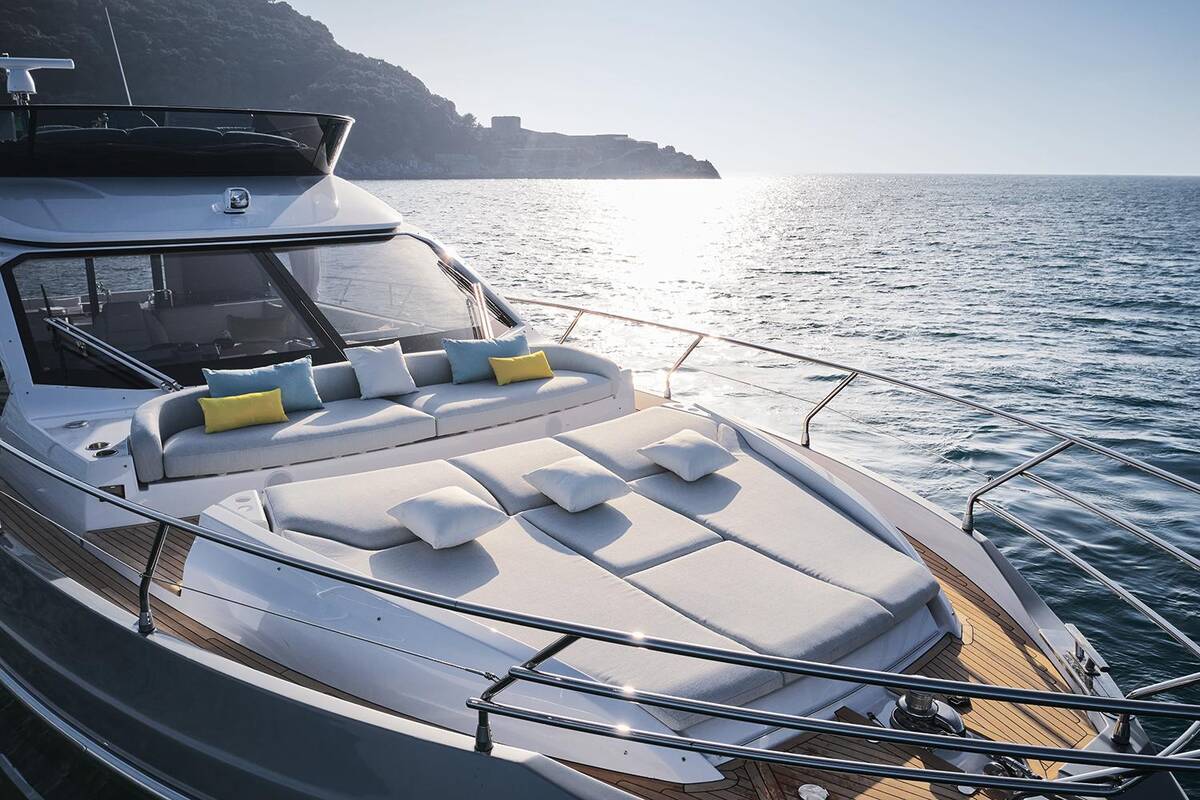

Bow
- Chain locker accessible through hatch provided with drainage
- Fenders storage in fore peak
- Stainless steel anchor line anti-rubbing protection
- Bow hatch (emergency exit from VIP cabin)

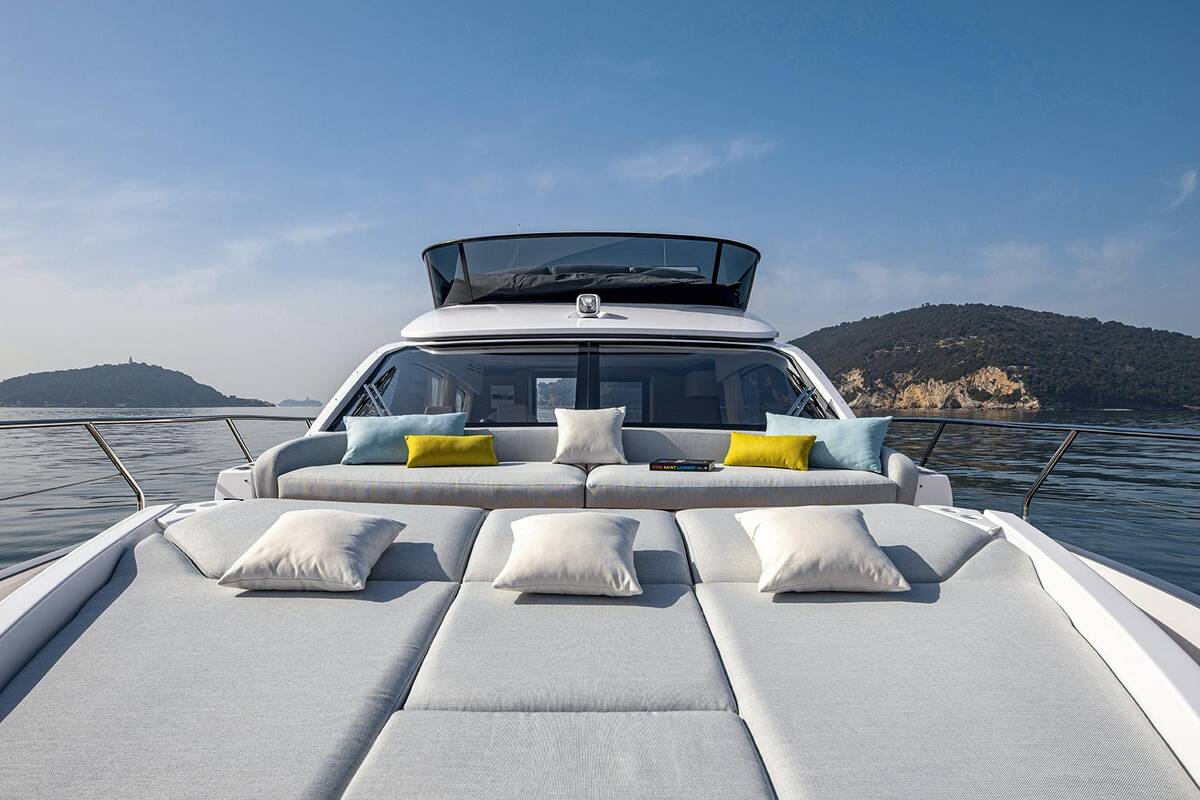

- Four-seater sofa, facing the bow, with removable cushions
- Fore sunbed area
- Non-slip floor
- Scuppers

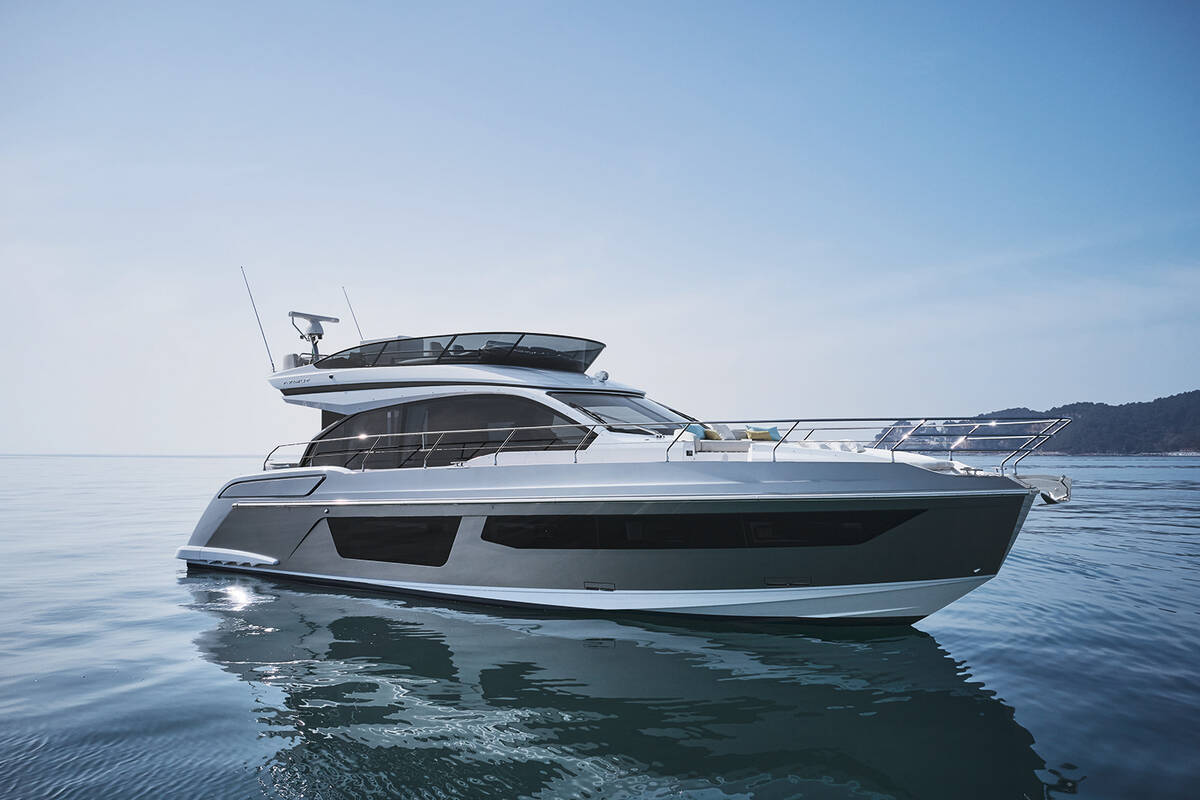

Walk arounds
- Refueling: two "Diesel" refueling plugs with cover
- Fresh water filling: one "Water" filling plug Ø85 mm
- Black water outlet: one "Waste" outlet water plug Ø75 mm without cover
- Rub-rail in stainless steel and high resistance PVC
- Non-slip floor
- Pulpit with handrail

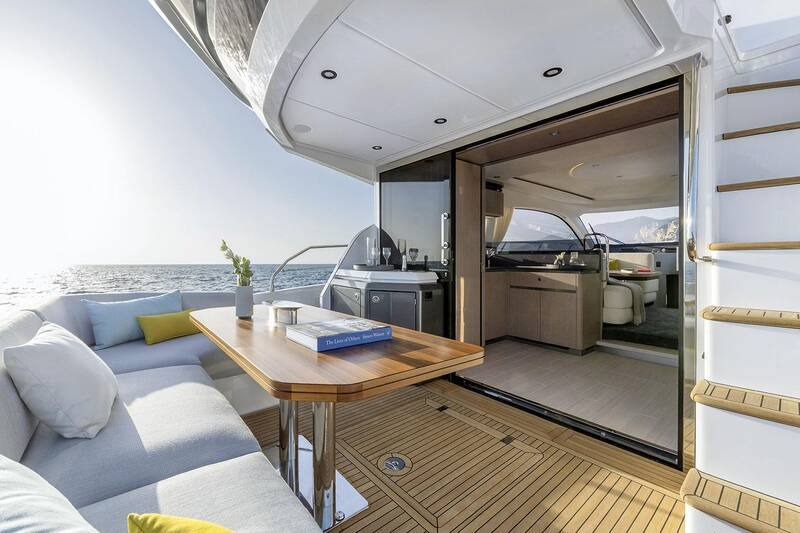

Cockpit
- Access to cockpit, starboard side
- Mooring station on both sides

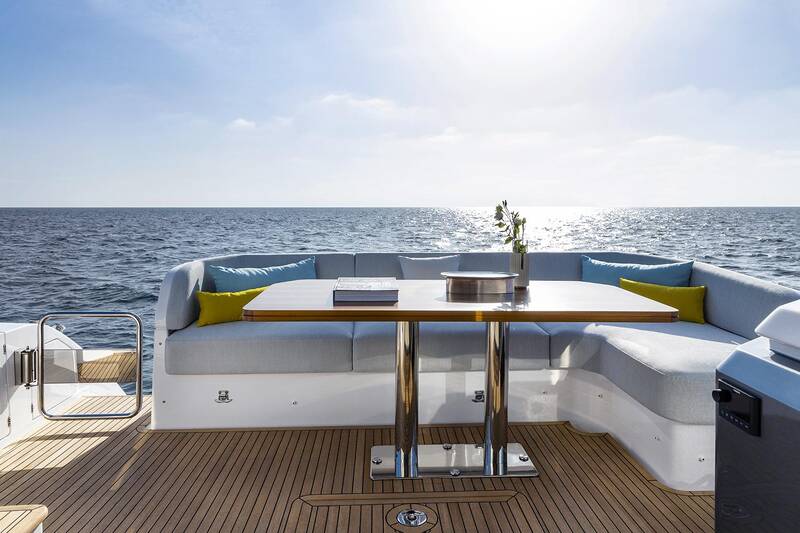

- 6-seater L-shaped cockpit bench (in GRP integrated in the deck)
- Cockpit bench cushions
- Saloon access door made in aluminum with tempered glass: three flat panels opening towards the port side
- Engine room access via door in cockpit floor
- Non-slip floor
- Flybridge access stairs handrail
- Lighting: spotlights in cockpit ceiling panel

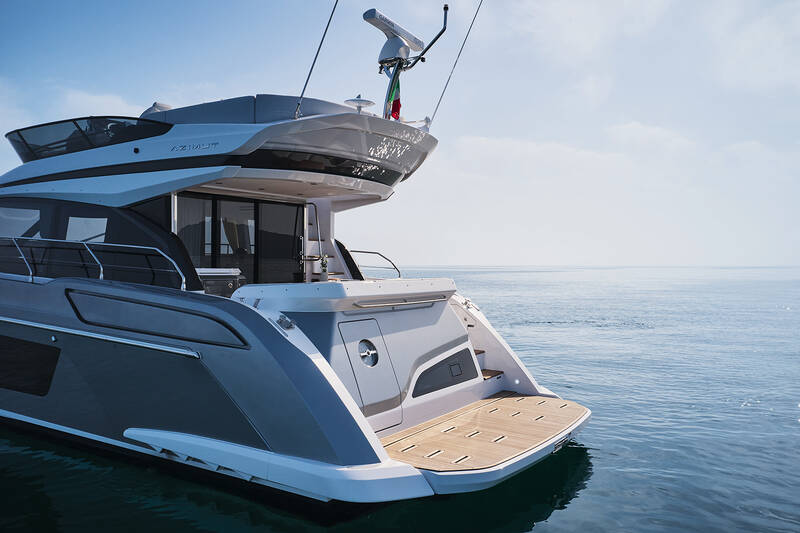

Platform
- Hydraulic platform
- Swimming ladder
- Hot and cold water shower head
- Non-slip floor
- Crew cabin access through door on deck, aft
- INSTALLABLE TENDER (OPT):
- - MAXIMUM DIMENSIONS OF TENDER - PLATFORM: 2.90 x 1.70 m (9'6" x 5'7")
- - LIFT PAYLOAD EXCLUDING GRP, TEAK AND LADDER: 380 kg (837.7 lb)
- RECOMMENDED TENDER - PLATFORM: Pirelli J29

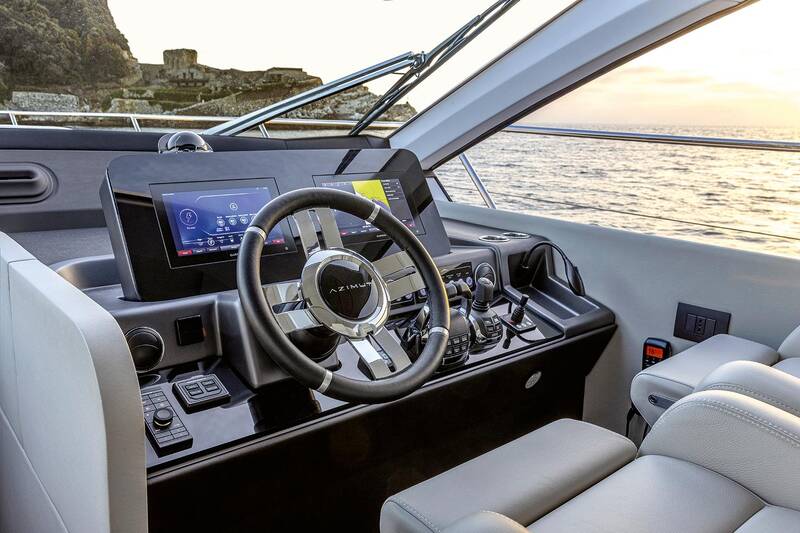

Wheelhouse
- Single helm seat
- Leather adjustable steering wheel with stainless steel spokes
- The dashboard consists of:
- - Volvo Penta engine display
- - electronic navigation instruments, BRONZE version
- - anchor winch control and chain meter counter built in the electronic instrumentation
- - Engine throttles
- - Volvo Penta maneuvering joystick
- - Communication systems (VHF)
- - Trim tab controls
- - magnetic compass
- - USB socket
- - Adjustable air conditioning outlets
- - horn, anchor winch, windscreen wipers, windshield washers, engine battery parallel, and mute activation switches
- Emergency panel

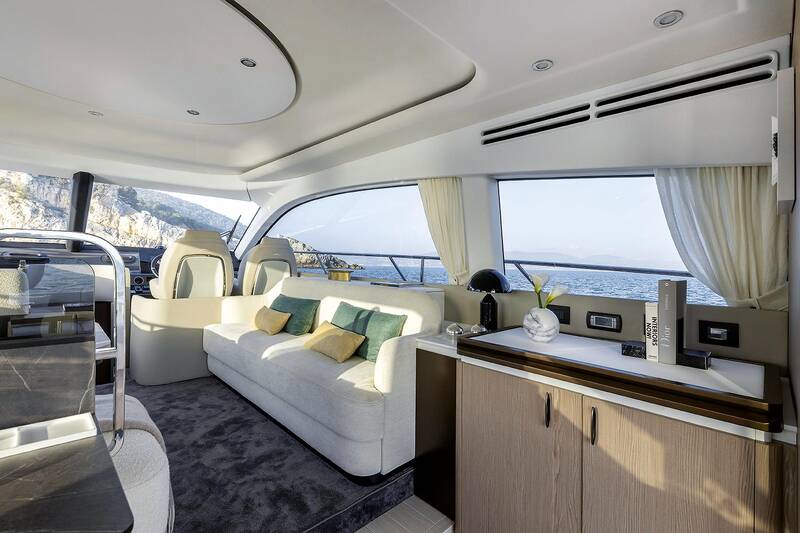

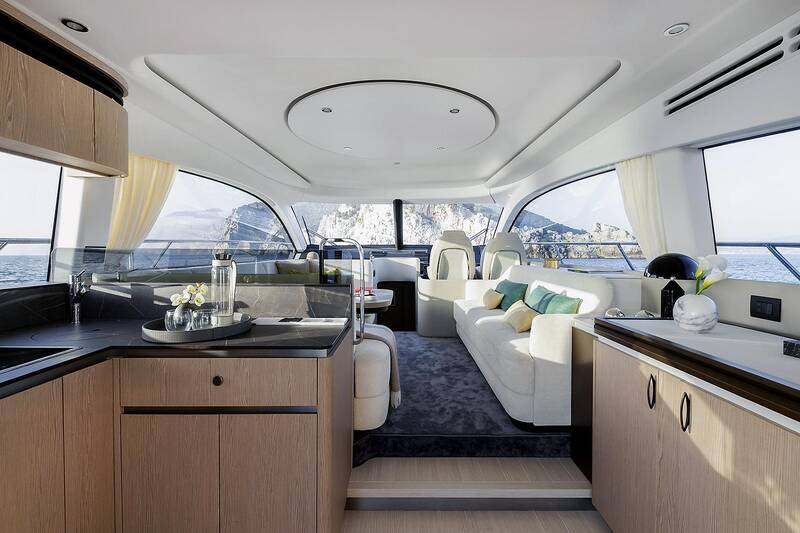

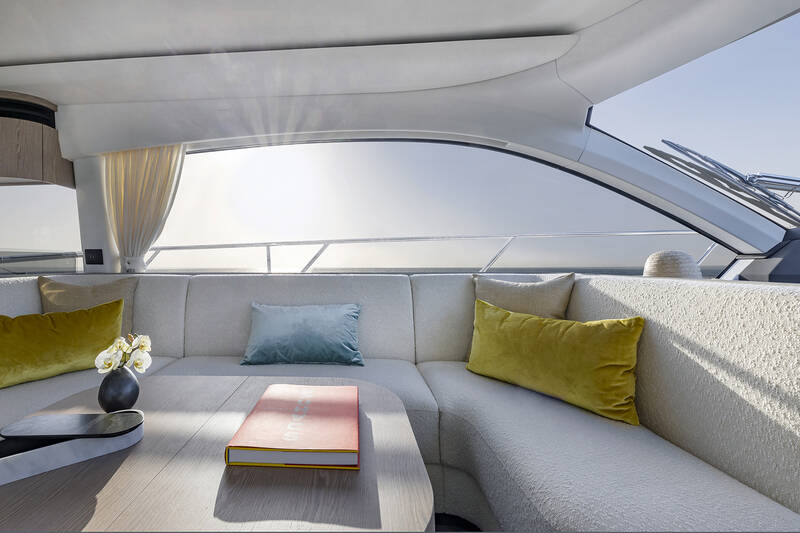

Saloon and Dinette
- Cupboards in oak
- Carpeted floor
- One sofa on starboard side, two seats
- One "C"-shaped sofa on port side, four seats
- Cabinet for crockery
- Provision for TV system with aerial
- GRP and lacquered wood ceiling
- Roman blinds for fore windows and sliding blind for saloon door
- Two loudspeakers
- Saloon table with stainless steel leg

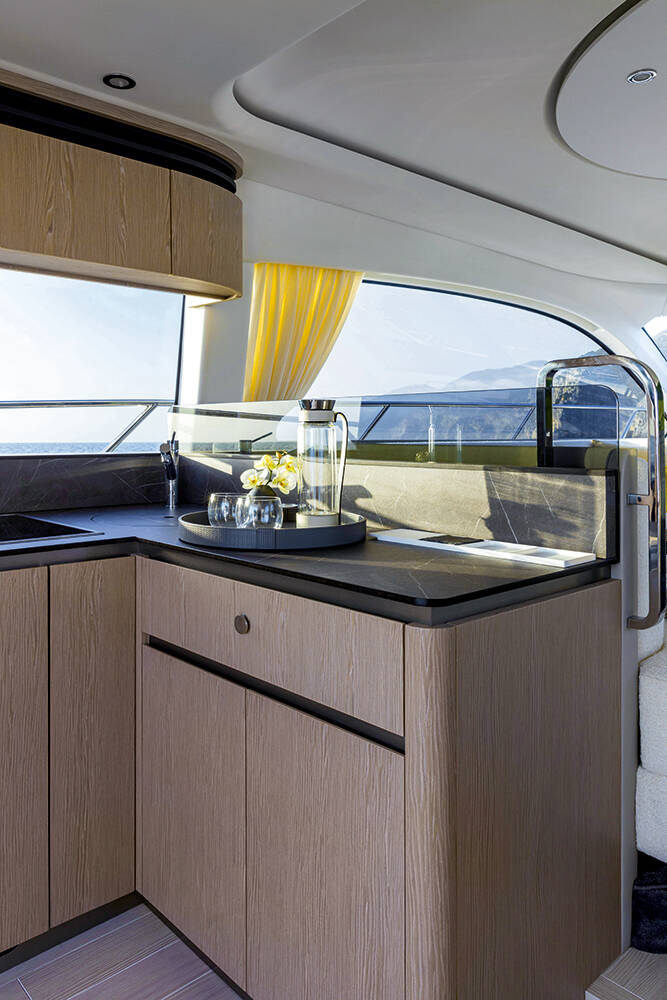

Galley

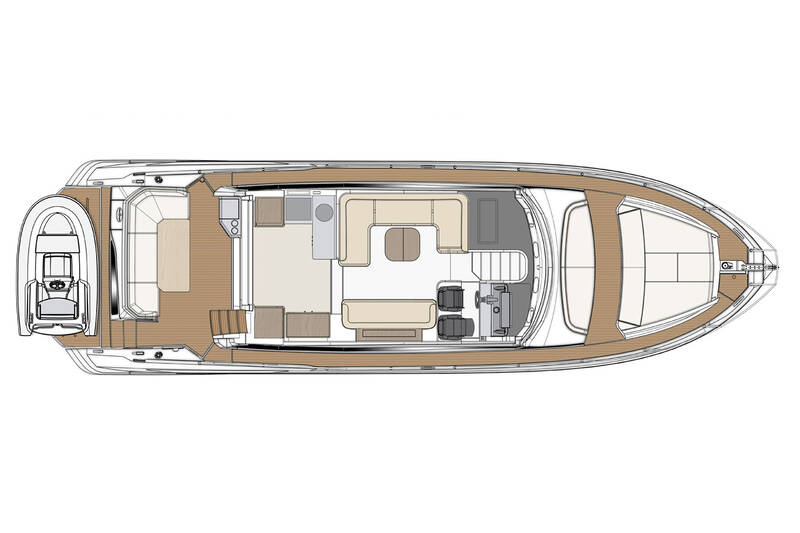

- Located aft of the main deck on port side
- Laminated floor
- Ceramic glass range with two hobs
- Extractor hood
- Stainless steel sink
- Fridge/freezer (220 l - 7.76 cu.ft)
- Microwave oven + grill
- Waste bin

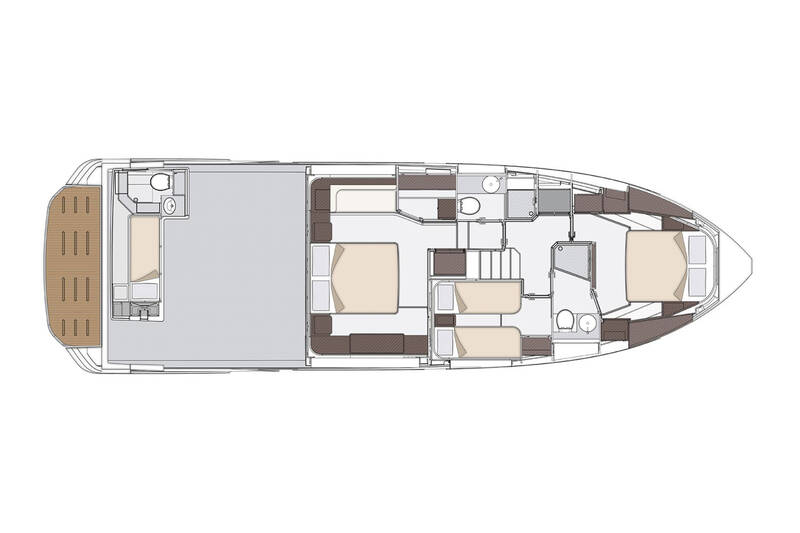

Corridor
- Below deck access corridor with carpeted floor
- Spotlights
- Bulwark coating in wood and leatherette
- Corridor grabrails

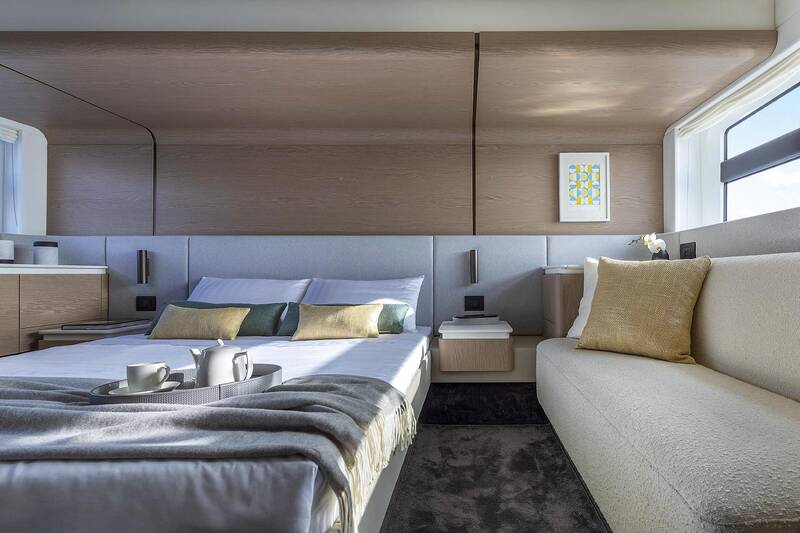

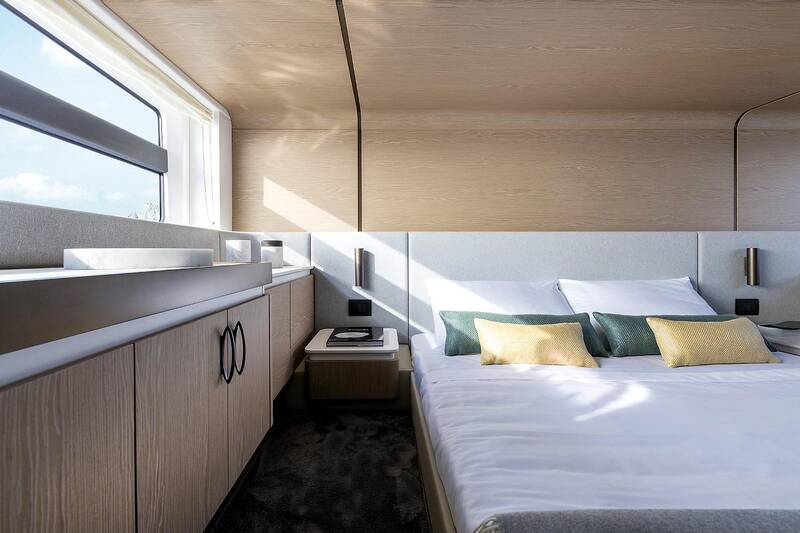

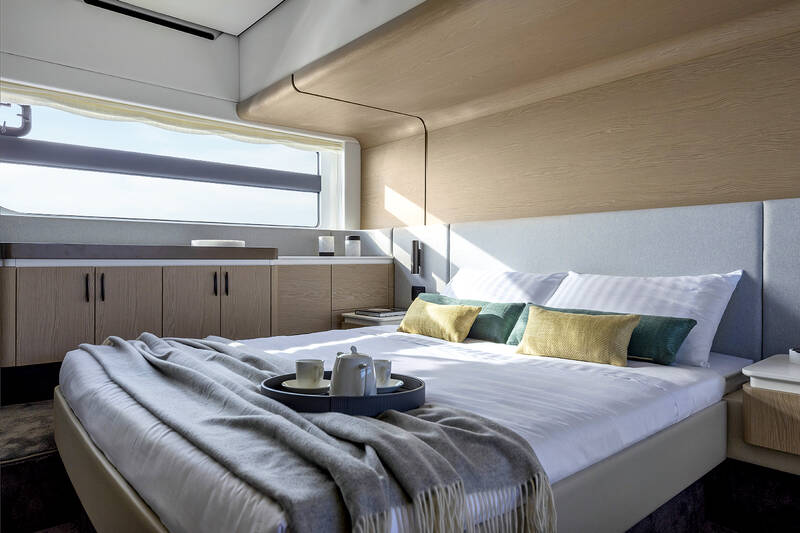

Owner’s cabin
- The full-beam owner's cabin is composed of:
- Double bed at the center of the yacht, with foldaway bed base and locker
- Wooden headboard
- Two fixed bedside tables with openable top
- Cabinet with panels and shelves on starboard side
- Walk-in wardrobe with hanger bar on port side
- Sofa on port side
- Spotlights
- Two openable portlights
- Hull windows
- Roman blinds
- Mirror on cabin's fore bulkhead, starboard
- Bulwark coating in leatherette
- Fabric wall upholstery
- Leatherette and GRP ceilings
- Provision for TV system
- Sockets
- Air conditioning system control panel (if A/C installed)

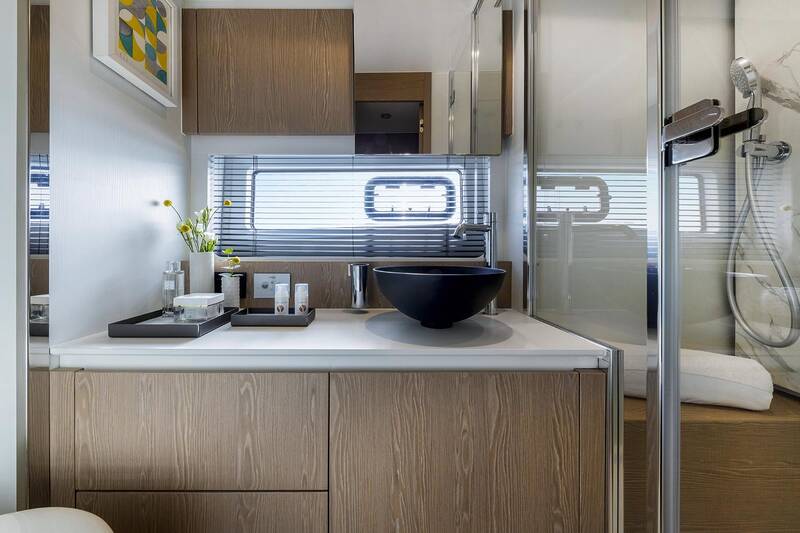

Owner’s head
- Located forward of the owner's cabin, on port side. It is composed of:
- Independent access from owner's cabin
- Lacquered top and round Vetro Freddo washbasin
- TECMA toilet
- Mixer tap
- Separate shower enclosure; flat shower door
- Chromed shower rail
- Wall unit with two-panel mirror above the washbasin top and under basin cabinet with shelves
- Spotlights
- One openable portlight
- Venetian blinds
- Non-slip GRP flooring in shower
- Sockets
- Head accessories

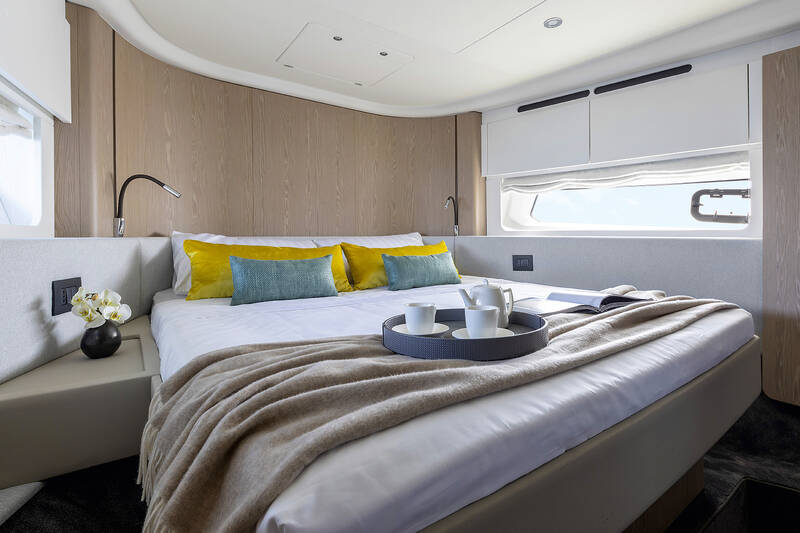

VIP cabin
- Located at the bow, it is accessed via the central corridor. It is composed of:
- Double bed at the center of the boat with locker on the plane
- Wooden headboard
- Two openable wall units with storage areas (each side) over the windows
- Two wardrobes with hanger bars and mirror
- Leatherette and gelcoat ceiling
- Spotlights lighting
- Emergency exit in ceiling through concealed rectangular hatchway leading to fore sunbed area
- Direct access to VIP / guest head
- Two openable portlights inserted in windows
- Venetian blinds
- Fabric-upholstered bulwarks
- Carpeted floor
- Air conditioning system control panel (if A/C installed)
- Sockets

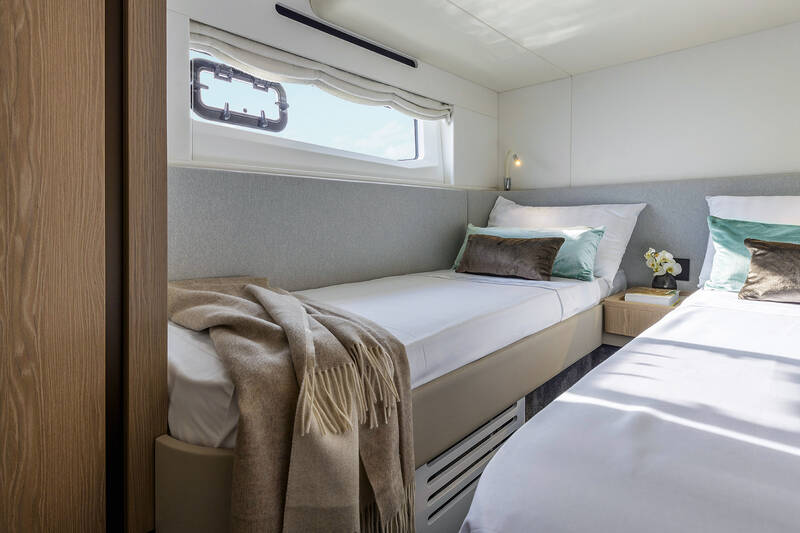

Guest cabin
- Located on starboard side.
- Two single beds with lockers
- One wardrobe with hanger bar and shelves
- One central bedside table between the beds
- Painted ceilings
- Spotlights
- Leatherette headboard
- One openable portlight
- Carpeted floor
- Bulkhead coating in fabric, wood and lacquered
- Venetian blind

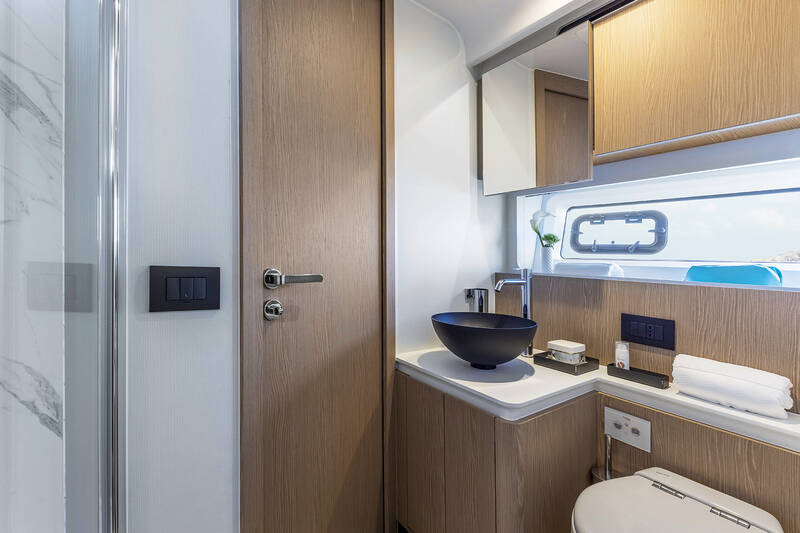

VIP/Guest head
- Positioned abaft of the VIP cabin, on starboard side
- Direct access from the VIP cabin or from the corridor
- Lacquered top and round Vetro Freddo washbasin
- Mixer tap
- TECMA toilet
- Separate shower enclosure; flat shower door
- Chromed shower rail
- Spotlights lighting
- Underbasin cabinet with shelves
- Wall unit with mirror
- One openable portlight
- Venetian blind
- Non-slip GRP flooring in shower
- Head accessories
- Sockets
Crew room (OPT)

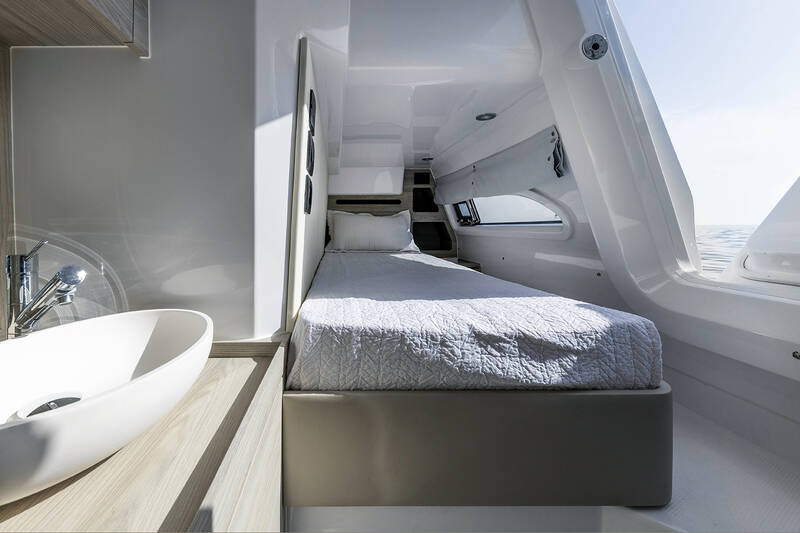

Crew cabin
- Located at stern
- Access from platform
- Single bed
- One wardrobe on starboard side
- GRP ceiling panel
- Bulkhead shelves, at the foot of the bed
- Openable portlight
- GRP non-slip floor
- Spotlights
Crew head
- TECMA toilet
- Washbasin
- Chrome mixer with extractable shower head
- Shower area with waterproof curtain
- Wall unit with mirror
- Cupboard under the sink
- Socket
- Head accessories
Electric system
Main characteristics
- Shore-powered power supply
- DC electric panel: three installed, one of which on the fore bulkhead of the engine room
- AC electric panel: two installed, one of which on the fore bulkhead of the engine room
- Auxiliary electric panel installed in the saloon entrance cabinet
- Emergency control panel on electric panel
- Battery cut-out control panel installed in the cockpit
- Onboard voltages:
- - 230 V - 50 Hz AC
- - 24 V DC from battery set
- - 12 V DC from battery set and AC/DC voltage reducer
Generator
- One single phase generator 5 kW / 230 V AC - 50 Hz for EU system Remote start up
- Shore power sockets
- EU one 3P-50 A socket
- The AC power sources terminate on the main electric panel in the engine room, for the 230 V network. The power sources are protected by suitably sized power circuit breakers, and introduced into the network by means of remote control switches.
Batteries
- Six service batteries 90 Ah - 12 V DC
- Four engine batteries 90 Ah - 12 V DC
- One generator battery 70 Ah - 12 V
- One service/engine starter battery charger 60 Ah - 24 V
- One generator starter battery charger 12 Ah - 12 V
Lights and sockets
- 230 V AC sockets for main utility power supply, EU type
- USB sockets
- Internal lighting: 24 V LED type
- External lighting: 24 V LED type
- Electronic navigation instruments
- For STD equipment, see “flybridge dashboard equipment” and “internal dash- board equipment” paragraphs
- For a detailed list of alternative/additional equipment available, please refer to the Optionals price list
Bilge system
- Main system composed of three automatic and independent pumps located in each watertight compartment:
- - two in the engine room (fore and aft)
- - one (central) under owner's cabin floor
- Secondary or auxiliary system, composed of two manual pumps with three suction points located as follows:
- - two in the engine room (fore and aft)
- - one (central) under owner's cabin floor
Fire extinguishing system
- One gas fire extinguisher in the engine room
- One system manual activation control in the cockpit
- System indicator/reset under the dashboard
Fuel system
- Two plastic fuel tanks located crossways on fore part of the engine room, total 2400 l (634 US.liq.gal.)
- One electronic fuel level sensor (starboard tank) monitored through indication on the wheelhouse
- One fuel level optical gage on port tank
- Two engine single RACOR settling filters
- Two tank vents on bulwark, one per side
- Remote engine diesel shut-off via 24 V solenoid valve
- Remote generator diesel shut-off via 12 V solenoid valve
- Two refueling plugs on walk arounds (one per side)
- Possibility of leveling diesel from one tank to the other, using a communicating pipe
- Possibility of refueling both diesel tanks from a single refueling plug, by means of the communicating pipe
Fresh water system
- One 590 l (155.86 US.liq.gal.) plastic tank under accommodation tray, under stairway floor and lobby
- Water refill through caps located in the fore part of the port walk around
- Water pressure pump unit located in the engine room, port aft side (24 V - 50/60 Hz) with electronic control
- 60 liter (15.85 US.liq.gal.) water heater under the corridor
- Fresh water toilet flushing
- One level sensor with electronic indicator monitored through indication on the wheelhouse
- System that can be isolated by ACORN manifolds under the corridor floor
Black water system
- 175-liter (46.23 US.liq.gal.) polyethylene tank below the VIP cabin (fore tank)
- One level sensor with electronic indicator monitored through indication on the wheelhouse
- Two tank vents on bulwark with anti-odor filter
- One macerator pump
- Suction point from deck starboard walk around
- TECMA toilet
- Sea outlet from tank
Gray water system
- 175 l (46.23 US.liq.gal.) polyethylene tank, under the cabin area corridor (central tank)
- One level sensor with electronic indicator monitored through indication on the wheelhouse
- Sea outlet from tank
- Two tank vents on bulwarks
- Diaphragm pump
Sea water system
- Engine cooling system: includes two seawater intakes with filter and 2" 1/2 ball valve
- Generator cooling system: includes one seawater intake with filter and 1" ball valve
- Engine room ventilation
- Two extractors located abaft the engine room that conveys the air outside through openings on hull bulwark
- Two natural ventilation ducts on each side
- One natural extraction duct on each side
- Fans panel for internal air recirculation
Equipment
- One telescopic boat hook
- Two mooring lines
- Fender lines: 18 m (59')
- One anchor chain stopper
- Six fenders
- Six black fender covers
- One Owner's manual
- One wooden boat model
- One AZIMUT warranty service booklet
- Two floating keyrings
- One large bag with logo for manuals
- One remote control holder with logo
- One shower pipe storage bag
