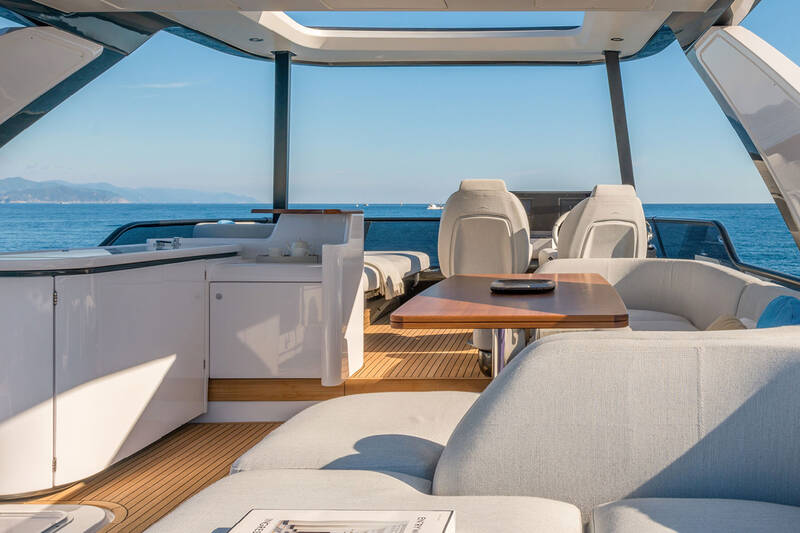

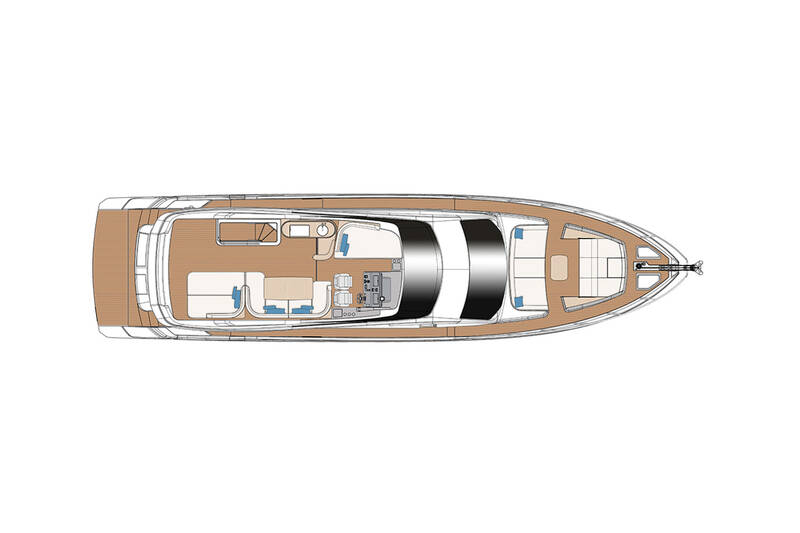

Flybridge
- Accessible from cockpit, through ladder on port side
- GRP external stairway with teak coated steps
- Non-slip floor
- Access door
- Plexiglas flybridge screen
- Azimut logo on side GRP
- Model "68" logo on side GRP
- Stainless steel handrails
- Dining area with C-shaped sofa with backrest and removable cushions for outdoors
- Fore sunbed area
- Table, maximum eight seats, with fixed stainless steel legs
- Life raft seat under sofa (flybridge, starboard side)

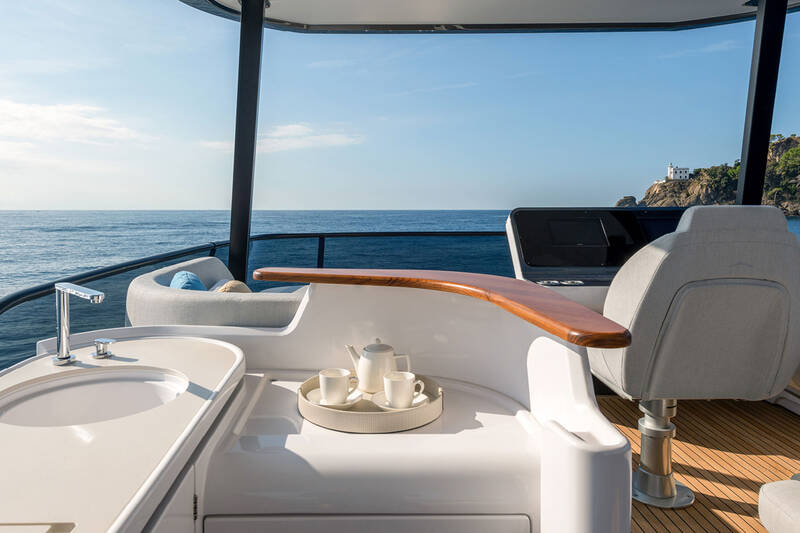

- Flybridge bar cabinet, with:
- - Sink built into cabinet with retractable water tap
- Waste bin
- Fridge
- Single helm with manual depth/height adjustment
- Adjustable steering wheel with four-spoke steering wheel white painted
- Dashboard consisting of:
- - BRONZE PACKAGE electronic instruments
- - anchor winch control and chain meter counter built in the electronic instrumentation
- - Engine throttles
- - Volvo Penta maneuvering joystick
- - audible alarm controls
- - Communication systems (VHF)
- - Bow thruster controls
- - Trim tab controls
- Scuppers with stainless steel grating and logo
- Lights mast
- Navigation lights
- Manual searchlight
Bow
- 2000 W winch
- Anchor winch controls
- Chain locker accessible through hatch provided with drainage
- 40 kg galvanized steel anchor
- 75 kg galvanized steel anchor chain
- Stainless steel anchor roller
- Fender storage in fore service compartment
- Sunbed area with non-slip finish
- Chain washing pump
- Two wipers for bow windscreen
- Two stainless steel cleats
- Stainless steel anchor line anti-rubbing protection
- Bow hatch (emergency exit from VIP cabin)
- Bow sofa in GRP complete with locker and removable cushions for outdoors
- LED lighting along base of sofa
- Non-slip floor
- Tempered glass windows glued to the surrounding structure without any metal frame
- Scuppers with stainless steel grating and logo
Walk arounds
- Refueling: two "Diesel" refueling plugs
- Fresh water filling: one "Water" filling plug Φ85 mm
- Black water outlet: one "Waste" outlet water plug Φ75 mm
- Rub-rail in stainless steel and high resistance PVC
- Non-slip floor
- Starboard side door
- Stainless steel pulpit with handrail

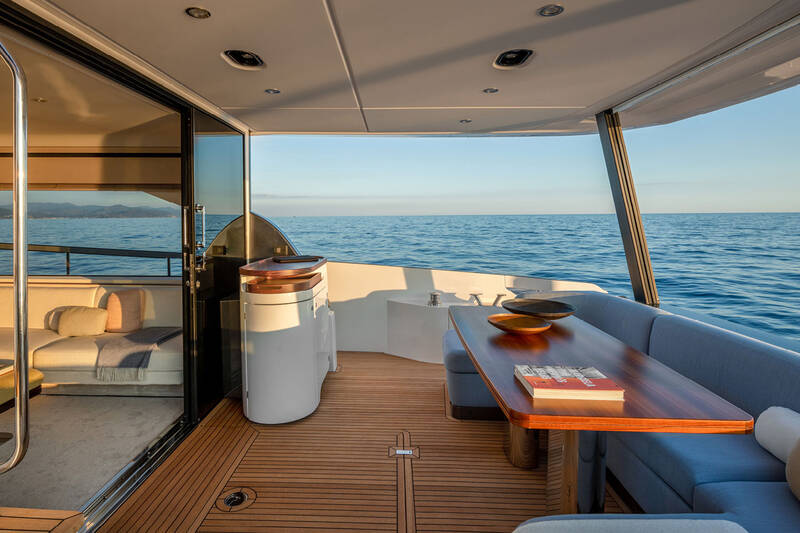

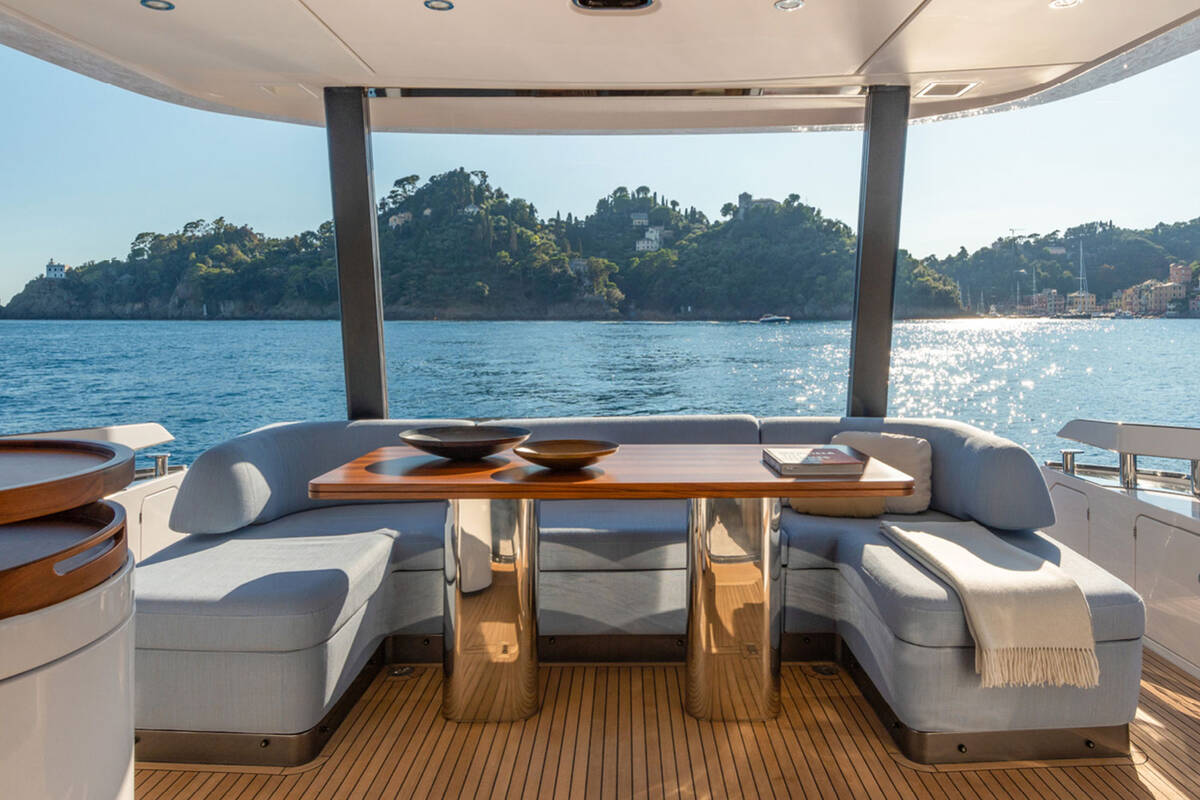

Cockpit
- Access to cockpit from platform via GRP ladder on port and starboard side and stainless steel gates
- Two mooring stations (one per side)
- Cleats on mooring station
- 5-seater C-shaped cockpit bench in GRP integrated in the deck
- Cockpit bench cushions
- Flybridge support posts on sides of cockpit bench
- Saloon access door in painted aluminum with tempered glass, three flat panels sliding to the starboard side
- Scuppers with stainless steel grating and logo
- Locker under port side seating area
- Engine room access from hatch in cockpit floor
- Flybridge access ladder with teak steps and steel handrail
- Lighting with LED spotlights recessed in the ceiling
Platform
- Hydraulic platform
- Swimming ladder
- Hot and cold water shower head
- Teak floor
- Access to service compartment from door on the transom
- INSTALLABLE TENDER (OPT):
- - MAXIMUM DIMENSIONS OF TENDER: 3.30x1.70m(10'10"x5'7")

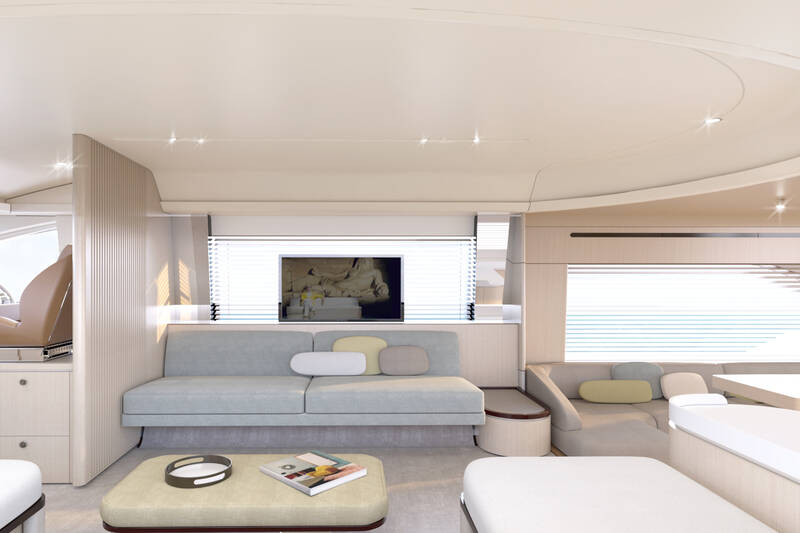

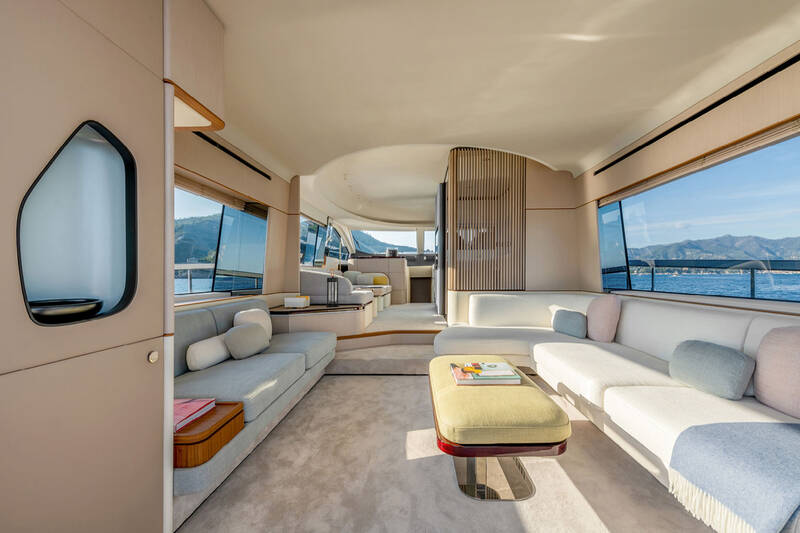

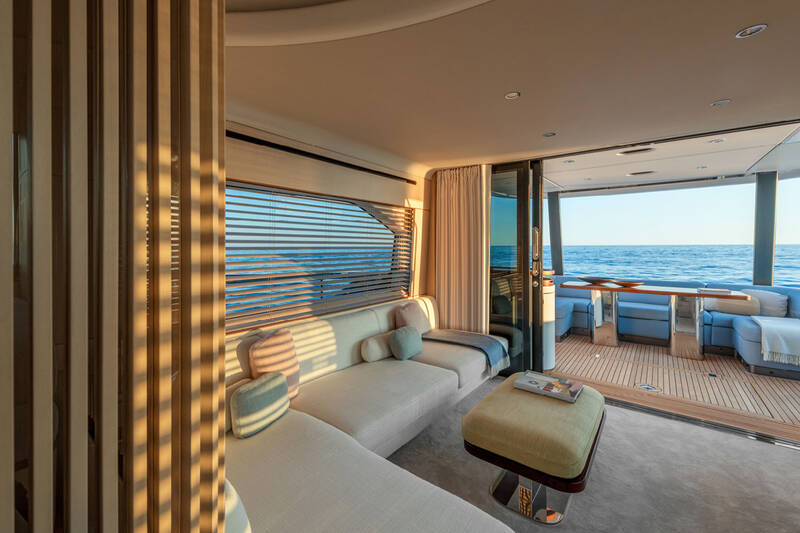

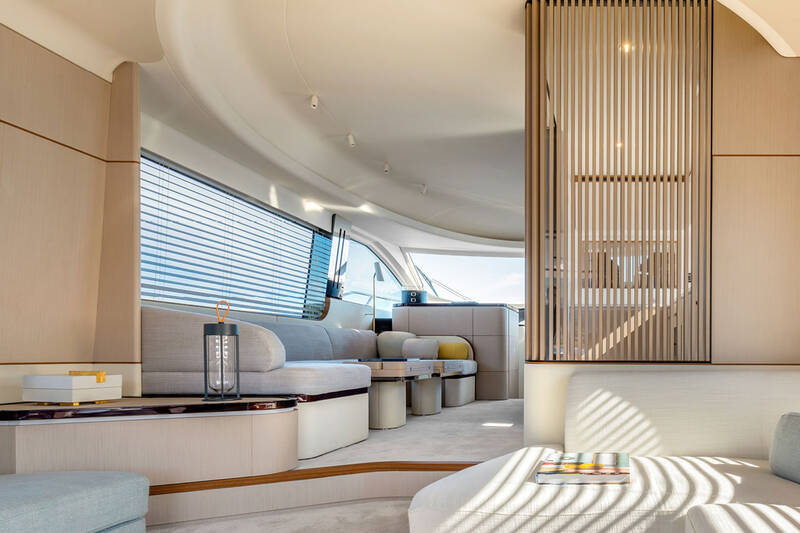

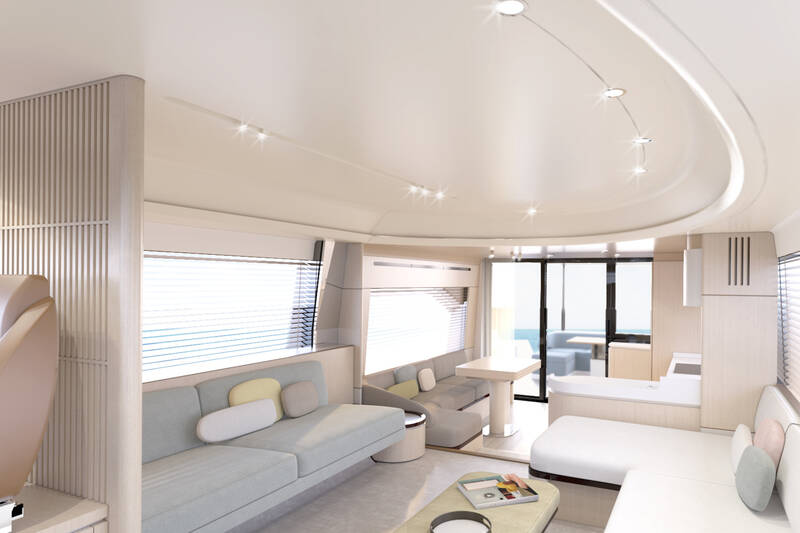

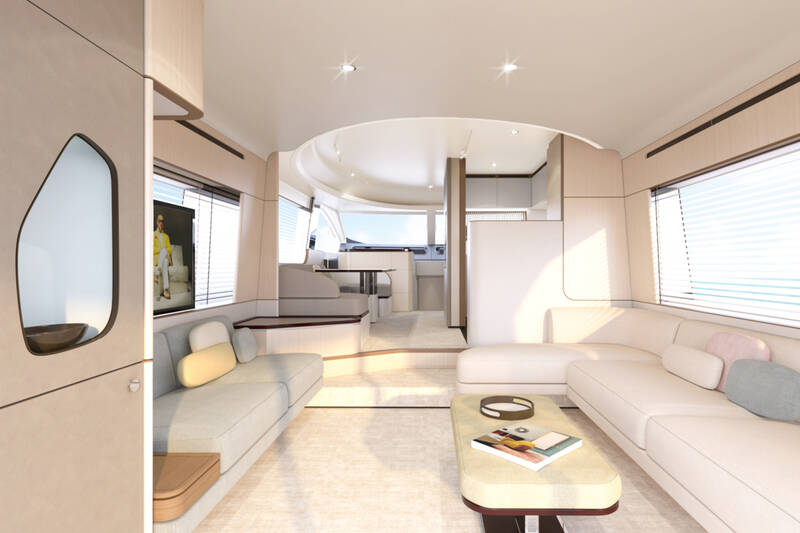

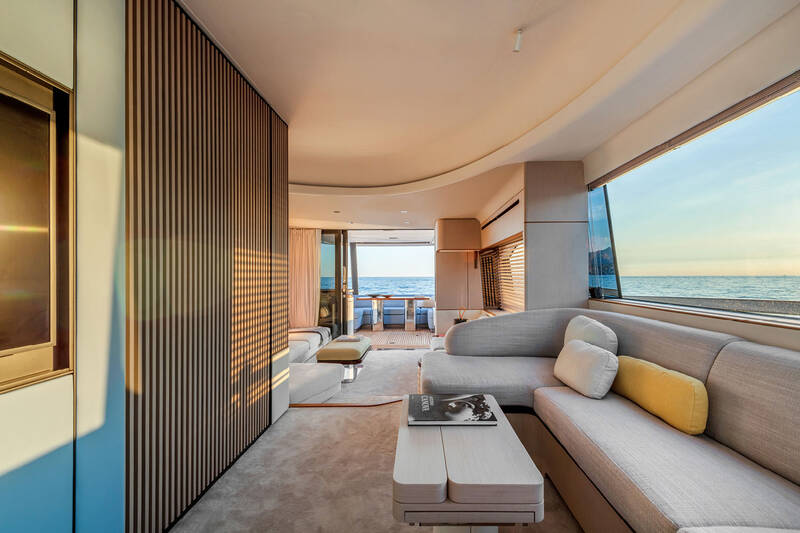

Saloon
- It is composed of:
- Wood essence furniture
- Carpeted floor
- One sofa on port side, two seats
- One "L"-shaped sofa on starboard side, four seats
- Provision for TV system with aerial
- GRP coated ceiling
- Wood essence walls
- Roman blinds for stern windows and sliding blind for saloon door
- Two loudspeakers
- Lighting with LED spotlights recessed in the ceiling

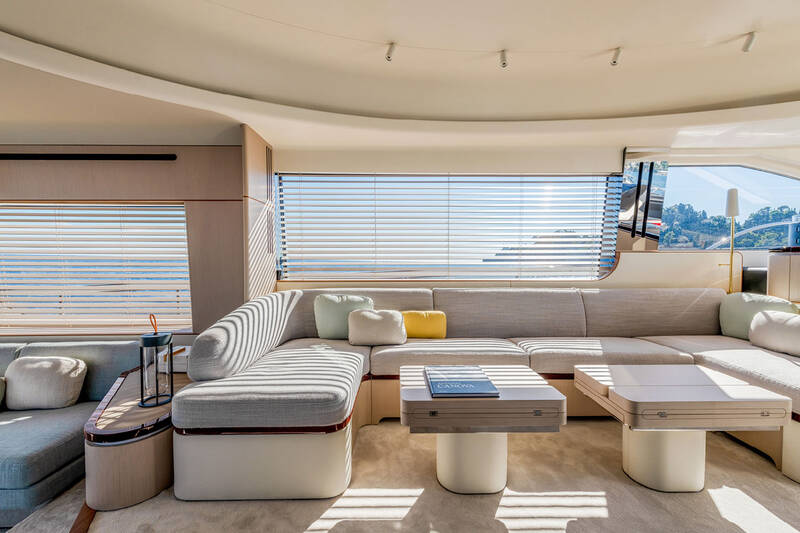

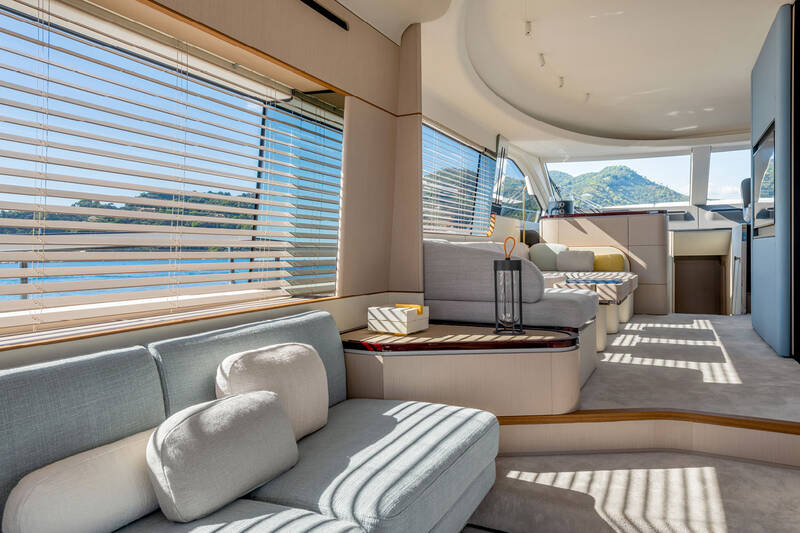

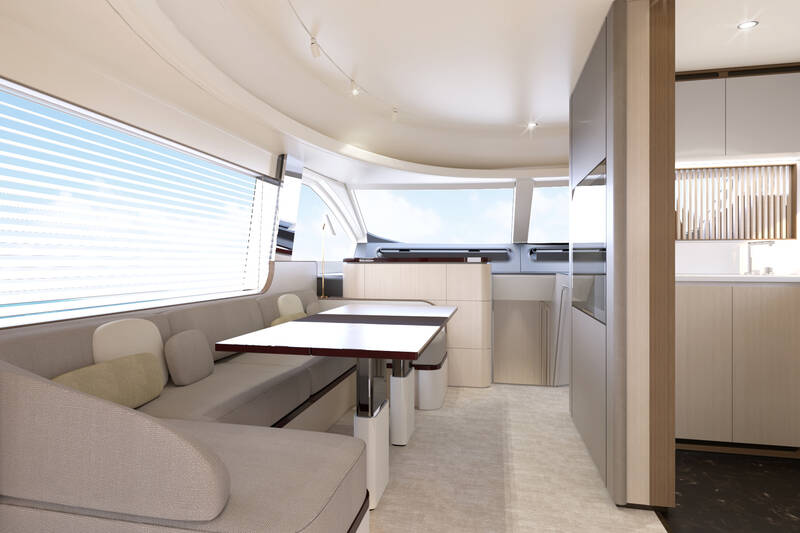

Dinette
- It is composed of:
- Wood essence furniture
- Carpeted floor
- One "C"-shaped sofa on port side, six seats
- Provision for TV system with aerial
- GRP coated ceiling
- Wood essence walls
- Roman blinds for fore port windows
- Dinette table with stainless steel leg
- Lighting with LED spotlights recessed in the ceiling
Wheelhouse
- Single helm seat with electric depth/height adjustment
- Side door
- Leather adjustable steering wheel with stainless steel spokes
- Internal dashboard consisting of:
- - 10" display
- - BRONZE PACKAGE electronic instruments
- - anchor winch control and chain meter counter built in the electronic instrumentation
- - Engine throttles
- - VOLVO maneuvering joystick
- - audible alarm controls
- - Communication systems (VHF)
- - Bow thruster controls
- - Trim tab controls
- - magnetic compass
- - USB socket
- - Adjustable air conditioning outlets
- - horn, anchor winch, windscreen wipers, windshield washers, engine battery parallel, and mute activation switches
- - Emergency panel

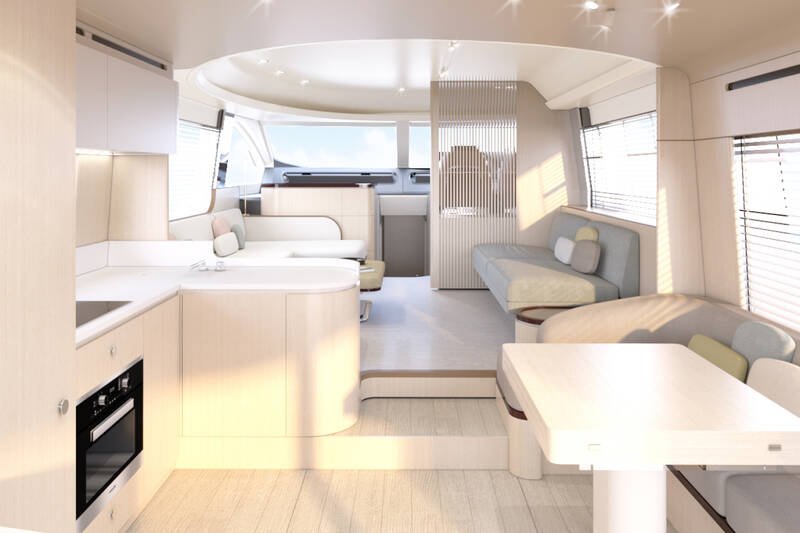

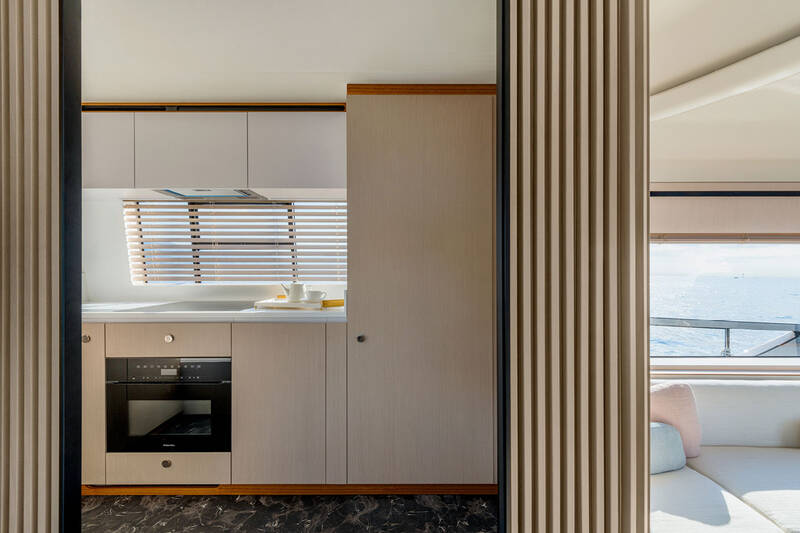

Galley
- Located on starboard side, forward of the saloon. It is composed of:
- Laminated floor
- Ceramic glass range with four hobs
- Extractor hood
- Stainless steel double sink
- 180 l (6.36 cu.ft) Fridge / Freezer
- 20 l (0.71 cu.ft) microwave oven + grill
- Lighting with LED spotlights recessed in the ceiling and LED bars mounted under the wall units
Corridor
- Below deck access from dinette with carpeted floor
- Lighting with LED spotlights recessed in the ceiling
- Fabric bulwark upholstery
- Staircase grabrails

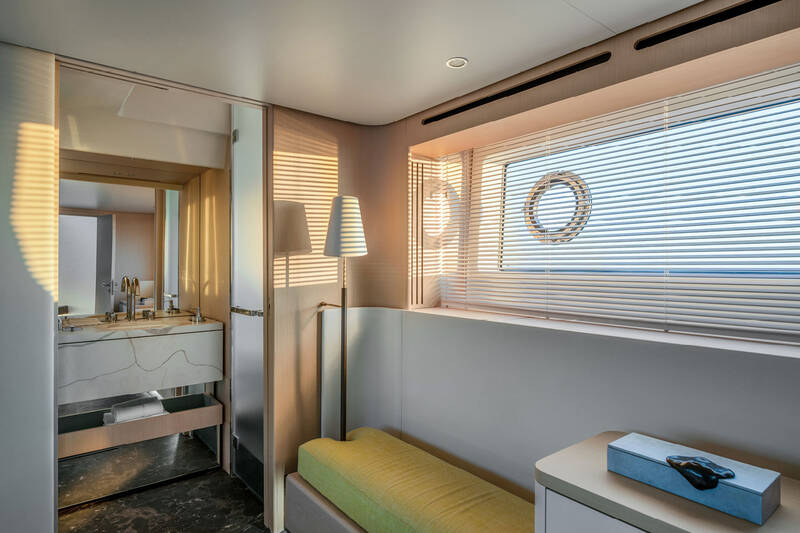

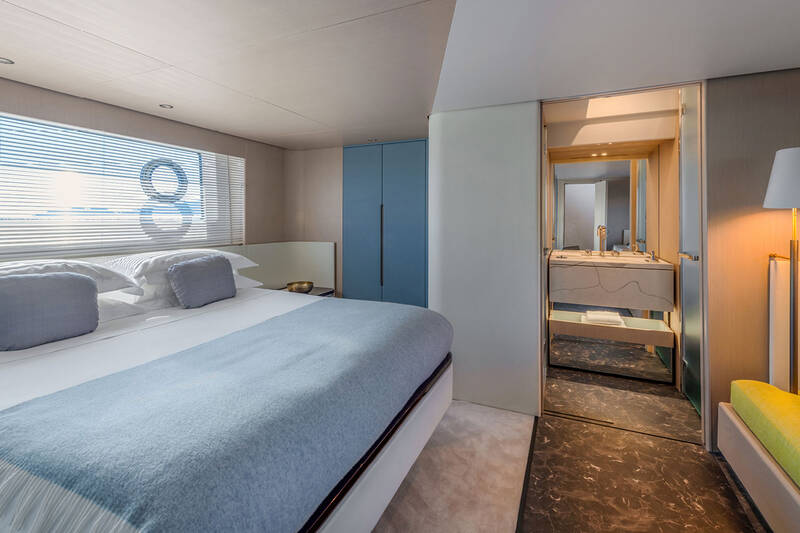

Owner’s cabin
- Full-beam owner's cabin, composed of:
- Double bed on starboard side with foldaway bed base and locker
- Leatherette upholstered headboard
- Two fixed bedside tables
- Wardrobe on bulwark with shelves, hanger bar and mirror
- Seating area on port side, with chest of drawers
- Lighting with LED spotlights recessed in the ceiling and LED strip at he base of the bed and of the left side step
- Two openable portlights
- Hull windows
- Wooden Venetian blinds
- Wood essence and fabric bulwark upholstery
- Wood essence and lacquered ceilings
- Provision for TV system
- Sockets
Owner's head
- Located aft of the owner's cabin
- It is composed of:
- Independent access from owner's cabin
- Oval GRP washbasin with lacquered top
- Separate toilet compartment with TECMA toilet and openable portlight
- Mixer tap
- Separate shower enclosure with seating area
- flat shower door
- Shower with shower head on ceiling
- Flush-mounting mixer tap for shower
- Storage under the washbasin top
- Lighting with LED spotlights recessed in the ceiling and LED strip under the washbasin
- Wooden Venetian blind
- Laminated shower floor
- Sockets
- Head accessories
- Head air extractor: forced suction from the shower ceiling panel

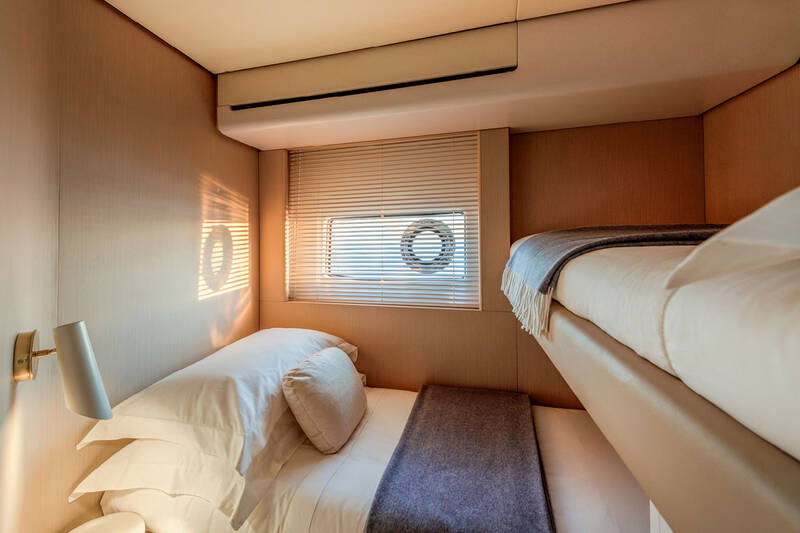

Port side guest cabin
- Located on port side. It is composed of:
- Two single bed arranged in L shape with locker in the lower bed
- One wardrobe with hanger bars
- One bedside table with drawer for the lower bed
- Fabric-upholstered ceilings
- LED spotlights
- Two wall lights on headboard
- One openable portlight
- Carpeted floor
- Wood essence wall coating
- Wooden Venetian blinds

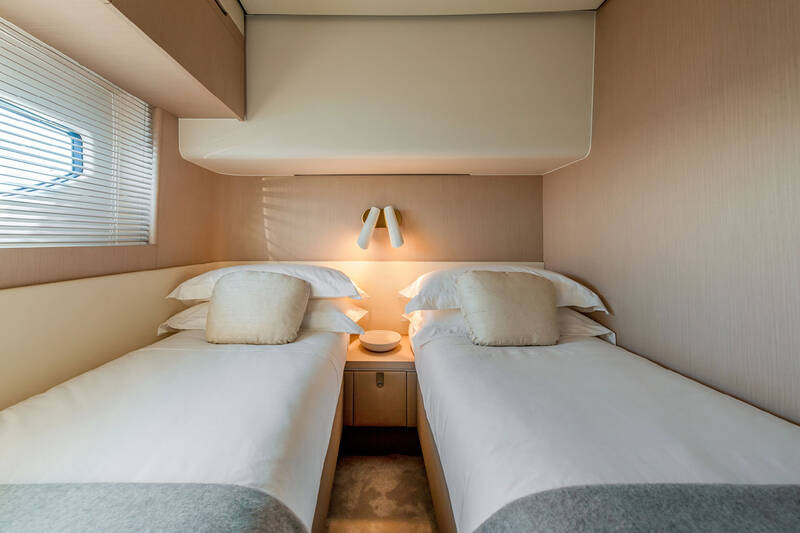

Starboard side guest cabin
- Located on starboard side It is composed of:
- Two single beds with lockers
- Leatherette headboard
- Two wall lights on headboard
- One wardrobe with hanger bar and drawer
- One central bedside table with drawer, between the beds
- Fabric-upholstered ceilings
- Lighting with LED spotlights recessed in the ceiling and LED strip
- One openable portlight
- Carpeted floor
- Wood essence wall coating
- Wooden Venetian blinds
- Fore mirror
Starboard guest head
- Positioned abaft of the VIP cabin, on starboard side
- It is composed of:
- Direct access from starboard guest cabin or from the corridor
- GRP washbasin with lacquered top
- Mixer tap
- TECMA toilet
- Separate shower enclosure with glass door
- Chromed shower rail
- Flush-mounting mixer tap for shower
- Lighting with LED spotlight recessed in the ceiling and LED bar recessed under the washbasin
- Underbasin drawer with shelves
- Wall unit with mirror
- One openable portlight
- Wooden Venetian blind
- Laminated shower floor
- Head air extractor: forced suction from the shower ceiling panel
- Head accessories
- Sockets

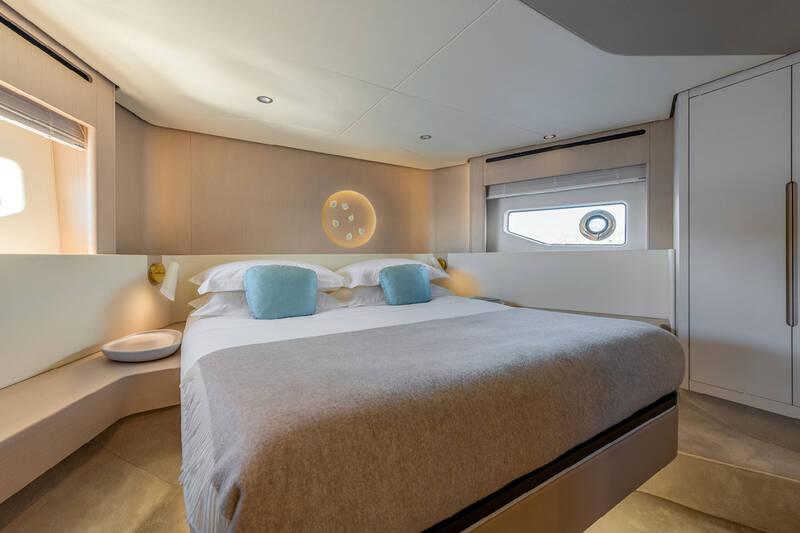

VIP cabin
- Located at the bow of the below deck area, it is accessible via the central corridor
- It is composed of:
- Double bed at the center of the boat with collapsible locker
- Leatherette headboard
- Two wardrobes with hanger bars and shelves
- Lighting with LED spotlights recessed in the ceiling with LED bars on the headboard and LED strip at the base of the bed
- Emergency exit in ceiling through concealed rectangular hatchway leading to fore sunbed area
- Direct access to VIP head
- Mirror on bulkhead
- Two openable portlights inserted in windows
- Wooden Venetian blinds
- Wood-upholstered bulwarks
- Carpeted floor
- Fabric-upholstered ceiling panels
- Sockets
VIP head
- Positioned abaft of the VIP cabin, on port side It is composed of:
- Direct access from VIP cabin
- GRP washbasin with lacquered top
- Mixer tap
- TECMA toilet
- Separate shower enclosure with seating area and glass door
- Chromed shower rail
- Flush-mounting mixer tap for shower
- Lighting with LED spotlight recessed in the ceiling and LED bar recessed under the top
- Underbasin cabinet with drawer
- Wall unit with mirror
- One openable portlight
- Roller-type curtain for shower
- Laminated shower floor
- Head air extractor: forced suction from the shower ceiling panel
- Head accessories
- Sockets
Crew room (OPTIONAL)
Crew cabin (optional)
- Access from platform
- Two single beds
- Two wardrobes + storage under the ladder and on starboard bulwark
- One head wall unit
- Laminate-covered bulkwark
- GRP ceiling + upholstered panels
- Openable portlight
- Carpeted floor
- LED spotlights
Crew head (optional)
- TECMA toilet
- Washbasin
- Chromed mixer tap
- Shower rod
- Wall unit with mirror
- Socket
- Head accessories
- One air extractor
Electric system
Main characteristics
- Shore-powered power supply
- Two DC electric panels installed on the aft bulkhead in the engine room
- Two AC electric panels installed in the aft service compartment
- Auxiliary AC/DC electric panel installed in the dinette zone, port side
- Emergency control panel installed in the wheelhouse
- Battery switch control panel located in the cockpit
- Onboard voltages:
- -230V-50HzAC
- - 24 V DC from battery set
- - 12 V DC from DC-DC voltage reducer
Generator
- One 5 kW generator
- Remote start up
Shore power sockets
- EU one 3P 50 A socket
- The alternate current power sources terminate in the electric panel installed in the service compartment. The power sources are protected by suitably sized power circuit breakers, and introduced into the network by means of remote control switches.
Batteries
- Services: six 95 Ah - 12 V DC batteries
- Engines: four batteries in total, installed in two separate battery sets, two foreach engine; each set is composed of two 95 Ah - 12 V DC batteries
- Generator: one 70 Ah - 12 V battery
- Battery recharging through battery charger
- One 80 Ah - 24 V battery charger for the service batteries/service backup/engine starting
- One 12 Ah - 12 V battery charger for generator starting
Lights and sockets
- AC sockets: 230 V for main utility power supply, EU type
- USB sockets
- 24 V LED internal lighting
- 24 V LED external lighting
- Electronic navigation instruments
- For STD equipment, see the paragraphs on “Flybridge” and “Wheelhouse”
- For a detailed list of alternative/additional equipment available, please refer to the Optionals price list
Bilge system
- Main system composed of three automatic and independent pumps located in each watertight compartment:
- - two in the engine room (fore and aft)
- - one (central) under owner's cabin floor
- Secondary or auxiliary system, composed of two manual pumps with three suction points located as follows:
- - one in the engine room (fore and aft)
- - one (central) in owner’s cabin starboard side wardrobe area
Fire extinguishing system
- One system manual activation control in the cockpit
- One gas fire extinguisher in the engine room
Fuel system
- One aluminum fuel tank, installed transversally in the engine room, total 3700 l (977.4 US.liq.gal.)
- One diesel tank electronic level gage on wheelhouse display
- One fuel level optical gage on tank
- Two engine single VOLVO settling filters
- One generator RACOR filter
- Two tank vents on bulwark, one per side
- Remote engine diesel shut-off via 24 V solenoid valve
- Remote generator diesel shut-off via 12V solenoid valve
- Refueling plugs on both side decks
Fresh water system
- 1000 l (264.2 US.liq.gal.) plastic tank located under the fore tray
- Water refill through cap located in the fore part of the starboard walk around
- Water pressure pump unit located in the engine room, port aft side (24 V - 50/60 Hz) with electronic control
- 80 l (21.12 US.liq.gal.) water heater located in the engine room, port side
- Hot/cold water in all heads, galley and platform shower head
- Cold water in engine room, cockpit and flybridge
- Fresh water toilet flushing
- One level sensor with electronic indicator on the 24 V electric panel and on wheelhouse display
- System that can be isolated by ACORN manifolds
Black water system
- One 350 l (92.5 US.liq.gal.) polyethylene tank under the VIP cabin
- Level sensor
- One tank vent on bulwark with anti-odor filter
- One macerator pump
- Suction point from deck walk around
- Three TECMA toilets
- Sea outlet from tank manually controlled from the wheelhouse through 24 V membrane pump
Gray water system
- One 200 l (52.8 US.liq.gal.) polyethylene tank under the corridor
- Level sensor with automatic pump control and alarm on the wheelhouse
- Additional 16 l (4.23 US.liq.gal.) plastic tank located under the owner's cabin floor
- Diaphragm pump
- Sea outlet from tank via 24 V membrane pump manifolds
Seawater system
- Engine cooling system: includes two seawater intakes with filter and 2,5" ball valve
- Generator cooling system: includes one seawater intake with filter and 1" ball valve
- Chain washing pump with one dynamic seawater intake with valve
Ventilation/extraction
- Two extractors located abaft the engine room
- One forced ventilation duct and one natural ventilation duct
- Head air extraction system via 24 V gas extractors with control in head
Other systems
- VOLVO interceptor system
- 24 V electro-hydraulic pump for bathing platform
Air conditioning system (OPTIONAL)
- Air conditioning type: the system is of the thermally-treated water circulation type, with fancoils located in various rooms
- Cooling unit in engine room, 96000 total BTU/h with inverter technology
- One seawater pump and one fresh water circulation pump
- Fan coils distribution:
- - PORT GUEST CABIN: one AP1 - 4480 BTU/h
- - STARBOARD GUEST CABIN: one AP3 - 6200 BTU/h
- - SALOON: two AP5 - 9200 BTU/h (18400 BTU/h)
- - GALLEY: one AP5 - 9200 BTU/h
- - CREW ROOM (OPT): one AP5 - 9200 BTU/h
- - OWNER’S CABIN: one AP8 - 12500 BTU/h
- - VIP CABIN: one AP8 - 12500 BTU/h
- - WHEELHOUSE: two AP8 slim - 12500 BTU/h (25000 BTU/h)
- - DINETTE: one TWIN12 - 12000 BTU/h
- Control panel for each area
Equipment
- One telescopic boat hook
- Two mooring lines
- Fender lines: 18 m (59'1'')
- One anchor chain stopper
- Six fenders
- Six black fender covers
- One Owner's manual
- One wooden boat model
- One AZIMUT warranty service booklet
- Two floating keyrings
- One large bag with logo for manuals
- One remote control holder with logo
- One shower pipe storage bag
