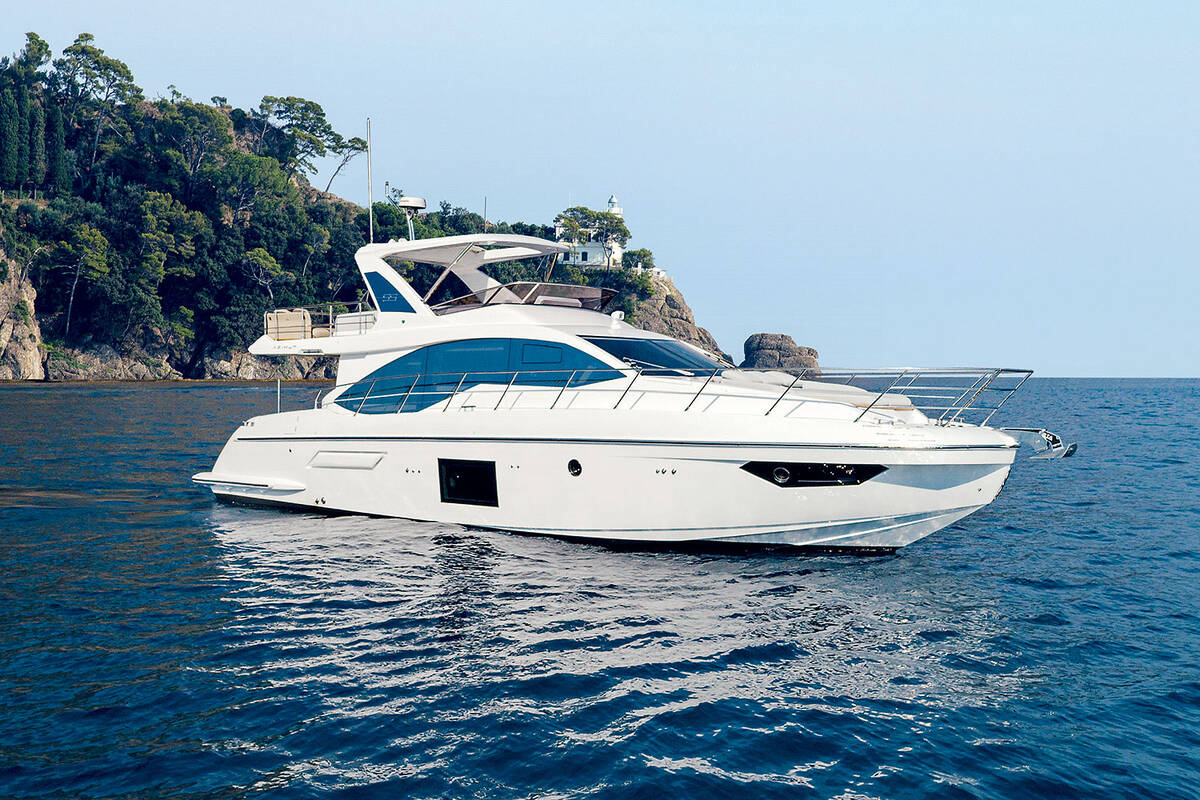

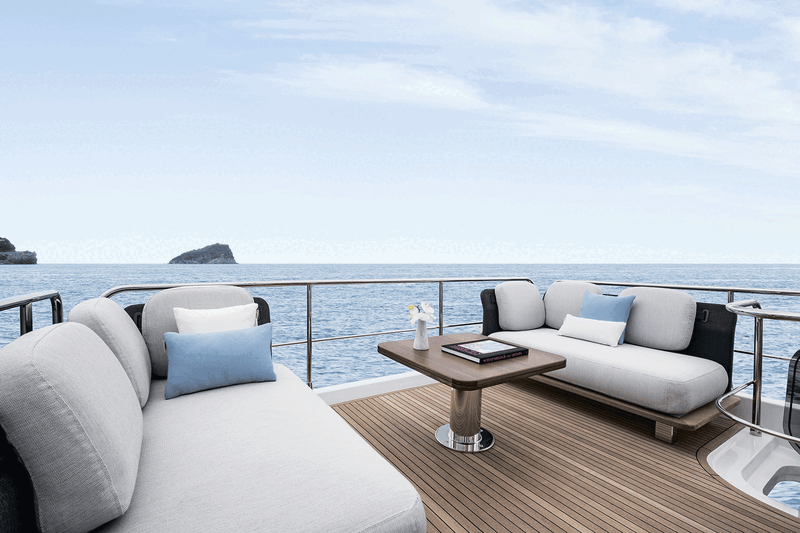

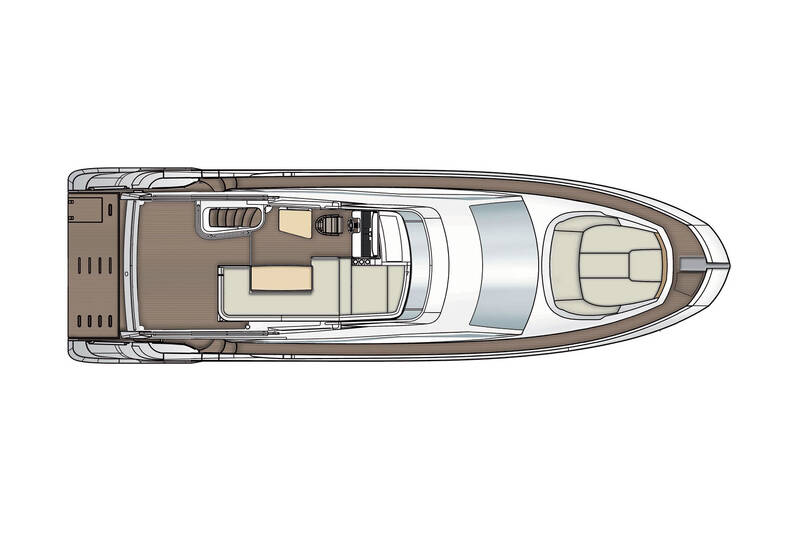

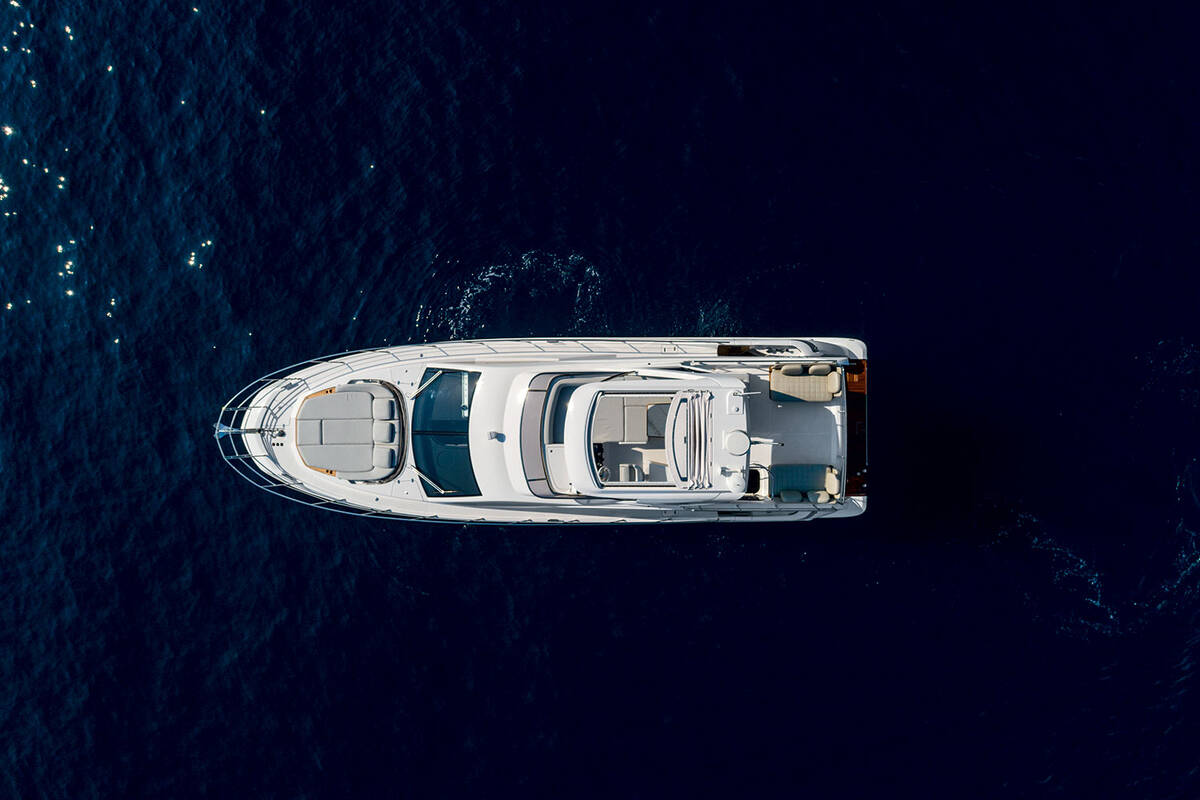

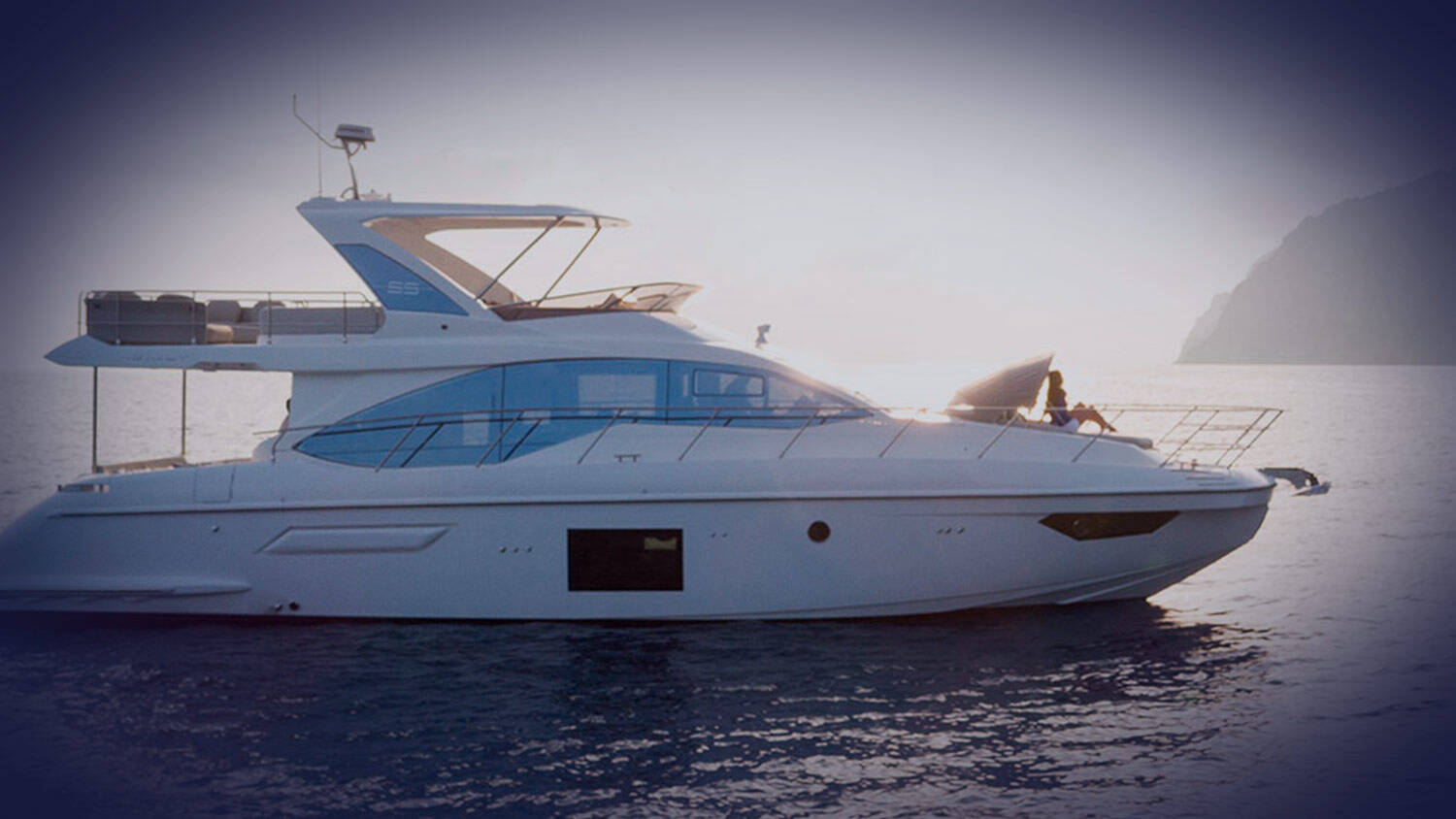

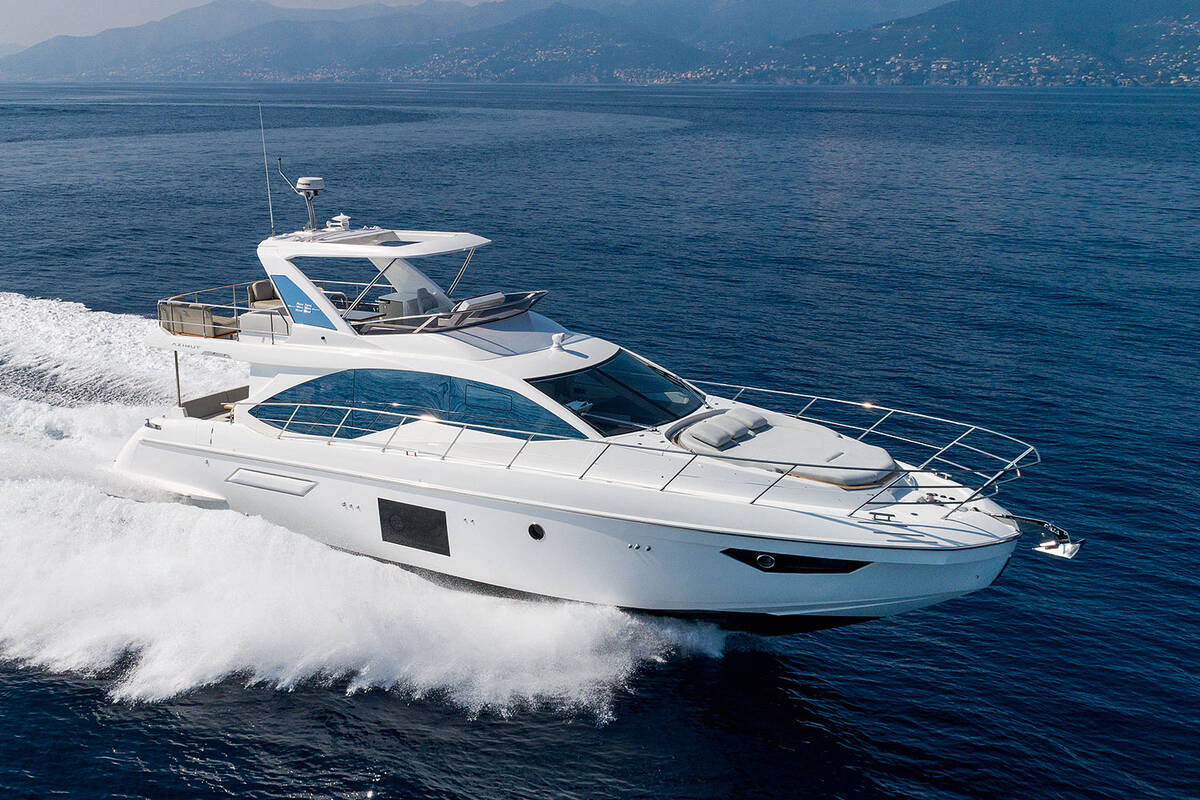

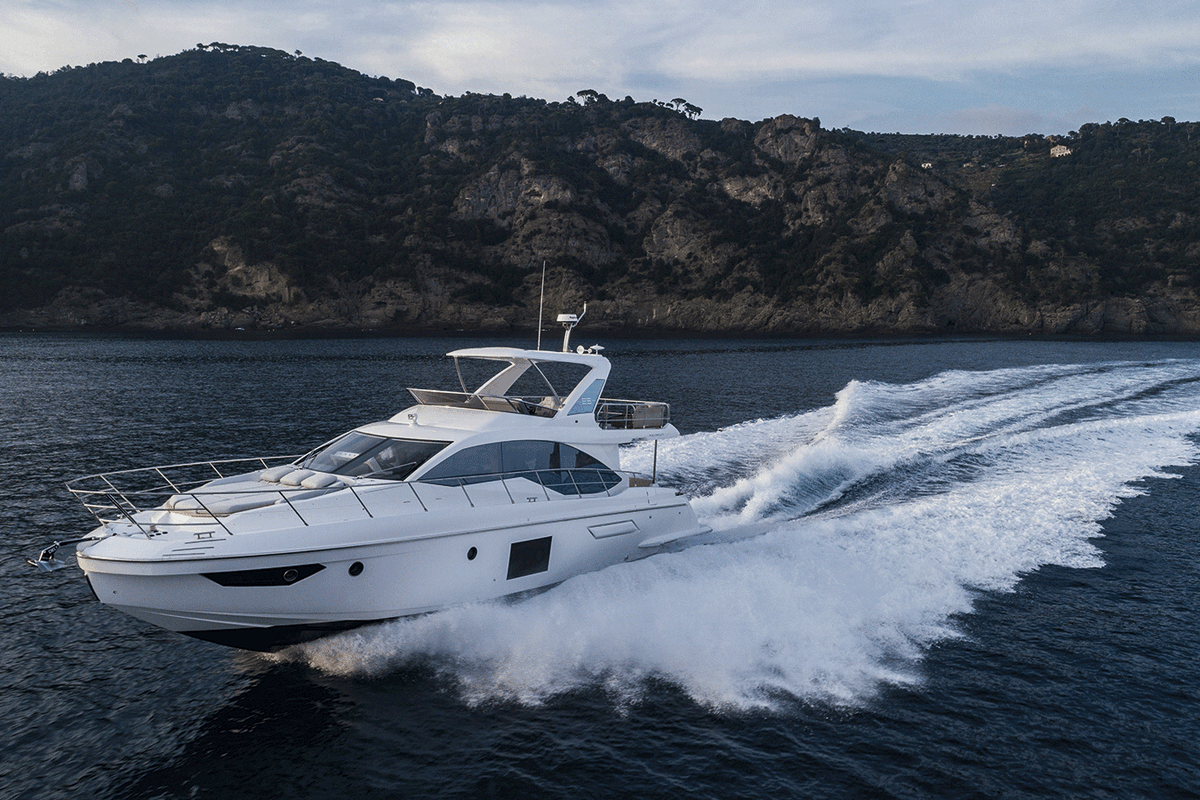

Flybridge
- The large flybridge can only be accessed from the outside (ladder from cockpit, portside)
- GRP cockpit stairs with 6 teak-coated steps
- Flybridge non-slip floor
- Access door in aluminum and Plexiglas
- Smokey Plexiglas flybridge screen with stainless steel frame
- Radar arch in GRP and inserts in mirrored glass
- Handrail: stainless steel (stern flybridge handrail, flybridge access protection handrail, flybridge life rail)
- Fore sunbed area
- Single helm seat with pedestal

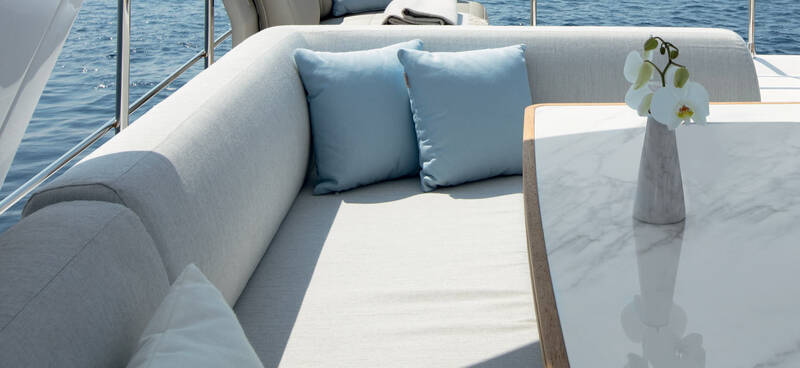

- "C"-shaped sofa for 5 people on port side, with table
- Adjustable steering wheel (painted white)

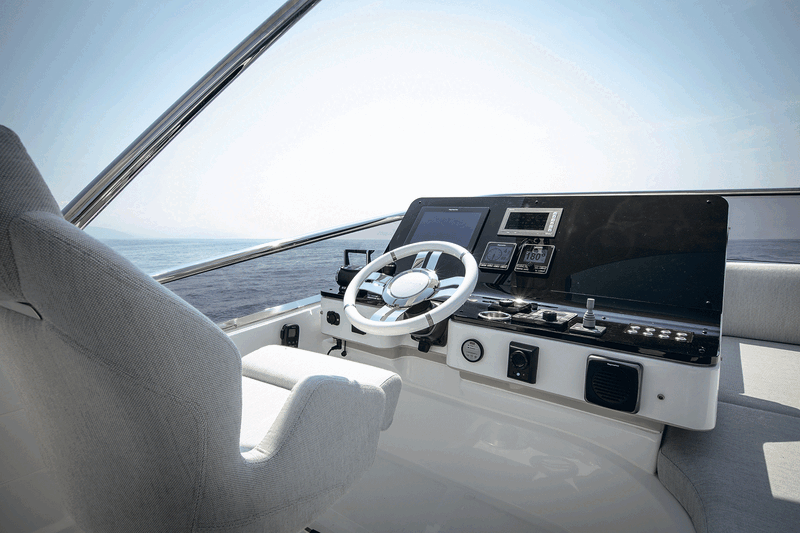

- The wheelhouse includes:
- - Main engine instruments
- - 1 engine data display
- - Engine start-up controls
- - Bow anchor winch controls
- - horn controls
- - Trim tab controls
- - Bow thruster controls
- - 12V socket
- - Chain meter counter
Bow / walk arounds
Bow
- Anchor chain and fender locker with water drainage
- Delta 25kg galvanized steel anchor
- 75-meter high-resistance gaged chain, diameter 10mm
- Bow roller
- WINCH 1700W 24V
- 2 stainless steel cleats L. 300 mm oval tube
- Chain washing pump
Walk arounds
- Refueling: 2"Diesel" refueling plugs with cover
- Fresh water filling: 1 "Water" filling plug
- Black water outlet: 1 "Waste" outlet water plug
- 2 stainless steel cleats (intermediate)
- Non-slip floor
- Flybridge side handrail
- Rub-rail: in stainless steel and high resistance PVC
- Pulpit
Cockpit and platform

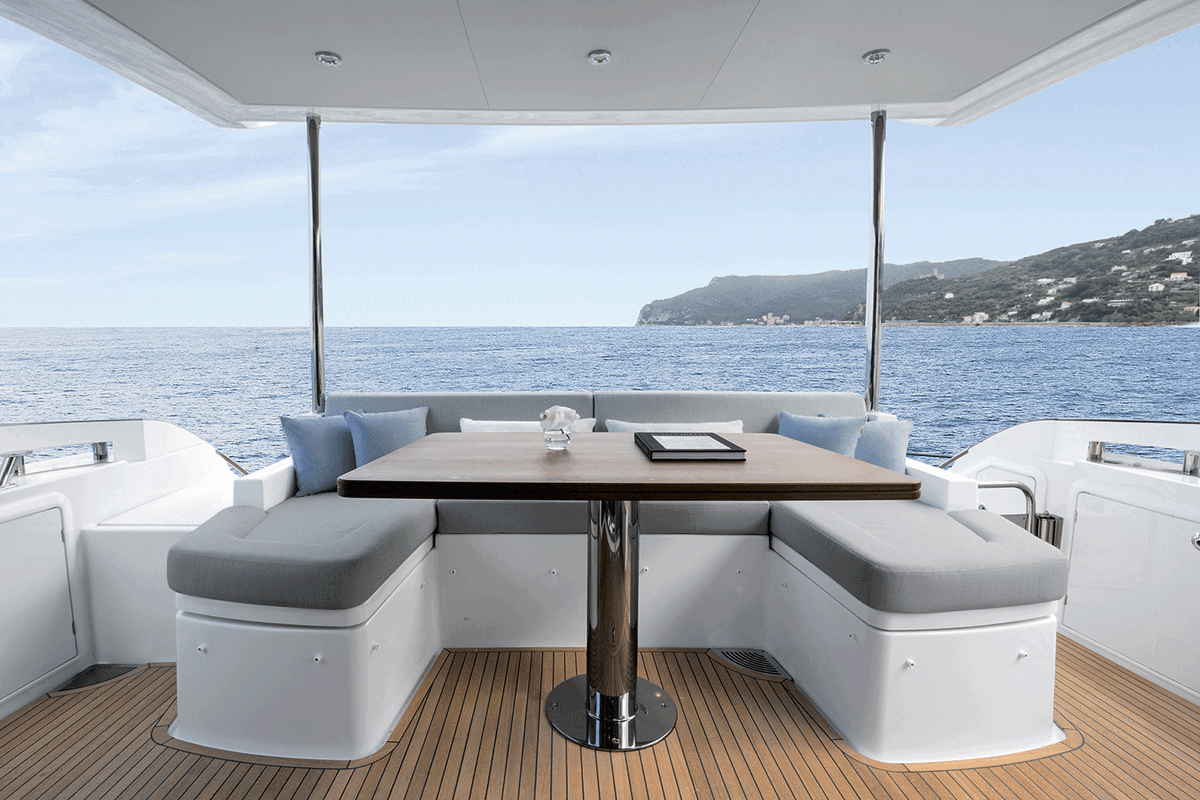

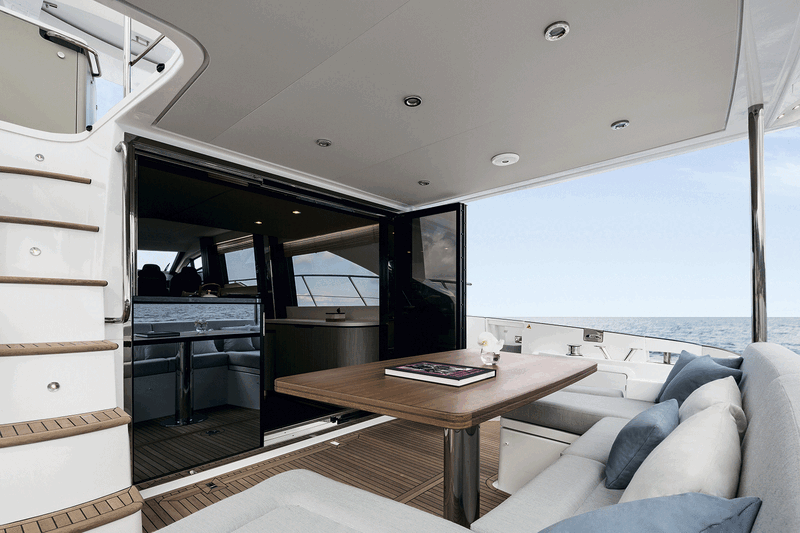

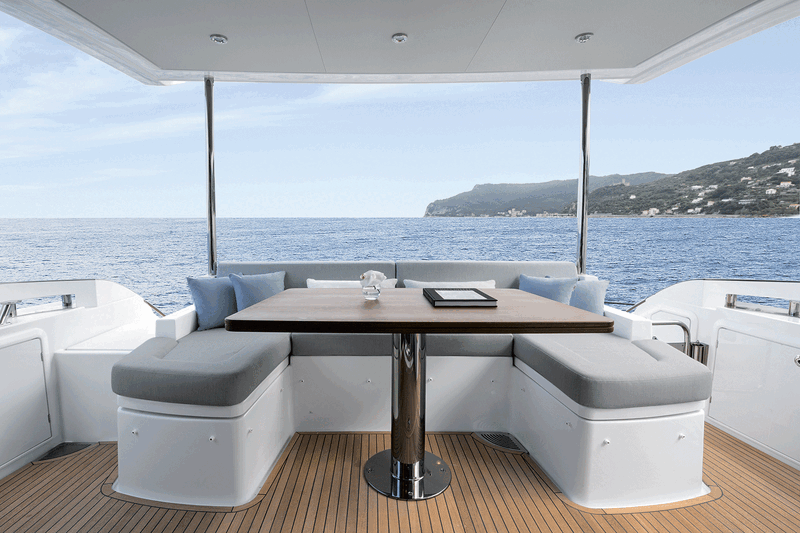

Cockpit
- Cockpit access on port side with stainless steel and Plexiglas gate.
- 2 stainless steel T-head cleats
- Mooring station on both sides
- Stainless steel port/starboard stern chock
- Stainless steel door: 2 rotating panels and automatic vertical sliding window
- 4-seater C-shaped cockpit bench (in GRP integrated in the deck).
- 1 locker in the port deckhouse column below the flybridge access ladder.
- 2 lockers under the cleat (on each side).
- Engine room access via door in cockpit floor.
- Crew cabin access from stern, with GRP piston lifting-type door
- Crew escape through cockpit bench (starboard side)
- Teak floor
- Curved handrail on stern platform.
- Handrail on flybridge access stairs.
- Lighting: spotlights in cockpit ceiling panel.
Platform
- Stern platform lights
- Teak floor
- Shower head with hot and cold water.
- Swimming ladder
- Emergency rope ladder
- Stainless steel handle for boarding from the sea
- Platform measurements:
- - width 3.58m
- - length 1.26m (platform only)
- - total length 1.46m
- INSTALLABLE TENDER:
- - HYPOTHETICAL PLATFORM TENDER: 3.2 x 1.5 m.
- - RECOMMENDED WILLIAMS TENDER:Turbojet 285

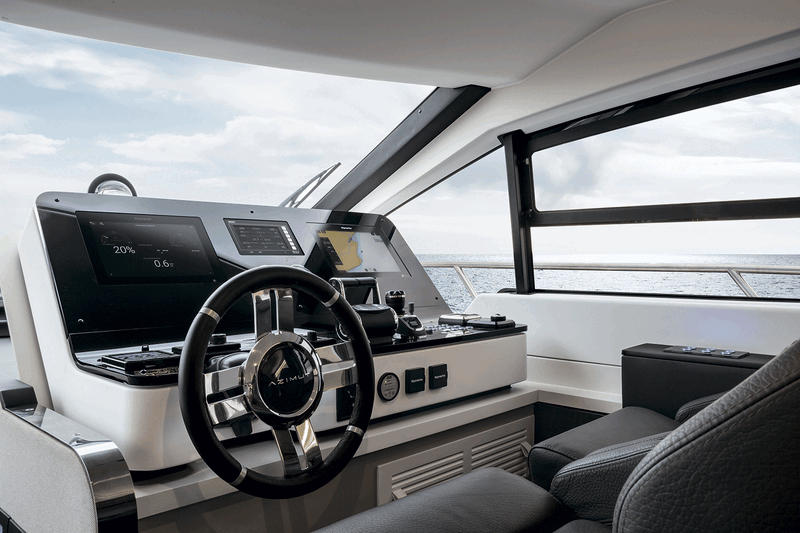

Wheelhouse
- Single depth-adjustable helm seat
- Vertical sliding electric window
- Cabinet for tableware beneath the helm seat
- Height-adjustable steering wheel
- The wheelhouse includes:
- - Main engine instruments
- - 1 engine display
- - Engine start-up controls
- - Bow anchor winch controls
- - horn, windscreen wipers, navigation lights controls
- - Trim tab controls
- - Bow thruster controls
- - Side window opening
- - Chain meter counter
- - engine room ventilation

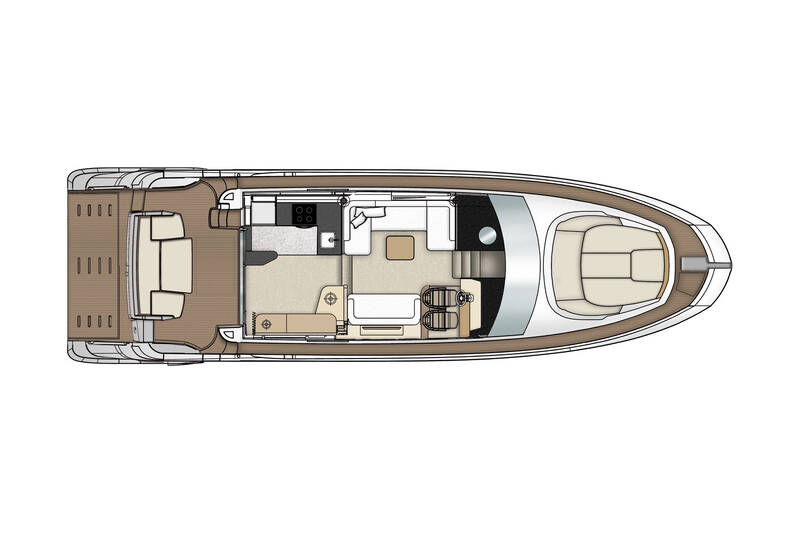

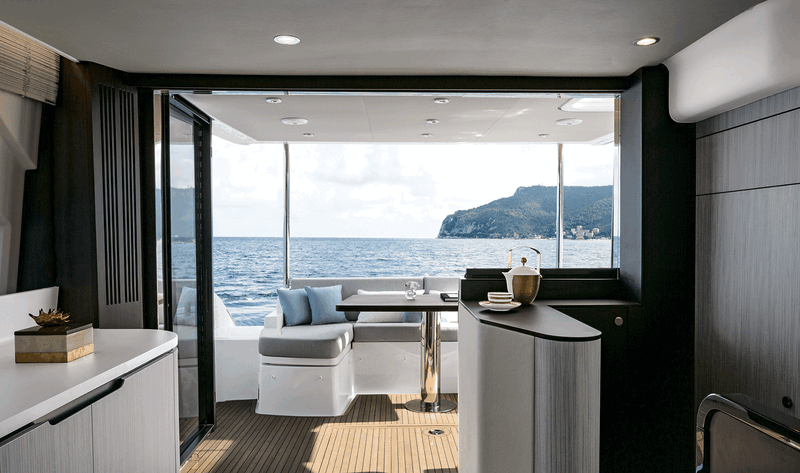

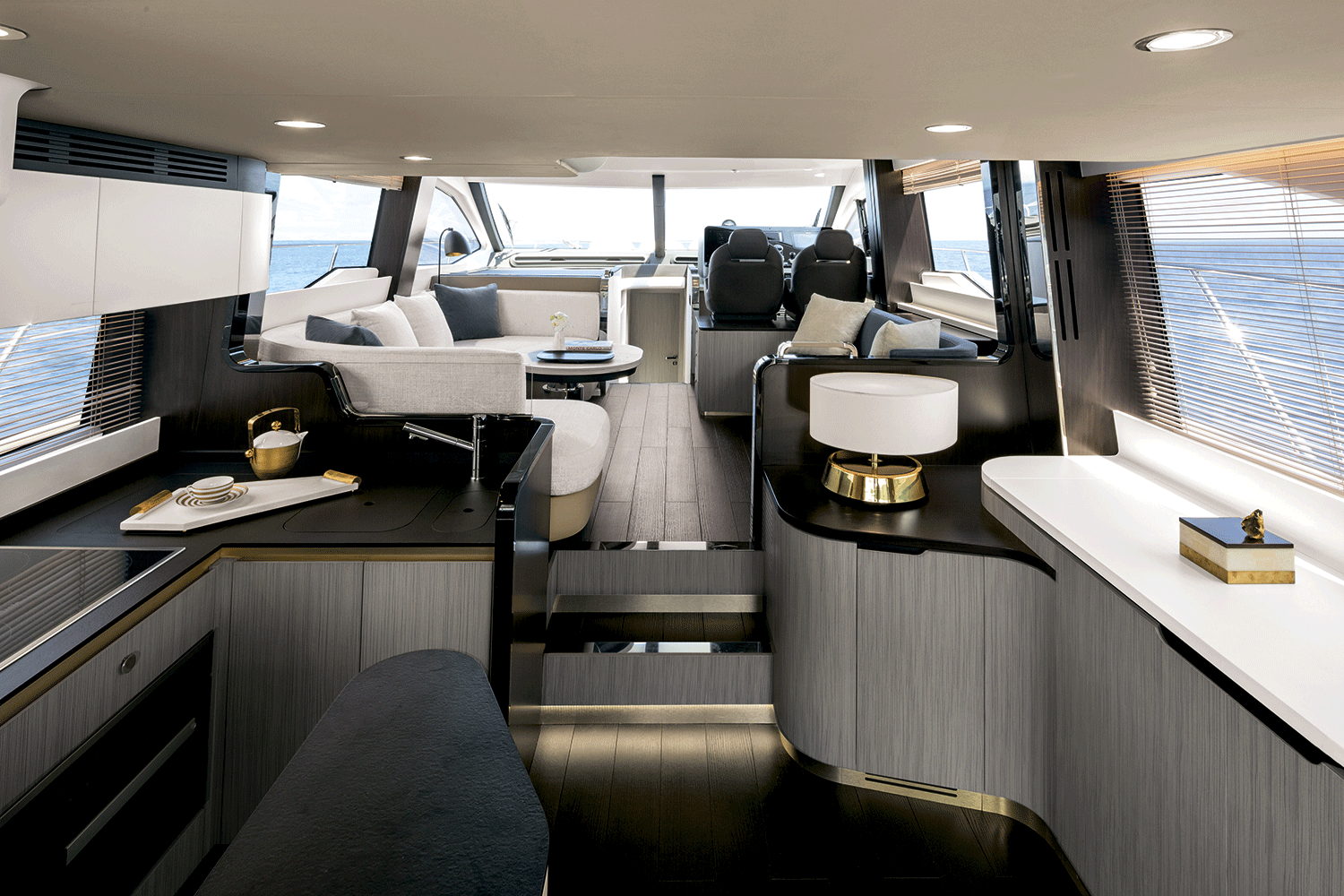

Galley / Saloon and Dinette

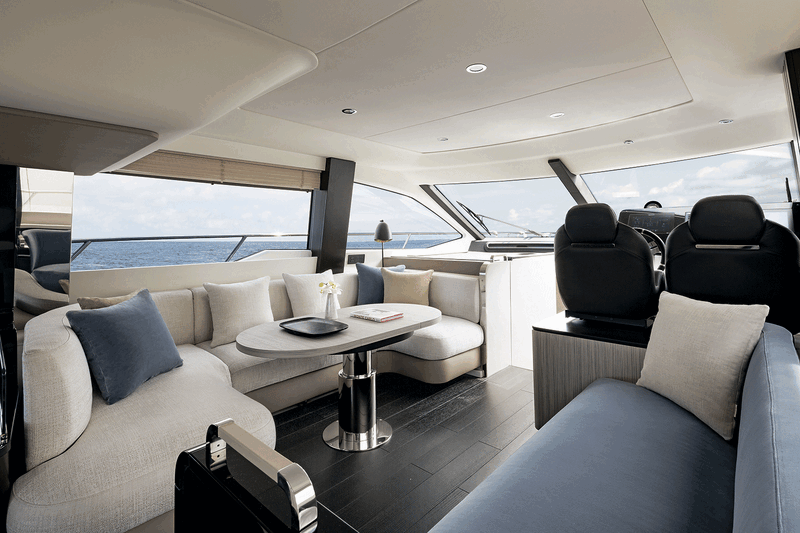

Saloon and Dinette

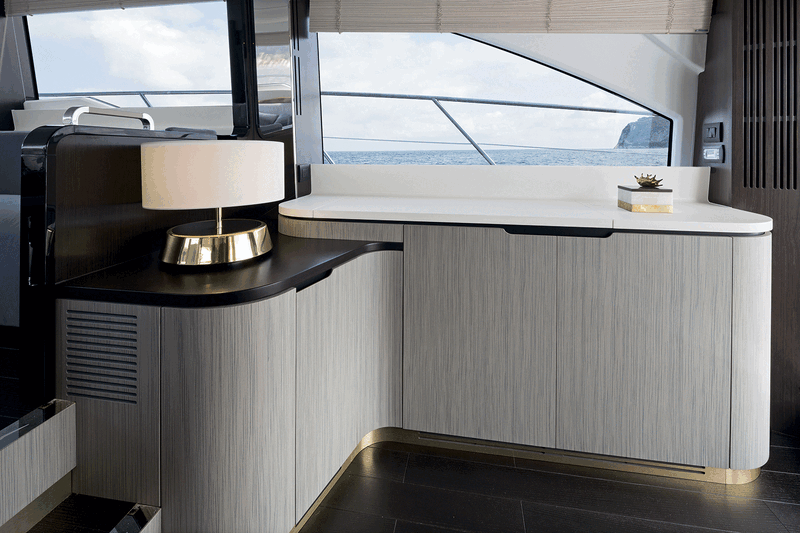

- Storage cabinet with collapsible panels and top located aft of the main deck on starboard side
- 2 utility panels located in the storage cabinet compartment
- Sofa for 2 people on starboard side
- "C" shaped sofa on port side
- Fix table
- Provision for TV system
- Carpeted floor
- Below deck access ladder with carpeted steps
- Laminated ceiling with leather-coated panels
- Roman blinds
- sliding curtain on saloon door

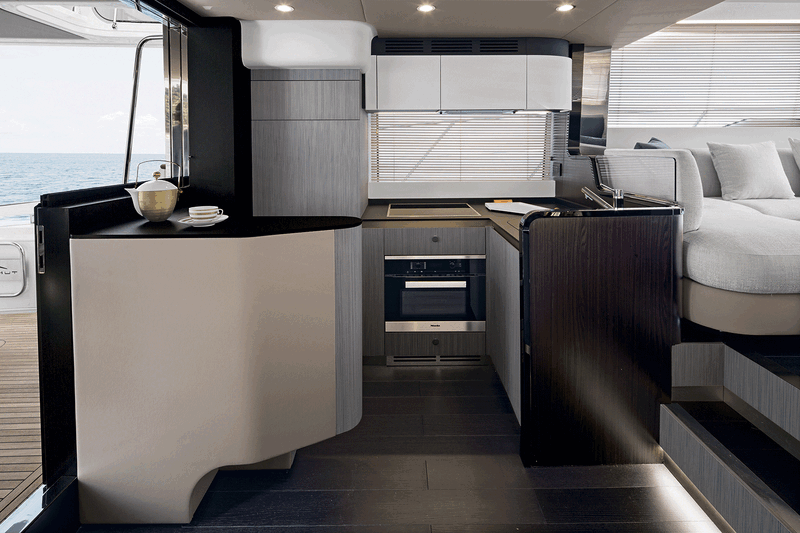

Galley
- Located aft of the main deck on portside
- "L" shaped peninsula with storage
- Galley top
- Ceramic glass range (4 hobs)
- 2 stainless steel washbasins
- Extraction hood installed in the wall unit above the range
- Microwave oven + grill 20 I
- Fridge 185 I + freezer 44 I
- Wooden floor
- lighting with LED and spotlights on ceiling

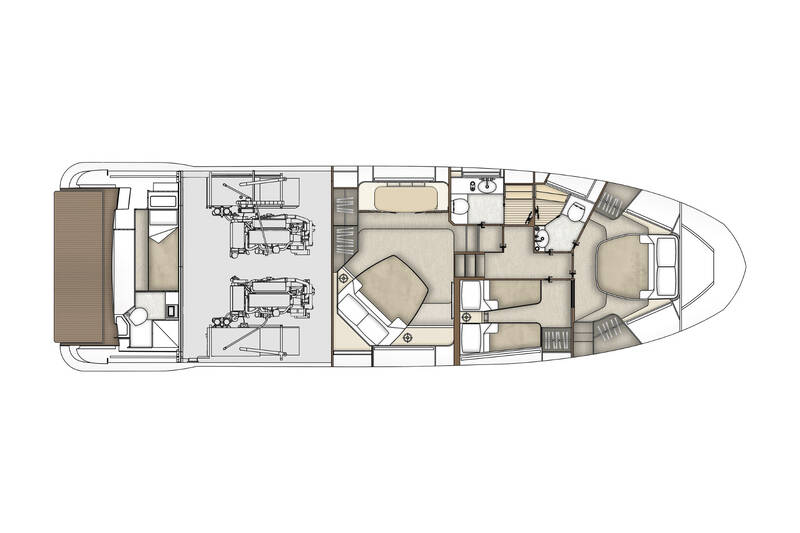

Corridor
- Below deck access corridor with carpeted floor
- Spotlights
- Fabric wall upholstery
- Round skylight with Plexiglas

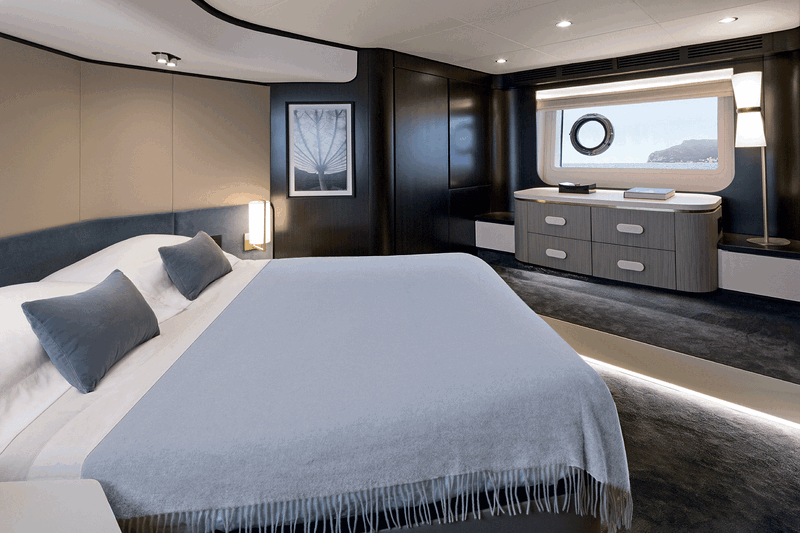

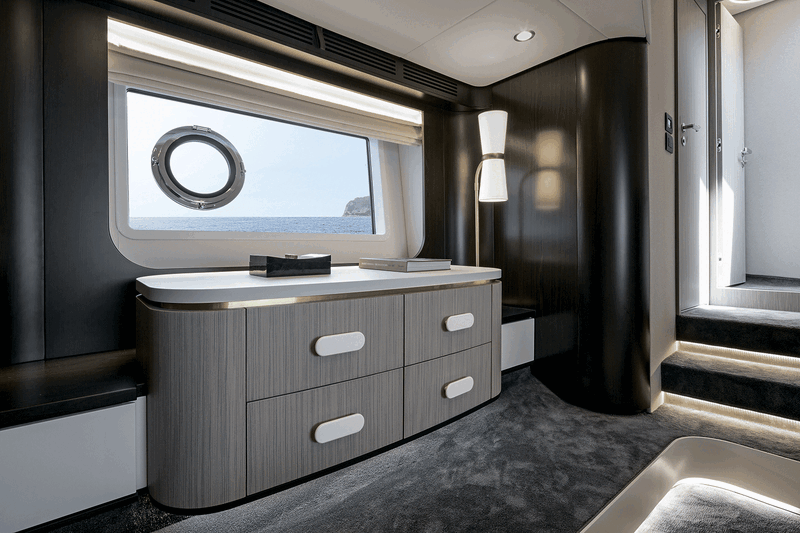

Owner’s cabin
- Located midship
- Double bed positioned diagonally with lockers accessible from above, and front drawer.
- Chest of drawers on port side
- 2 wardrobes with hanger bars
- 1 wardrobe with shelves
- 2 bedside tables (1 fix and one openable) built in the shelf around the bed
- Ceilings with panels part coated in leather and part painted
- lighting with LED strip and spotlights
- Headboard
- 2 wall lights on headboard
- One frame windows with built-in openable portlights
- Carpeted floor
- Fabric wall upholstery
- Direct access to owner head through internal ladder
- Hatchway: escape route above the chest of drawers
- Curtains
- Provision for TV system

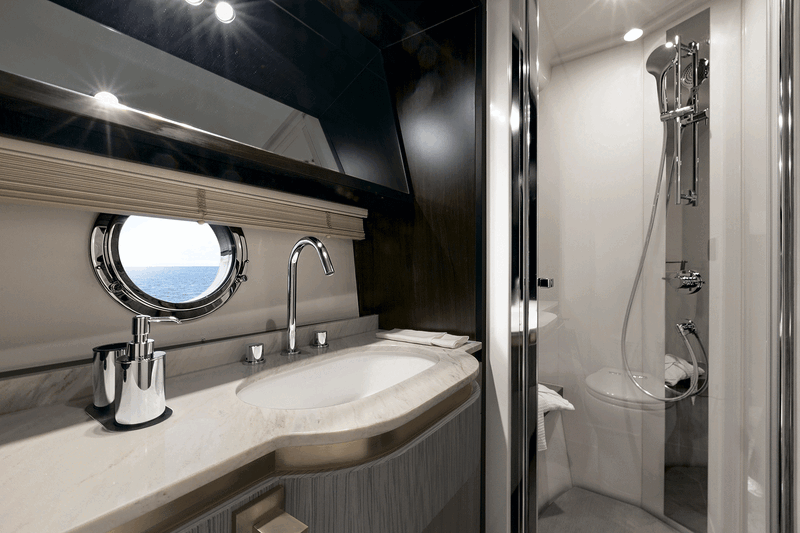

Owner's head
- Located forward of the owner's cabin, on port side
- Access from owner's cabin
- Washbasin with rosewood marble top
- TECMA toilet
- Chromed mixer tap
- Separate shower enclosure; flat shower door
- Shower column
- Wall unit above washbasin
- GRP ceilings
- Wooden floor
- 1 openable portlight
- lighting with LED strip and spotlights
- Head accessories

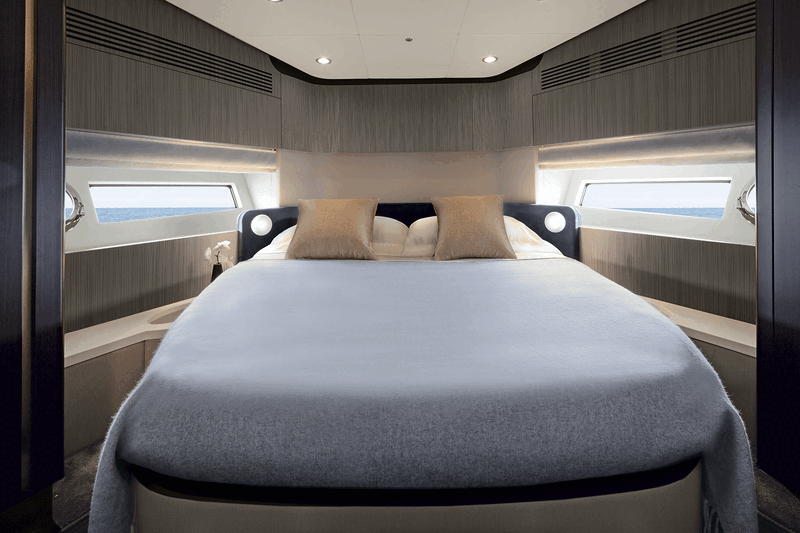

VIP cabin
- Located at the bow
- Double bed with lockers accessed from above
- 1 wardrobe with hanger bar and shelves on the starboard stern wall
- 1 wardrobe with hanger bar on the port stern wall
- 2 wall units above bow windows
- Shelf around the bed with storage compartments below
- Ceiling with leather-coated panels
- lighting with LED strip and spotlights
- Headboard
- 2 wall lights on headboard
- Windows with built-in round portlight
- Carpeted floor
- Fabric wall upholstery
- Direct access to guest head
- Hatchway
- Curtains

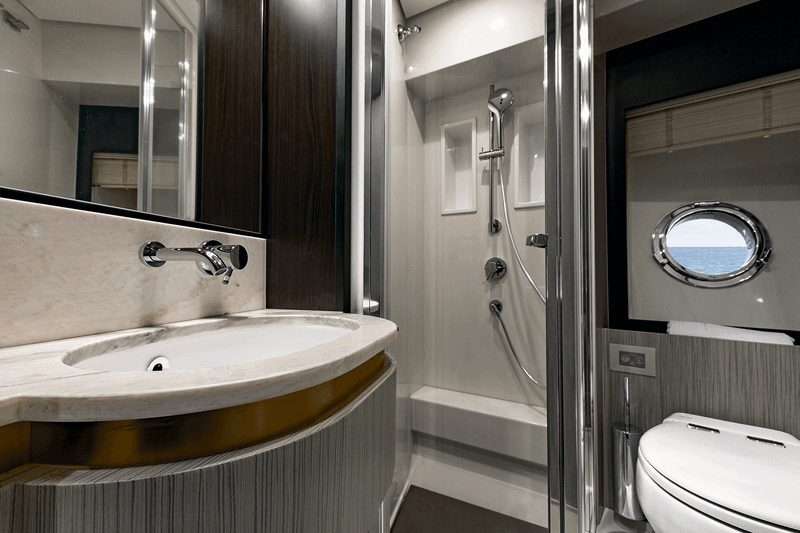

VIP / Guest head
- Located aft of the VIP cabin, port side
- Access from VIP cabin or corridor
- Washbasin with statuary guartz top
- TECMA toilet
- Chromed mixer tap
- Separate shower enclosure; flat shower door
- Shower column
- Wall unit above washbasin
- GRP ceilings
- Teakno tek floor
- 1 openable portlight
- lighting with LED strip and spotlights
- Head accessories

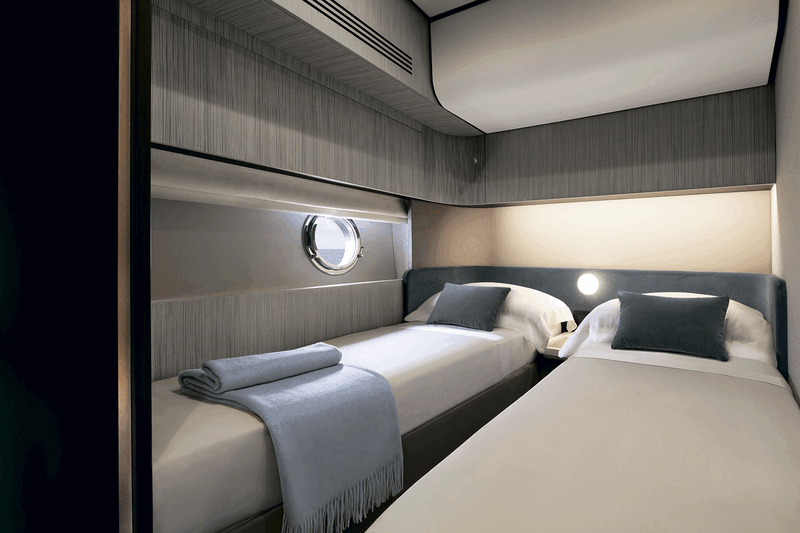

Guest cabin
- Located on starboard side
- 2 single beds with lockers
- 1 wardrobe with hanger bar and shelves
- 1 central bedside table between the beds with compartment below
- Painted ceilings
- lighting with LED strip and spotlights
- Headboard
- 1 wall lights on headboard
- 1 openable portlight
- Carpeted floor
- Fabric wall upholstery
- Curtains
Crew cabin (OPT)
- Access from the stern
- Single bed with under-bed compartments
- 1 wardrobe
- 1 head cabinet
- GRP ceiling with leather-coated panels
- 1 portlight
- 1 headboard light
- Spotlights
- Fabric blind
En suite head
- TECMA toilet
- Washbasin
- Chrome mixer with extractable shower head
- Waterproof shower curtain
- Head accessories
Electric system
Main characteristics
- Shore-powered power supply
- Onboard voltages:
- - 230V-50Hz AC
- - 24V DC
- - 12V DC
- The main panels are installed in the saloon, in the engine room, and in the crew cabin
- In the saloon there are other power circuit breakers that protect the various 230V AC utilities, as well as the 230V AC shore or generator source selectors; the 230V power circuit breakers for the air conditioning system are also located here
- The panels in the engine room and crew cabin will also include additional power circuit breakers for the various 24V DC utilities
Galvanic current insulation
- zinc anodes
Generator
- A 3.5 kW 50 Hz generator îs provided
Shore power sockets
- 1 50A shore power socket located astern
Batteries
- Set of six 90Ah 24V batteries, for services
- Set of four 90Ah 24V batteries, for engines
- Battery 12V 70Ah, for generator
- 80A (220 / 110V) battery charger
- generator 10A (220 / 110V) battery charger
- all the sets are controlled via battery cut- out switches
Lights and sockets
- EU-type power sockets.
- 24V internal LED lighting
- 24V external watertight LED lighting
Electronic navigation instruments
- For STD eguipment, see "flybrîdge dashboard eguipment" and "internal dashboard eguipment" paragraphs
- For a detailed list of alternatîve/additional eguipment available, please refer to the Optîonals price list
Bilge system
- 3 electric pumps 24V - (bow, engine room, crew cabin).
- 2 manual emergency pumps.
- Rapid pumping of engine room via engine water pump
Fire extinguishing system
- 2 powder extinguishers, 12kg, approved by RINA, with nozzles above engines and marine gears; operated through a mechanical handle
- Emergency engine stop controls in cockpit
Fuel system
- 2 connected tanks of 1150 I each (total capacity 2300 I), in aluminum
- Optical gage on tank (port tank)
- 2 single filters (settlers) for engines + 1 filter for generator
- 2 refueling plugs on walk arounds
- 2 vents on bulwark
- Remote diesel shut-off via 24V solenoid valve
- Fuel drawing tap on port tank
Fresh water system
- A 590-liter polyethylene tank below the cabin stairway, access area (aft tank). With aluminum frame and GRP cradle
- Water filling on starboard walk around
- Level sensor with electronic gage in wheelhouse
- 1 tank vent on the bulwark
- Water pressure pump in engine room
- 60 liter water heater in crew cabin
- Suitable for water supply direct connection from shore
- Hot/cold water line: heads, galley,bathing platform shower head, flybridge washbasin;
- Fresh water toilet flushing
- System that can be isolated by ACORN manifolds
Black water system
- 175-liter polyethylene tank below the VIP cabin (fore tank)
- Level sensor (2 levels)
- 1 tank vent on bulwark with anti-odor filter
- 1 macerator pump
- Suction point from deck walk around
- Tecma toilet AII the toilets discharge into the tank.
- Sea outlet from tank
Gray water system
- 175 I polyethylene tank located under accommodation corridor (central tank)
- Sea outlet from tank
- Level sensor (2 levels) with alarm indicatorin wheelhouse
- Water discharge: from tank (automatic / manual)
- Diaphragm pump
- Fan-coil condensation outlets
Seawater system
- Engine cooling system: 2 dynamic seawater 3" intakes with filter and valves
- Generator cooling system: submerged outlet: 1 dynamic 1" seawater intake with filter and valve
- Air conditioning cooling system: submerged outlet: 1 dynamic 1 1/2" seawater intake with filter and valve
- Chain washing pump: seawater 3/4"
- Provision for desalination system, 3/4"
Engine gas exhaust system
- Gas exhaust system: submersed bypass
- Insulated stainless steel raisers
- Exhaust pipes: structural muffler in GRP
- Water/fumes separator for generator, with side exhaust
Engine room (other)
- Access from door in cockpit floor
- Battery housing:
- -1 tank in engine room (aft bulkhead)
- -1 tank in crew cabin, port side
- Sound-proofing
Engine room ventilation
- Engine room:
- -air intake points on hull (separator filters)
- -ventilation with natural intake
- -Forced extraction: with 2 fans 24V, D. 250mm
Other systems
- SEASTAR electric steering system
- Zipwake flaps
- Raymarine autopilot system
- Lift system
Air conditioning system (OPT)
- WORLD SPEC water system version
- 1 compressor in engine room, total 60,000 BTU (with inverter)
- 1 seawater pump with relevant seawater intake in engine room
- A/C controls: Control panel in every cabin and in the saloon
Equipment
- 1 telescopic boat hook
- 5 anchor lines
- 24 m fender lines
- 1 anchor chain stopper
- 8 fenders
- 8 black fender covers
- 1 Owner's Manual
- 1 AZIMUT document holder
- 1 wooden model of the boat
- 1 AZIMUT warranty service booklet
- 1 stainless steel cutlery service
- 1 set of china plates
- 1 set of glasses
- 1 set of stainless steel cooking pans
- 4 sets of towels (with logo)
- 1 clock with glossy brass case
- 1 barometer with glossy brass case
- 4 floating key-rings
- 1 bag (with logo) for storing the manuals
- 1 remote control holder (with logo)
- 1 bag for holding the shower tube
- 1 routine maintenance kit for steel
.gif)
.gif)
.jpg)
.gif)
.gif)
.gif)
.jpg)
.gif)
.gif)
.gif)
.gif)
.gif)
.gif)
.gif)
.gif)
