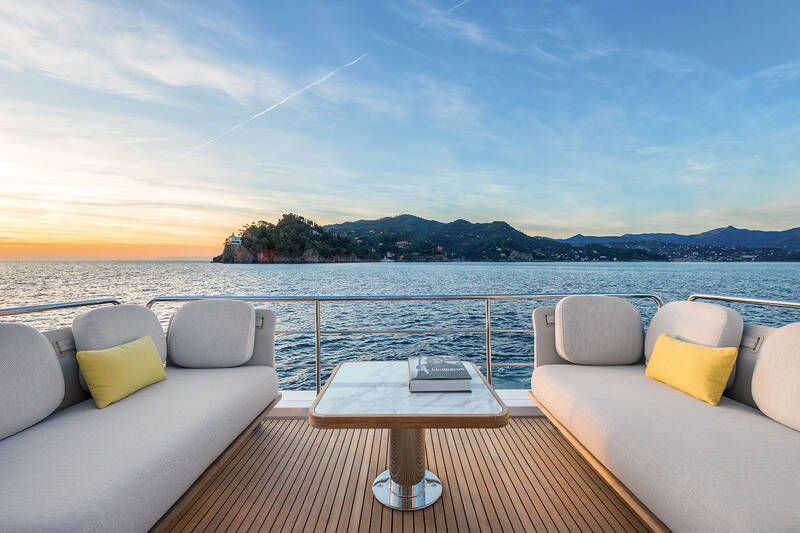

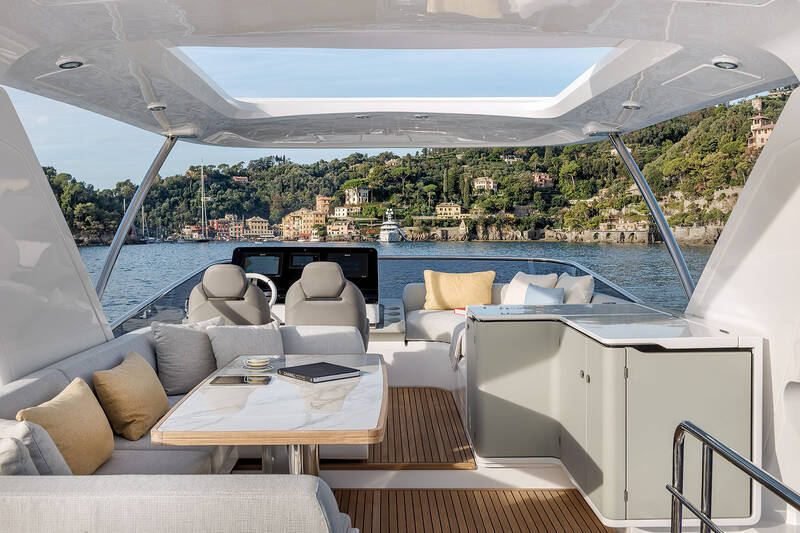

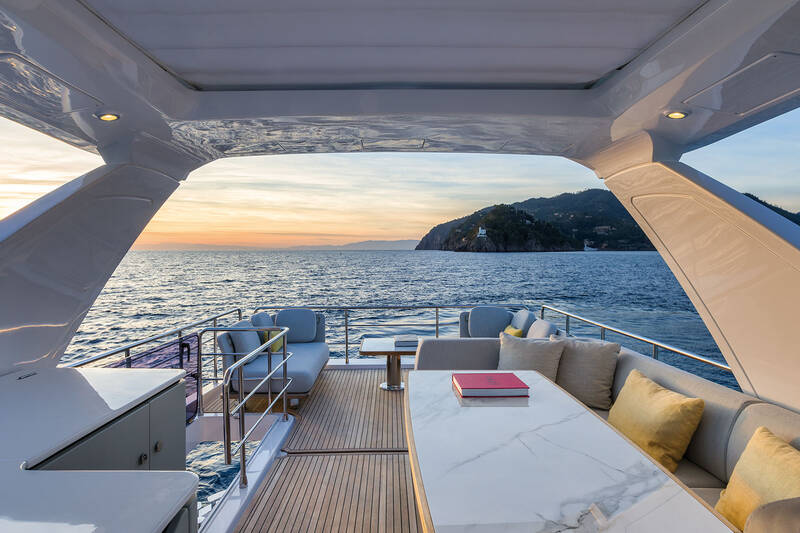

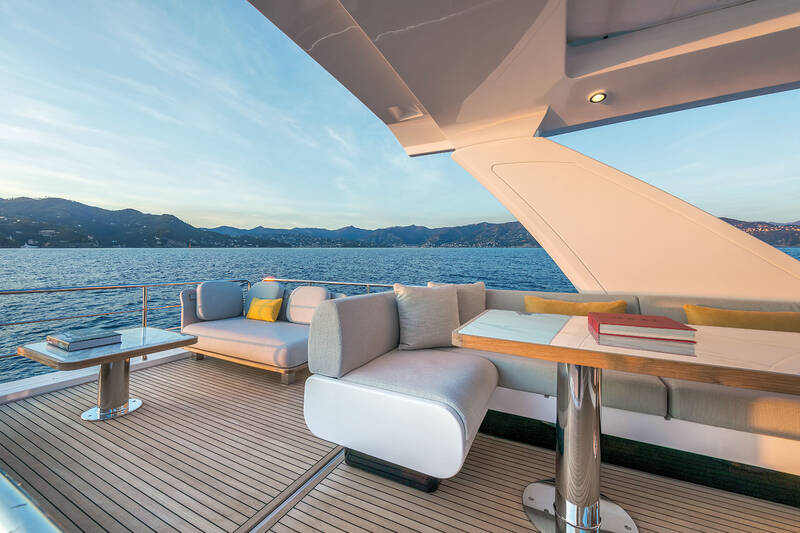

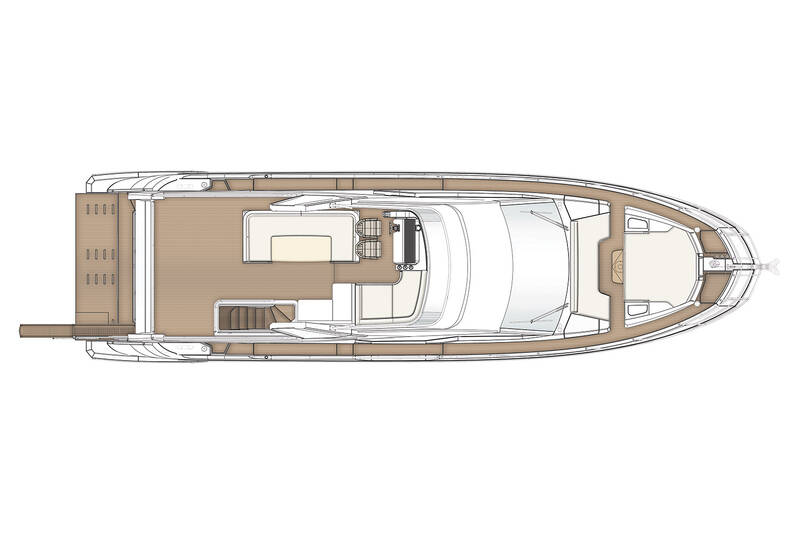

Flybridge
- Access via flybridge ladder in GRP, with teak steps
- Anti-slip treatment on flybridge flooring
- Aluminum hatchway (hinged opening in plex)
- Front flybridge screen in smokey Plexiglas and stainless steel
- Helm seat with pedestal and hight and horizontal adjustment
- "C"-shaped sofa for 6 people on port side, with teak table
- Sunbed area, bow starboard side
- GRP roll bar with blind windows on the external sides
- Stainless steel handrails

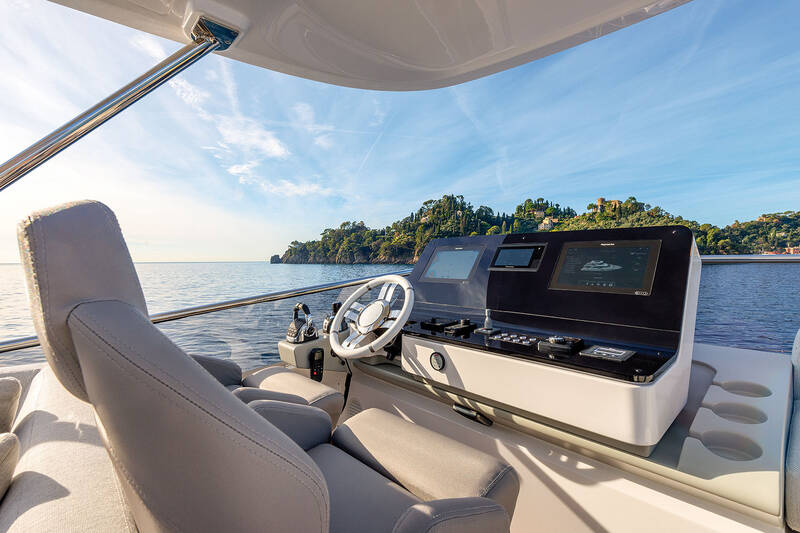

- Stainless steel steering wheel painted white, and height-adjustable steering system
- The wheelhouse equipment includes:
- - Raymarine Bronze Package
- - Engine display
- - Thruster control
- - Rudder
- - Chain meter counter
- - Engine levers
- - Panel with main control switches
- - VHF
- "L" shaped cabinet, starboard side, with barbecue and fridge

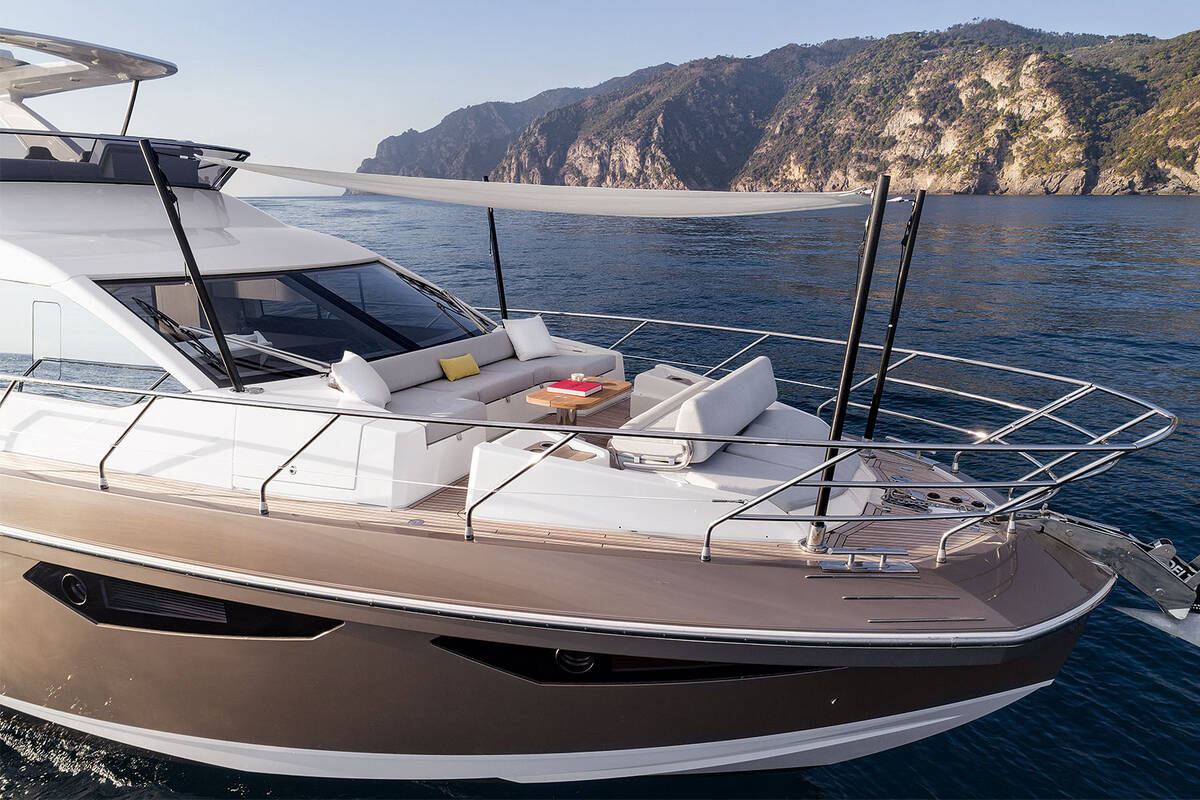

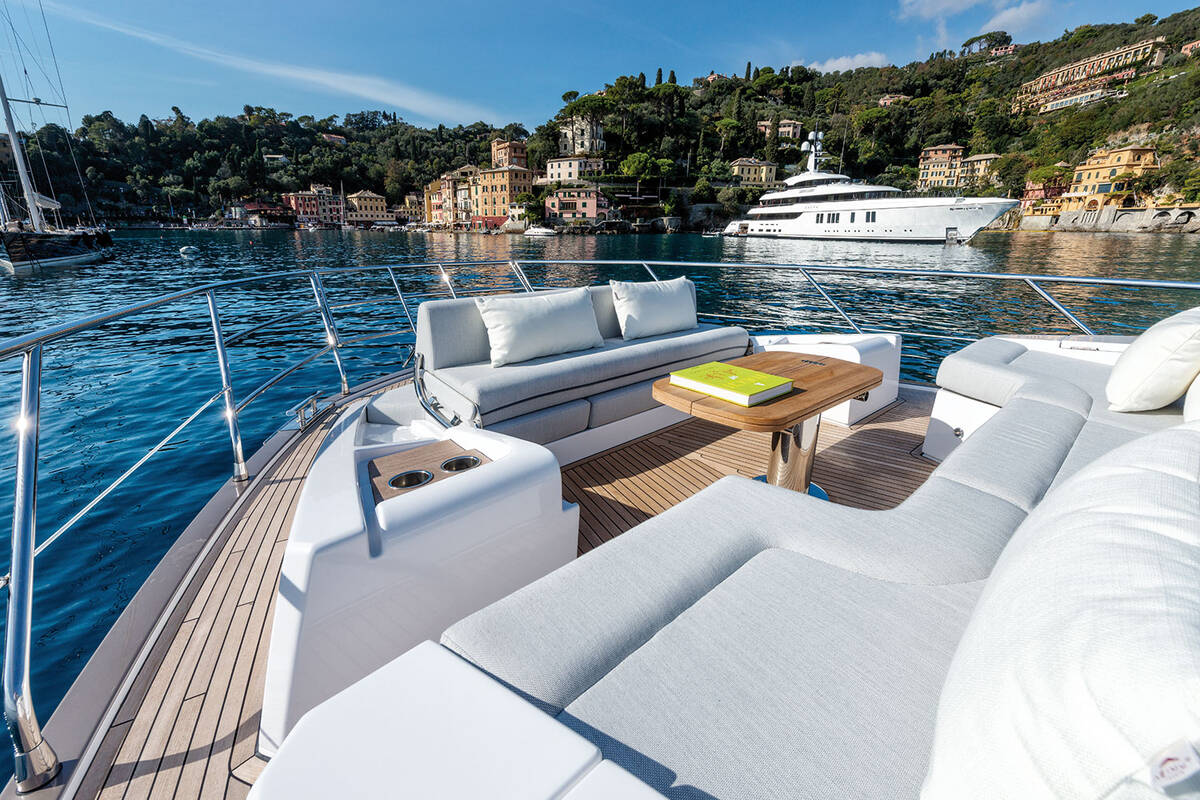

Bow / walk arounds
- Anchor chain housing
- 32 kg anchor with 75 meters of chain, diam. 10 mm, on forward bow roller
- 2000 W, 24 V winch with 10 mm gipsy
- Pulpit
- 2 bow cleats
- 2 electric windscreen wiper and washer
- PVC rub-rail with knurled stainless steel section
- GRP walk arounds with non-slip treatment
- Anchor locker
- Flat windows in toughened glass in the GRP (mirror finish)
- Seating area with cushions
- 2 midship cleats
- Navigation lights
- Side wording
- 2 refueling plugs with protection cover
- 1 fresh water filling on starboard side (anchor locker area)
- 1 black water outlet on port side
- Side hatches
- Bow lockers

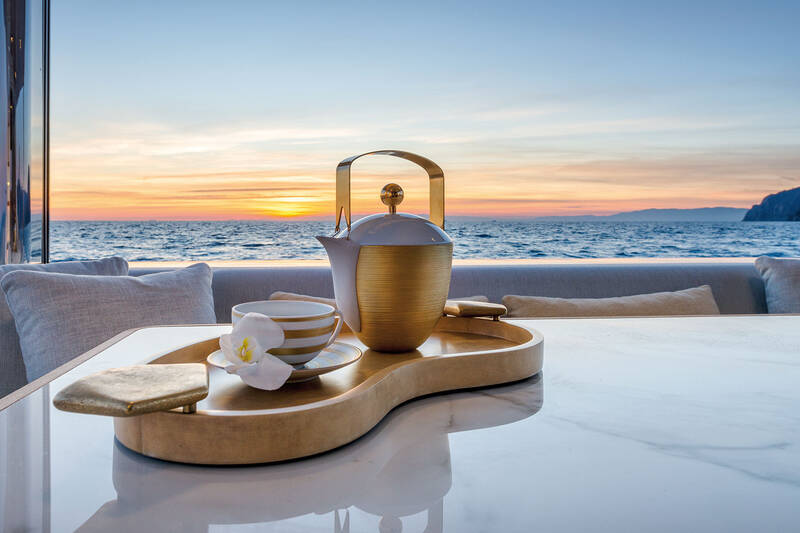

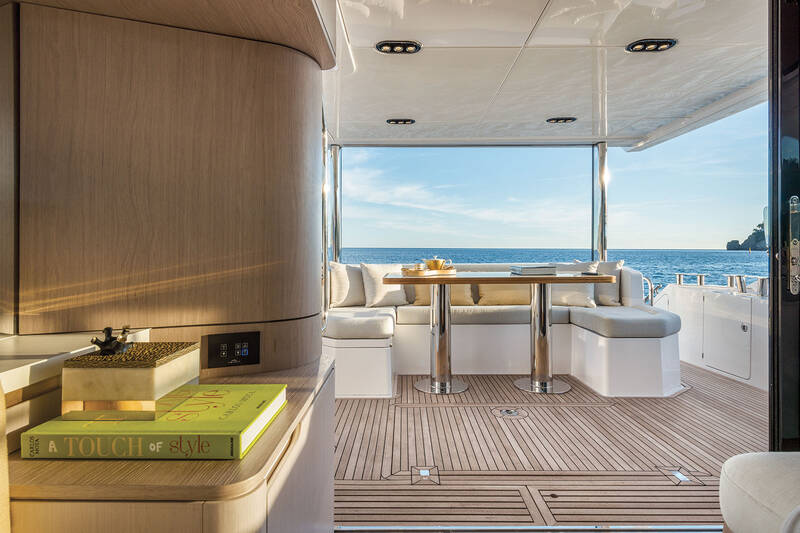

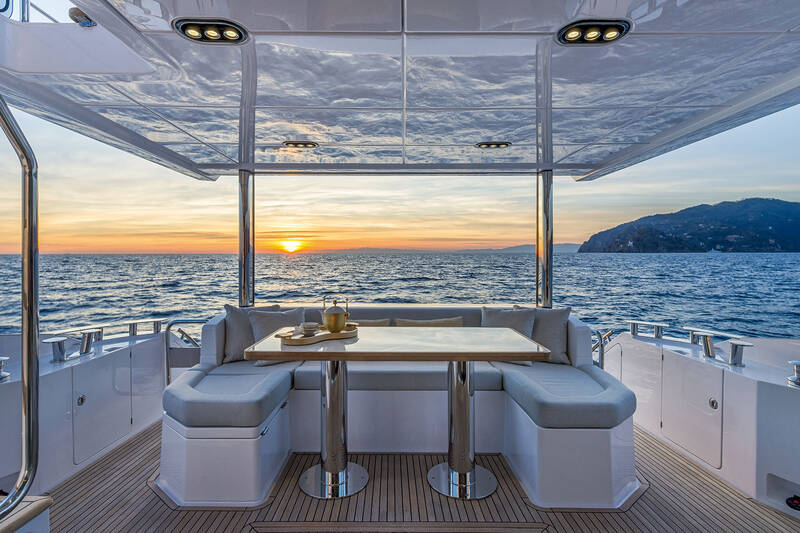

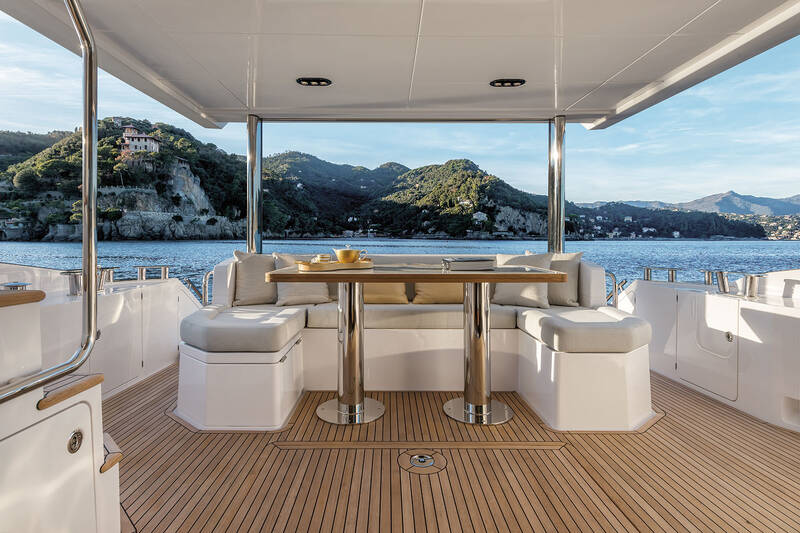

Cockpit and platform
- Integrated stainless steel aft chocks
- 2 stern cleats
- Saloon access door in black-painted stainless steel and tempered glass, with three panels
- Crew cabin access door (OPT) from the transom
- Swimming ladder in stainless steel and teak that can be opened under the hatch
- Shore power socket(s)
- Shower
- Cockpit in teak
- Teak platform
- Cockpit bench lockers
- Cockpit lights with dimmer
- Locker with access from hatch on platform.
- Platform / tenderlift, maximum net capacity of tenderlift 390 kg with asymmetrical load (gross capacity 850 kg ) Recommended tender: Pirelli J33

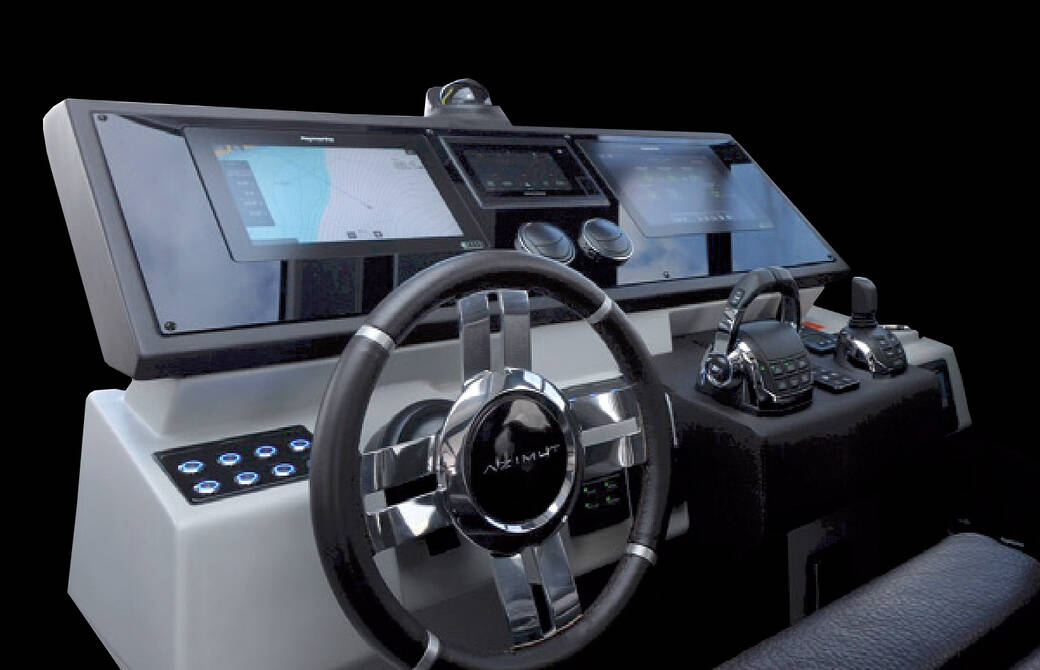

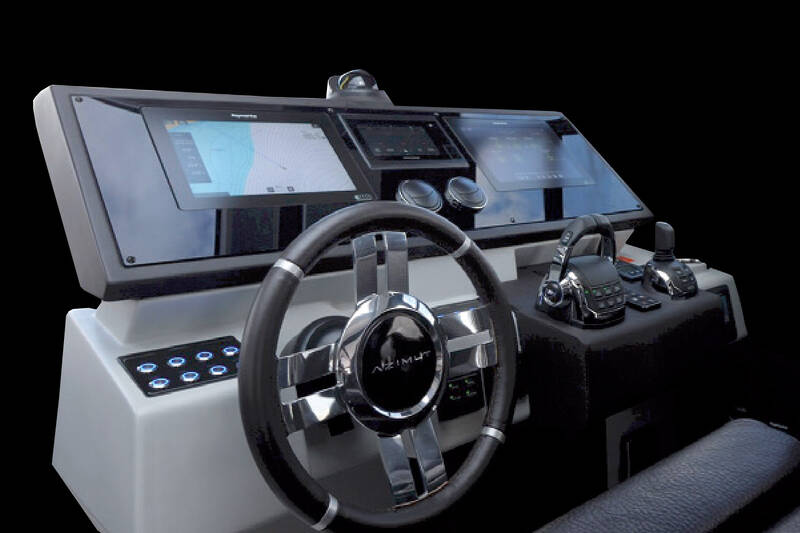

Wheelhouse
- Adjustable helm seat for 1 person
- Height-adjustable steering system
- Electrically openable wheelhouse window
- The wheelhouse equipment includes:
- - Raymarine Bronze Package
- - Compass
- - Engine display
- - Engine starting buttons
- - Thruster control
- - Rudder
- - Engine levers
- - Panel with main control switches
- - VHF

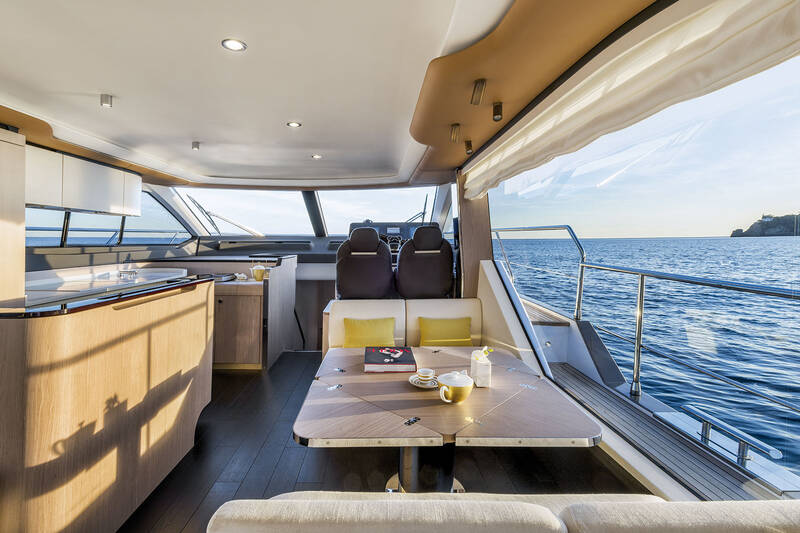

Saloon / Dinette / Galley

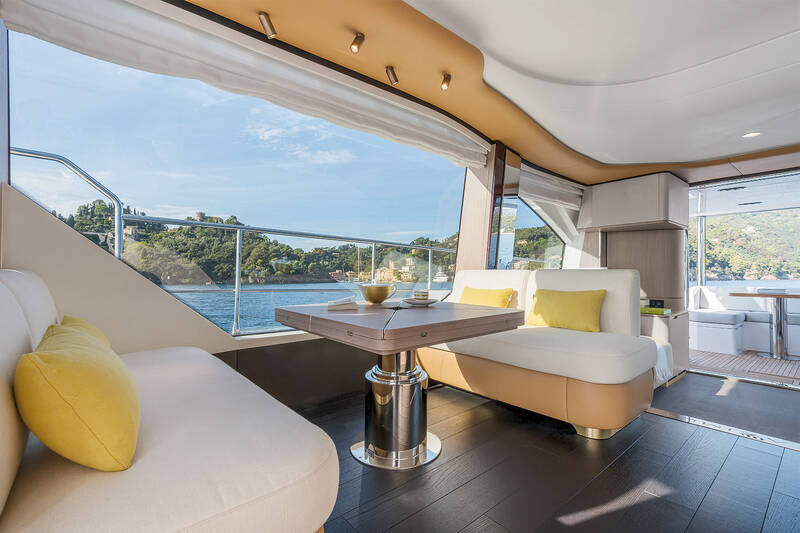

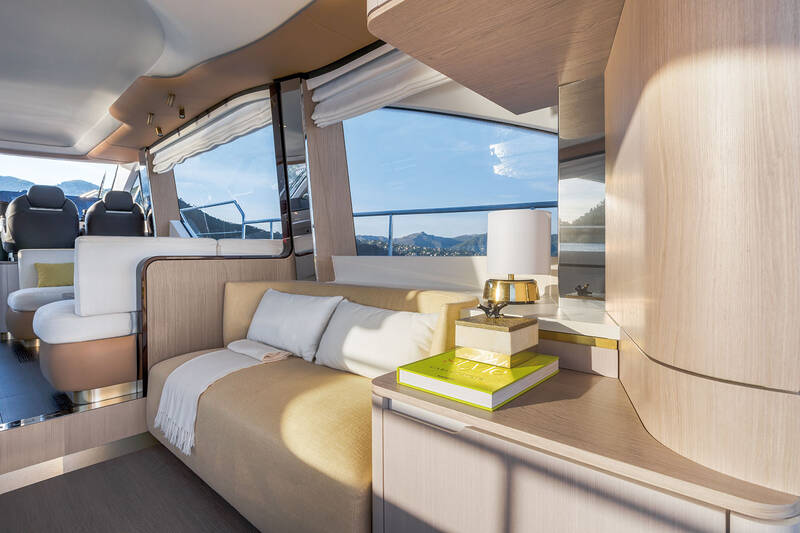

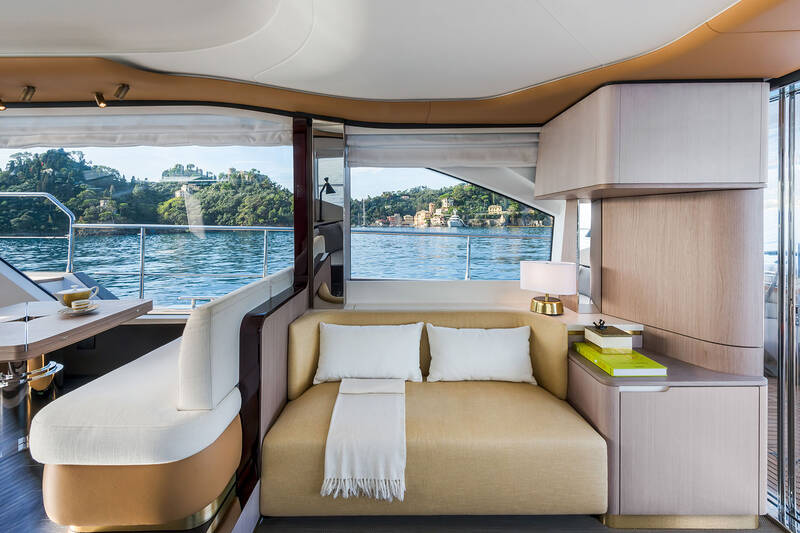

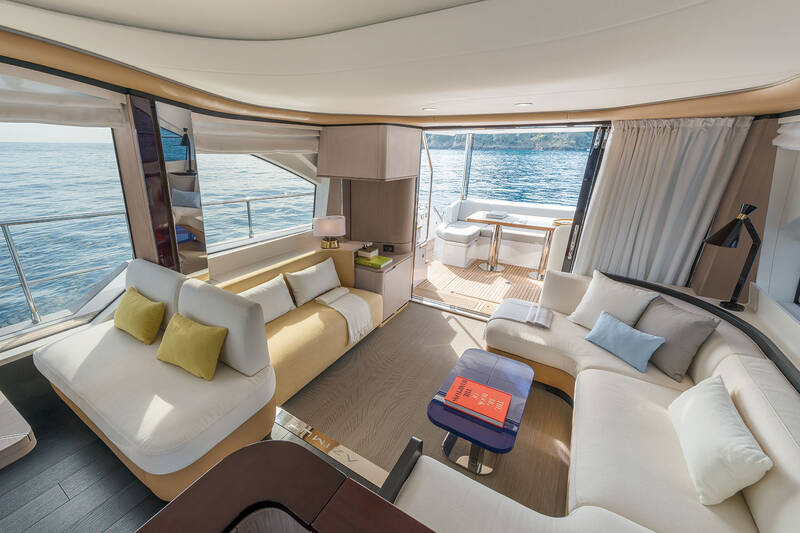

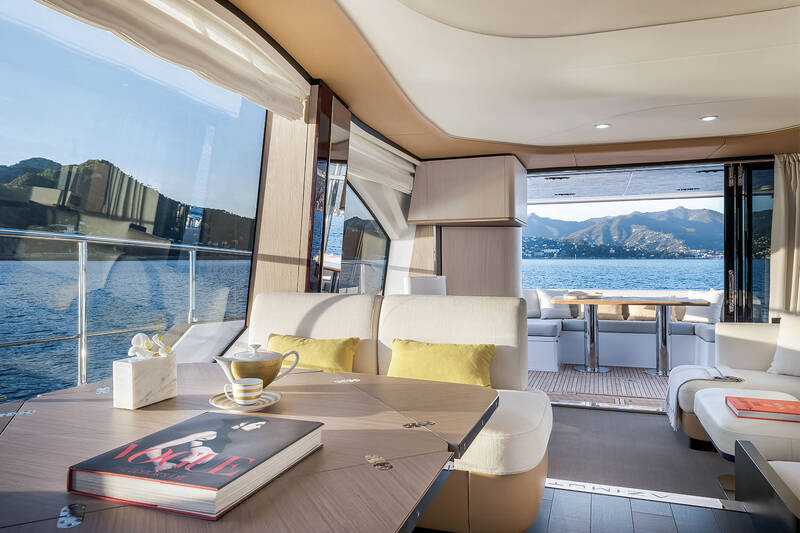

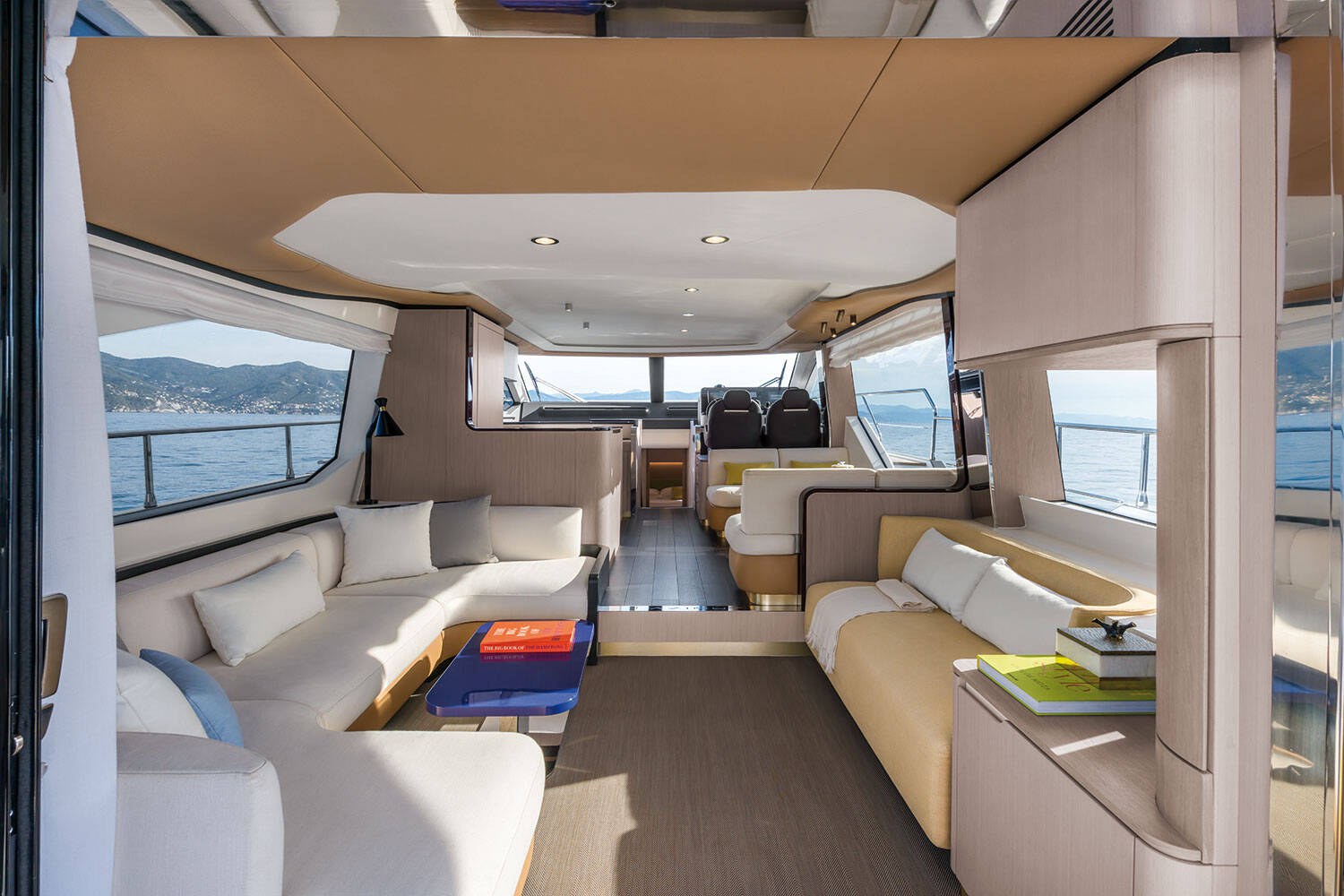

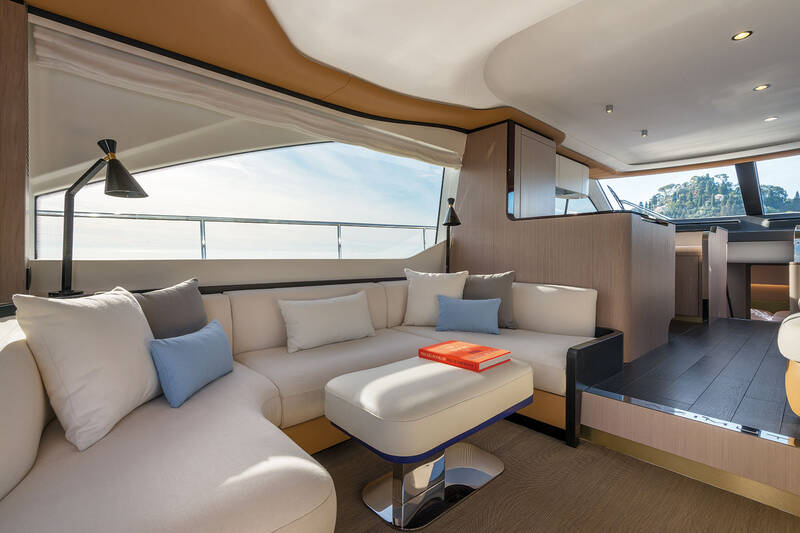

Saloon
- Sofa for 6 people on the port side
- Carpet
- LED lighting
- 2-seater sofa on starboard side
- Saloon door curtain in fabric
- Roman-type curtains in fabric
- Radio CD with remote control and two loudspeakers
- Provision for TV system
Dinette
- Dining zone with 2 opposed sofas
- Carpet
- LED lighting
- Table with fixed top (from 426)

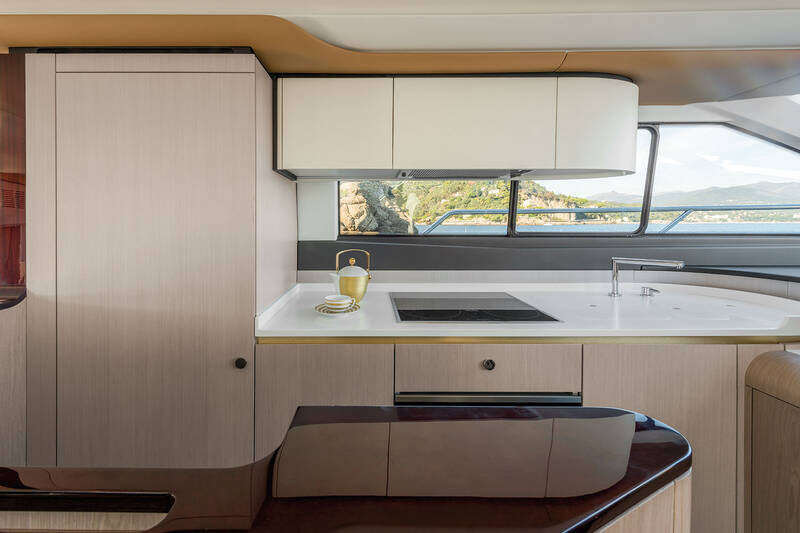

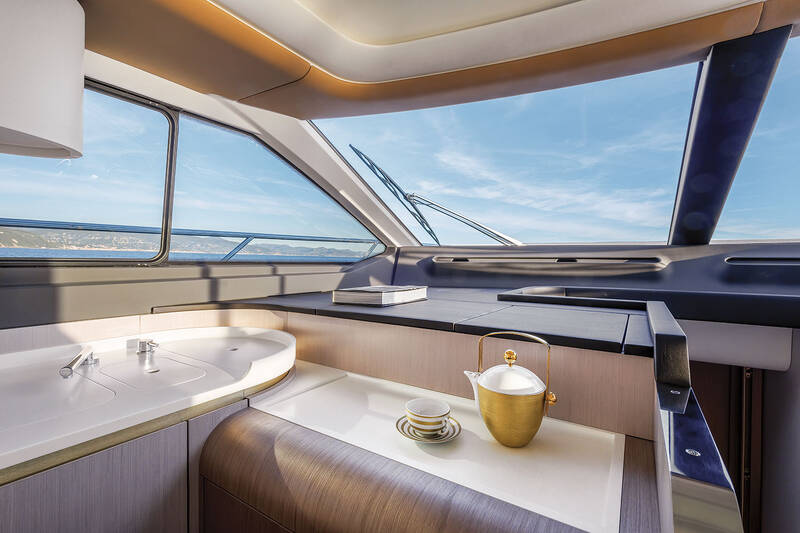

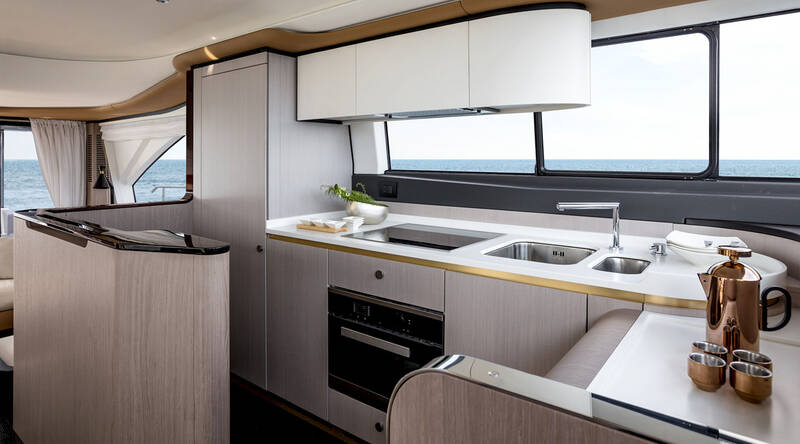

Galley
- Ceramic glass 4-hob range, 50/60 Hz
- Microwave oven + grill (20-liter capacity)
- Avonite worktop
- Hood above the range
- 185-liter refrigerator, 44-liter freezer
- Wooden flooring

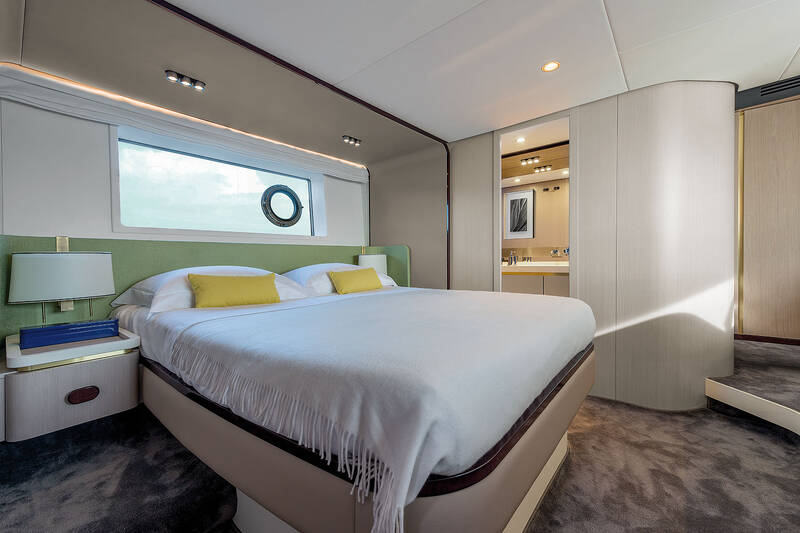

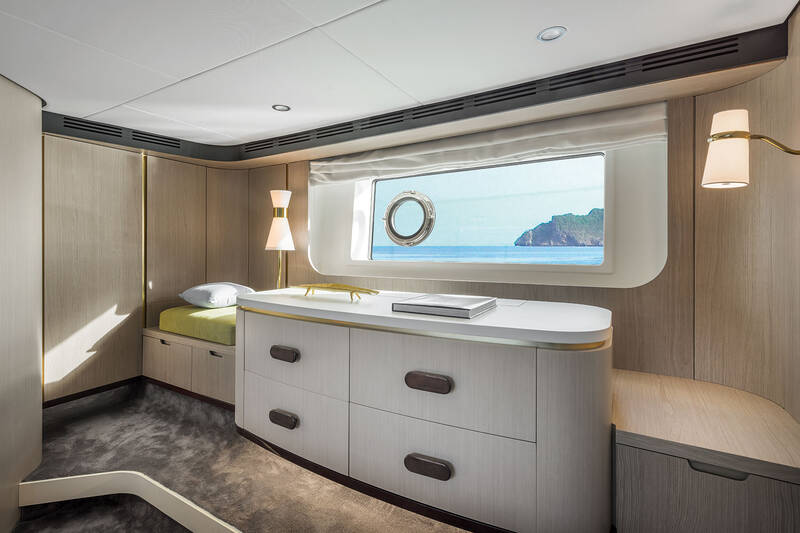

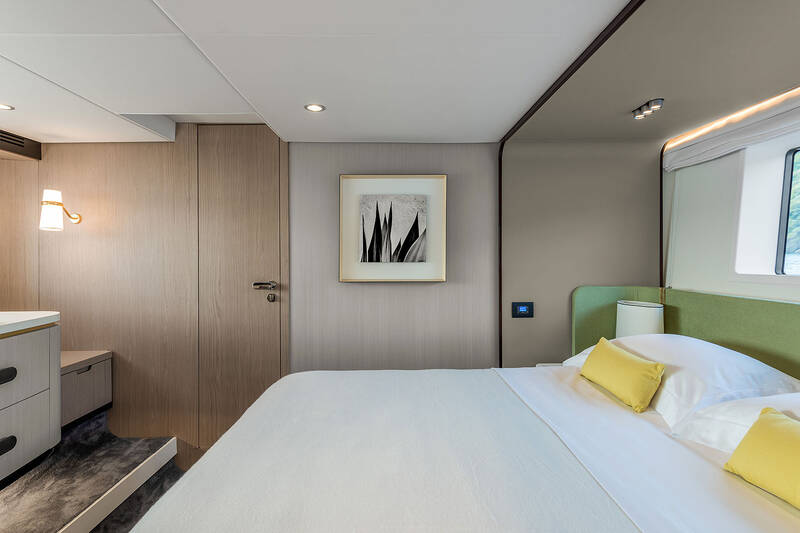

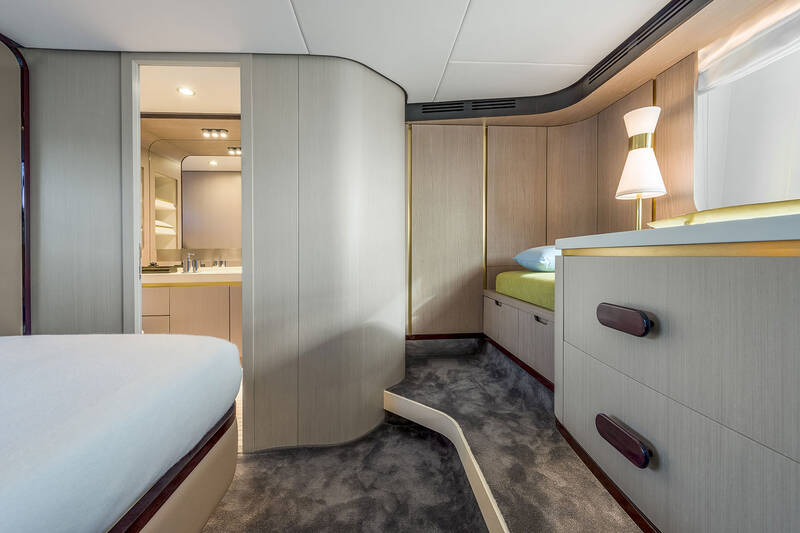

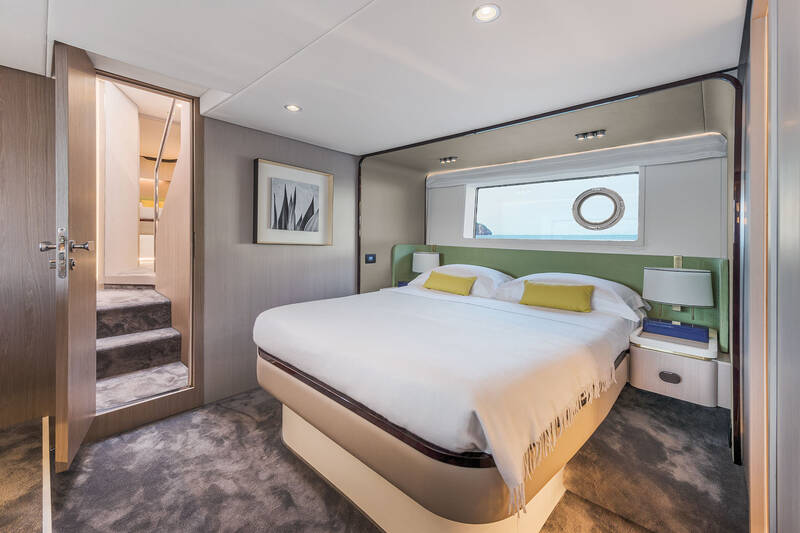

Owner's cabin
- Located midship
- Double bed with locker accessed from above
- Mattress, pillows and bedspread
- Chest of drawers
- Carpet
- Wooden Venetian blinds
- Doors and frames in wood essence
- Direct access to owner's head
- Reading lights on headboard
- Suitable for TV installation
- Large hull windows with built-in portlight

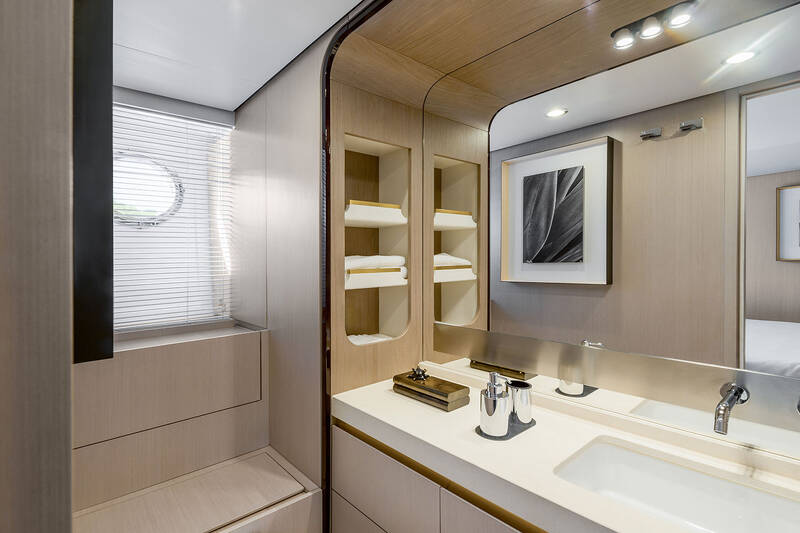

Owner's head
- Access from owner's cabin
- Separate shower
- Shower column with soap dish and mixer taps
- Washbasin with top
- Synthetic teak floor
- Air extractor
- TECMA toilet
- Wooden Venetian blinds
- Head accessories
- Wall unit above washbasin with mirror
- Round portlight
- Large storage area behind toilet

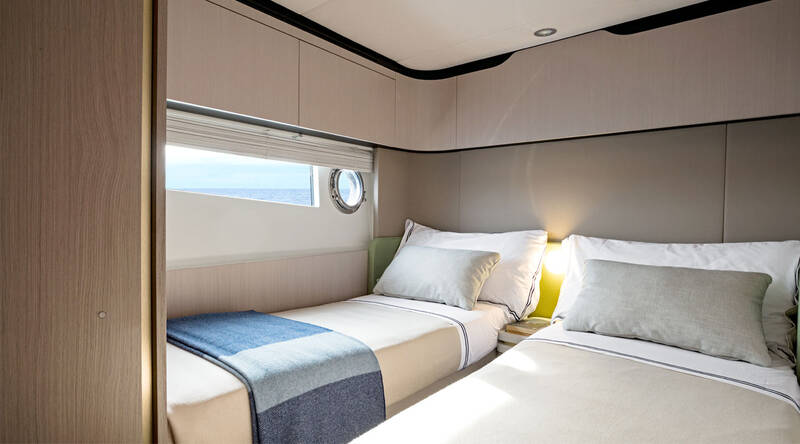

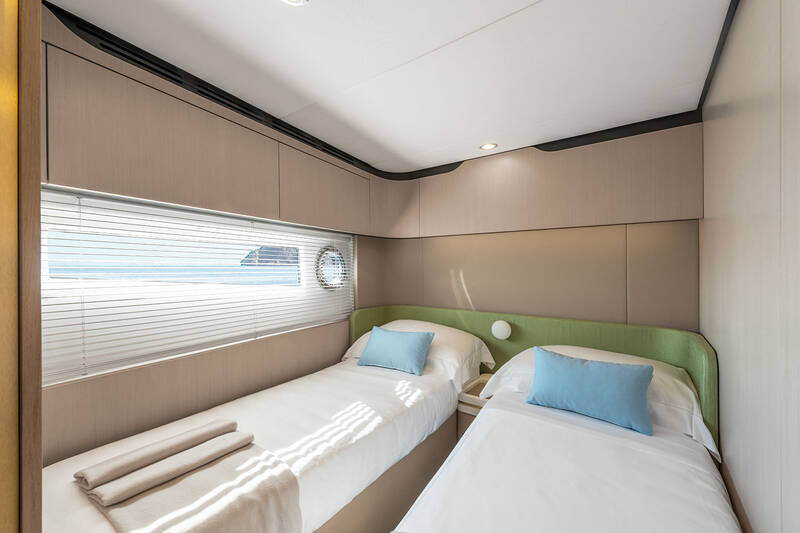

Guest cabin
- Located on starboard side
- Fixed single beds
- Central bedside table
- Wardrobe on bulwark
- Carpet
- Wooden Venetian blinds
- Fix window with openable round portlight
- Reading light
- Doors and frames in wood essence
- Mirror inside the wardrobe
Guest / daily head
- Access from corridor
- Shower with panel
- Shower column and mixer taps
- Washbasin with top
- Round portlight
- Synthetic teak floor
- TECMA toilet
- Roller-type curtains
- Head accessories
- Wall unit above washbasin with mirror

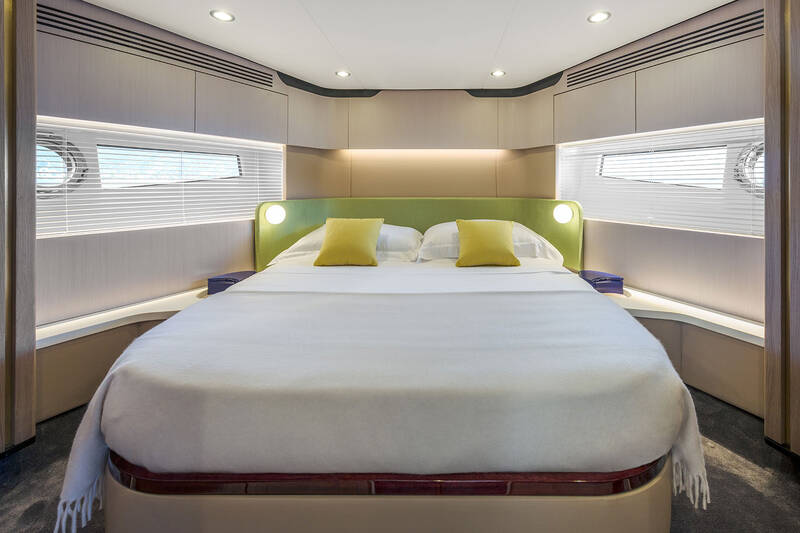

VIP cabin
- Located at the bow, it is accessed via the central corridor
- Openable double bed
- Mattress, pillows and bedspread
- Wall units
- One wardrobe per side
- Suitable for TV installation
- Panoramic windows with openable portlights
- Wooden Venetian blinds
- Hatchway
- Reading lights
- Doors and frames in wood essence
- Direct access to head
VIP head
- Access from VIP cabin
- Shower with panel
- Shower column and mixer taps
- Washbasin with top
- Round portlight
- Synthetic teak floor
- TECMA toilet
- Roller-type curtains
- Head accessories
- Wall unit above washbasin with mirror
Corridor
- Fabric wall upholstery
- Carpeted floor
- LED lighting
Crew room (OPT)
Crew cabin
- Access from transom, via manually moved door
- 1 single bed (version with two beds instead of aft storage is available)
- Mattresses, pillows and bedspreads
- Cabinet with electric panel
- Wooden Venetian blinds
- LED spotlights
- Laminated furniture
- Crew head
- TECMA toilet
- Sink
- Mixer tap with pull-out shower head
- Head accessories
- Shower curtain
- Shower
- Mirror
Electric system
Voltage levels on board:
- 220V AC systems, 50 Hz
- 24V DC systems power supply
- 24V DC engine systems power supply
- 24V DC from battery sets
- 12V DC from voltage reducer
- specific power supply for the VHF
Galvanic current insulation
- zinc anodes
Generator
- 7 KW 50Hz GENERATOR
Shore power sockets
- 1 shore power socket 220V 50A
Batteries
- 6 batteries 90Ah for service utilities 24V 270Ah
- 6 batteries 90Ah for engine start-up 24V 270Ah
- 1 battery 70Ah for generator 12V
- All the sets are controlled via battery cut-out switches
Battery charging
- 1 electronic battery charger 24V 80A for start-up and service sets
- 1 electronic battery charger 12V 10A for generator
Electric panels
- Two main DC boards, one in the engine room and the other in the saloon.
- Two AC boards, one in the saloon and the other in the crew cabin.
- Emergency panel in cockpit (with boat cut-off controls).
- Power circuit breakers with fuses for protecting the utilities.
Lighting
- LED spotlights
Electronic instruments
For a detailed list of alternative/additional equipment available, please refer to the Optionals price list
The electronics are constantly being up-dated, therefore the indicated configuration may be subject to changes.
Bilge system
- 3 automatic motor pumps 24V (flow rate: 224 l/min) with possibility of manual control. Each pump has a double high-level switch connected to an optical/acoustic alarm in the wheelhouse located in crew cabin, engine room, owner's cabin.
- 2 manual pumps (flow rate: 49 l/min) which suck from three watertight compartments, through a flow diverter
- - 1 located in the cockpit, it sucks from crew cabin and engine room
- - 1 located in the crew cabin
- Emergency system for engine room bilge drainage via derivation from engine cooling pump (flow rate: 334 l/min)
Fire extinguishing system
- Controlled from emergency panel in cockpit
- Engine battery cut-out
- Closure of fuel delivery solenoid valves
- Extractor stop
- Extinguisher discharge
- 2 powder extinguishers, 12kg, with diffuser nozzles above the engines and marine gears
Fuel system
- 2 aluminum tanks, 1400 l each
- Refueling plugs with cover
- 2 refueling plugs on walk arounds, and 2 vents on bulwark
- Tanks linked by a 1" coupling, and manual check valves
- Optical level gage on starboard tank
- Float switch on port tank
- Fuel delivery shut-off via 1" 24V solenoid valves with remote control, or local manual valves
- Water/diesel separator filters for engines (single type)
- Diesel filter for generator (single type)
Fresh water system
- 1 750-liter polypropylene tank
- 1 water refill plug on deck walk around, starboard side, and 1 vent on port side bulwark
- Pressure pump
- 1 60-liter water heater with 220V (or 110V) electric heating, located in the crew cabin
- System that can be isolated by ACORN manifolds
- Hot and cold water line in the galley and all the heads, via single control mixer taps
- Cold water line in engine room, on flybridge, and on stern platform
Black water system
- TECMA toilet
- Toilet flushing system with fresh water
- Black water outlets
- Macerator pump
- Discharge into tank
- 1 175-liter polyethylene tank
- Tank drainage also via suction point on deck walk around
Gray water system
- 1 175-liter polyethylene tank
- Head discharge into tank
- Galley discharge into tank
- 24 V loading pump, of the membrane type with control in the wheelhouse
Engine gas exhaust system
- 2 engine underwater exhausts with GRP structural ducts
- Minimum bypass on bulwark
- Stainless steel manifolds (insulated)
Seawater system
- 2 engine seawater intakes of 3", with shut-off valve and metal mesh filter
- 2 seawater intakes, 1". for auxiliary services (generator and A/C), with shut-off valve and metal mesh filter
Ventilation/extraction
- 2 air intakes with separator filters
- 2 24V extractors
Engine room
- Access from cockpit
- Engines assembled on a silent block
- Sound-proofing
Other systems
- 1 electric steering system

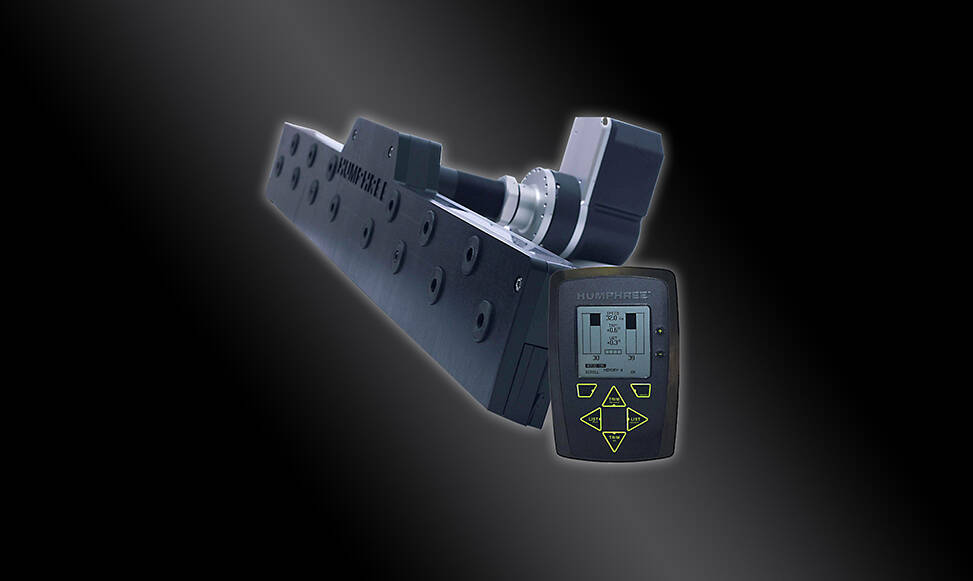

- 2 24V automatic trim controllers (intruder)
Air conditioning system (OPT)
- CONDARIA type- 220V-50Hz
- World version 72,000 BTU (+ 6200 BTU for crew cabin, OPT):
- - 1 72,000 BTU compressor (with inverter)
Equipment
- 1 telescopic boat hook
- 5 anchor lines
- 24 m fender lines
- 1 anchor chain stopper
- 8 fenders
- 8 black fender covers
- 1 Owner's Manual
- 1 AZIMUT document holder
- 1 wooden model of the boat
- 1 AZIMUT warranty service booklet
- 1 stainless steel cutlery service
- 1 set of china plates
- 1 set of glasses
- 1 set of stainless steel cooking pans
- 4 sets of towels (with logo)
- 1 clock with glossy brass case
- 1 barometer with glossy brass case
- 4 floating key-rings
- 1 bag (with logo)for storing the manuals
- 1 remote control holder(with logo)
- 1 bag for holding the shower tube
- 1 routine maintenance kit for steel
